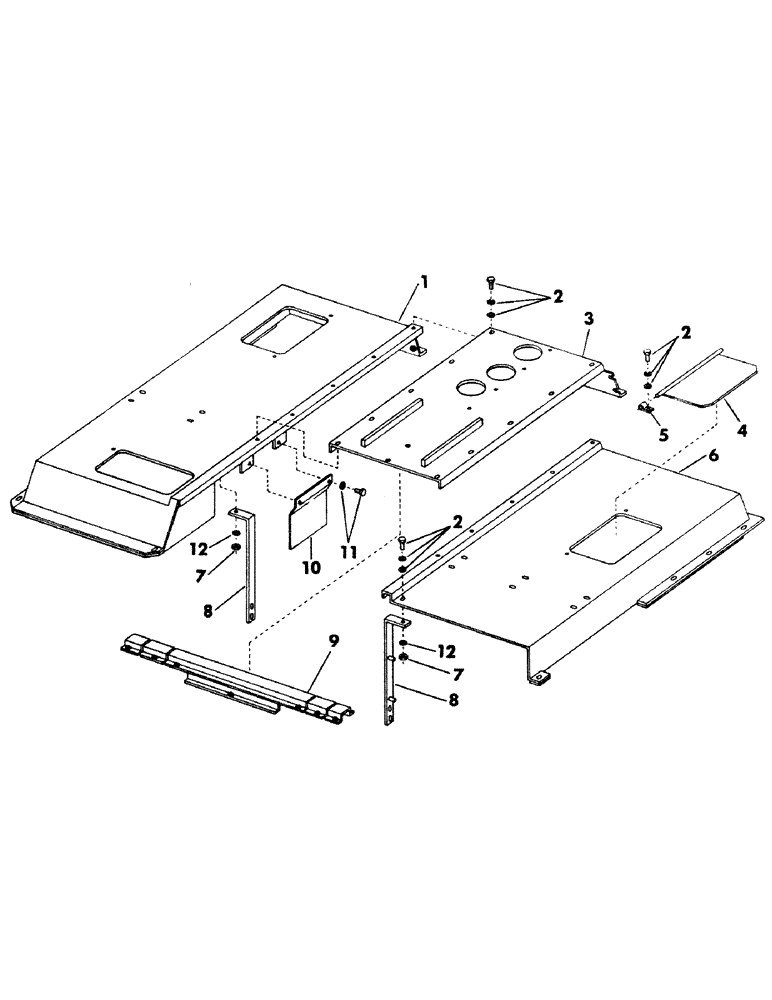

Запчасти Case 40BLC (102) - TURNTABLE SHROUDING ENGINE COVERS, (USED WITH SPARK ARRESTOR MUFFLERS) (04) - UNDERCARRIAGE

1

S606704

SHROUD, cover - (Right hand) - (Supersedes S603149)

1шт.

Change in listing

1шт.

2

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

45шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

45шт.

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2"

45шт.

3

S506468

SHROUD, cover - (Center) - (Used on units with serial number 450 thru 759)

1шт.

S508722

SHROUD, cover - (Center) - (Used on units with serial number 760 and after)

1шт.

Change in listing

1шт.

4

S221031

COVER ASSEMBLY

4шт.

5

S15543

CLAMP,7/16", Insul, 1/2" Bolt

8шт.

6

S603150

SHROUD, cover - (Left hand)

1шт.

7

131-70

NUT,1/2"-13, GB

NUT, self locking -1/2" NC

4шт.

8

S221033

BRACKET ASSEMBLY

2шт.

9

S221033

SUPPORT ASSEMBLY

1шт.

10

S221035

BRACKET - (Replaces original on Detroit Diesel 4-71 engine)

1шт.

11

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

2шт.

195-105

WASHER,7/16"

flat - 1/2"

2шт.

12

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2"

4шт.
