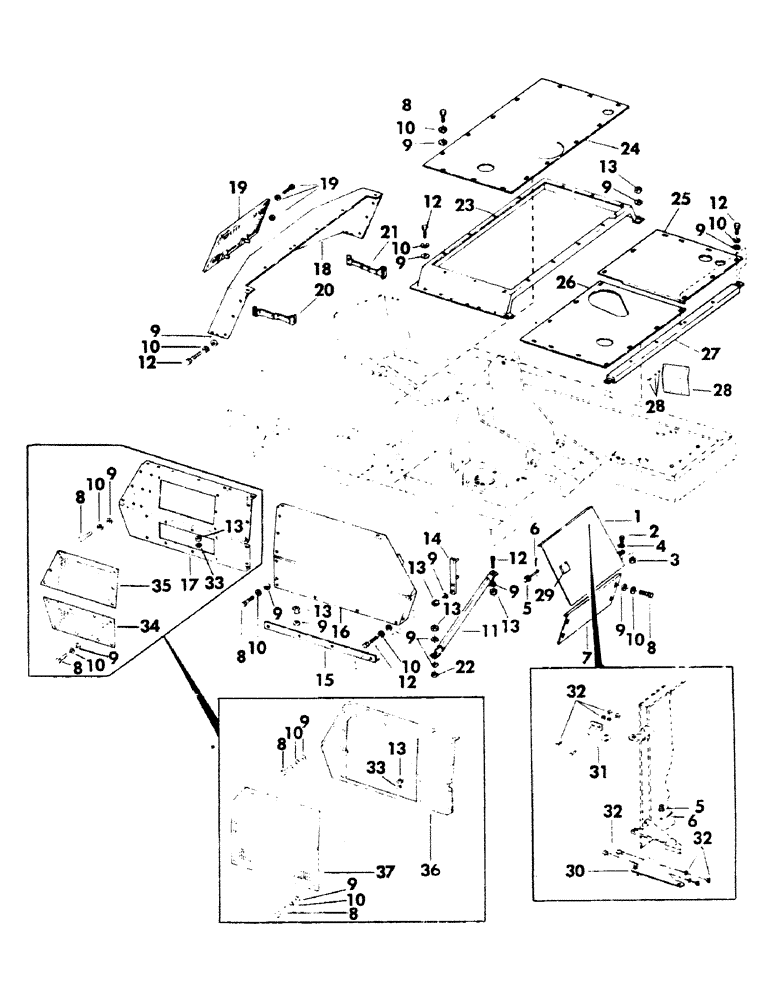

Запчасти Case 40BLC (098) - TURNTABLE SHROUDING AND ATTACHING PARTS, (TOP, REAR AND RIGHT SIDE) (04) - UNDERCARRIAGE

1

S505883

DOOR, front

1шт.

2

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

CPSW - 3/8" NC x 1-1/2" gr 5

2шт.

3

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

4

195-525

WASHER,3/8", SAE

flat - 3/8"

2шт.

5

S217887

PIN

2шт.

6

A70250

PIN

hair

2шт.

7

S219775

SHEET

front

1шт.

8

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

9

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2"

1шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

11

S219774

BRACE

2шт.

12

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

13

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

1шт.

14

S220373

BRACKET

1шт.

15

S219895

ANGLE

1шт.

16

S602548

SHROUD, side panel - (Right front)

1шт.

17

S602550

SHROUD

side panel - (Right rear) - (Used on units with serial number 450 thru 6275055 and 6275057 thru 6275062)

1шт.

18

S602552

SHROUD, rear panel

1шт.

19

S505863

DOOR, rear

1шт.

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

195-103

WASHER,5/16"

flat - 3/8"

2шт.

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

20

S219460

BRACE

right hand

1шт.

21

S219473

BRACE

left hand

1шт.

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CPSW - 1/2" NC x 3/4" gr 5 - (Not illustrated)

6шт.

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4"

10шт.

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Not Illustrated Hex, 1/4"-20 x 1", G5

4шт.

195-516

WASHER,#12

flat - 1/4"

4шт.

195-518

WASHER,1/4", SAE

flat - 1/4"

2шт.

22

195-45

WASHER,3/4"

1шт.

23

S602568

SHROUD, engine - (Used on Case 504BD diesel engine)

1шт.

24

S602569

COVER, engine - (Used on Case 504BD diesel engine) - (Used on units with serial number 450 thru 759)

1шт.

S607402

COVER, engine - (Used on Case 504BD diesel engine) - (Used on units with serial number 760 and after)

1шт.

25

S505864

COVER, engine - (Used on Detroit Diesel 4-71 engine)

1шт.

26

S505865

COVER, engine - (Used on Detroit Diesel 4-71 engine)

1шт.

27

S505861

CHANNEL

1шт.

28

S219891

BRACKET

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2"

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

29

S219346

LATCH

door

1шт.

30

S221453

BRACKET

hinge

1шт.

31

S221455

BRACKET

hinge

1шт.

32

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

195-103

WASHER,5/16"

flat - 3/8"

4шт.

131-70

NUT,1/2"-13, GB

NUT, self locking - 3/8" NC

4шт.

33

S94090

SPACER

1шт.

34

S505834

GRILL, side shroud - (Right rear) - (Bottom) - (Used on units with serial number 450 thru 6275055 and 6275057 thru 6275062)

1шт.

35

S505835

GRILL, side shroud - (Right rear) - (Top) - (Used on units with serial number 450 thru 6275055 and 6275057 thru 6275062)

1шт.

36

S608477

SHROUD, side - (Right rear) - (Used on units with serial number 6275056 and 6275063 and after)

1шт.

37

S608476

GRILL, side shroud - (Right rear) - (Used on units with serial number 6275056 and 6275063 and after)

1шт.
