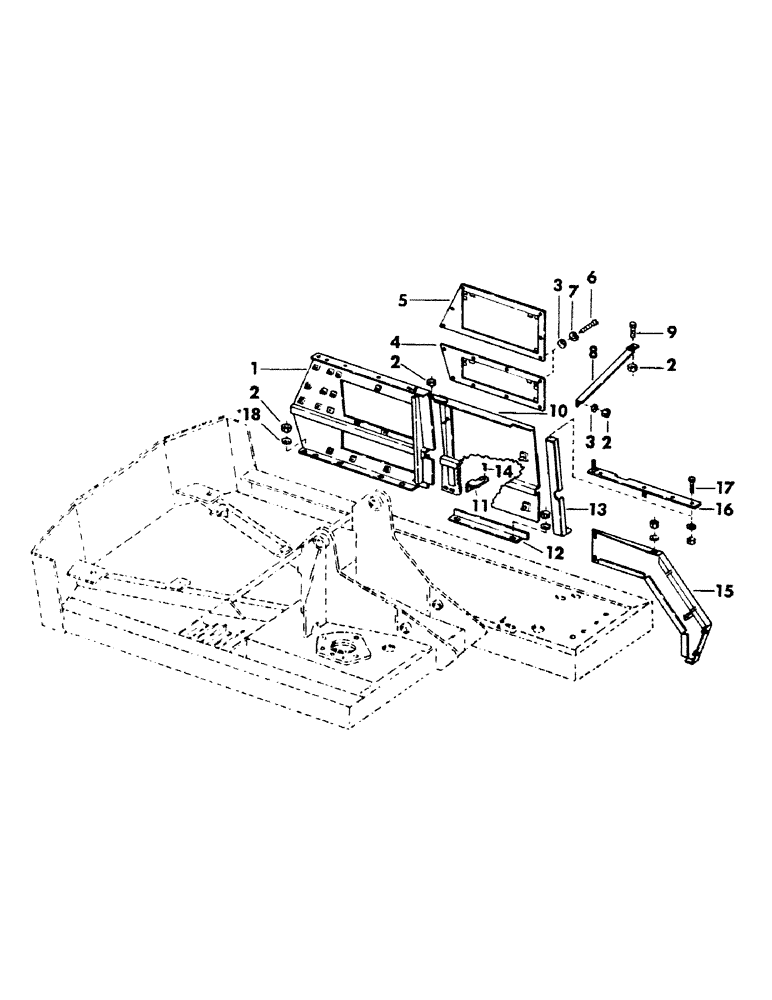

Запчасти Case 40BLC (096) - TURNTABLE SHROUDING AND ATTACHING PARTS, (LEFT SIDE) (04) - UNDERCARRIAGE

1

S602955

SHROUD, side - (Left rear)

1шт.

2

131-70

NUT,1/2"-13, GB

NUT, self locking -1/2"

1шт.

3

196-45

WASHER,1 1/32" x 2 1/4" x .259", HDN

flat - 1/2"

1шт.

4

S505834

GRILL, side shroud - (Left rear) - (Bottom)

1шт.

Change in listing

1шт.

5

S505835

GRILL, side shroud - (Left rear) - (Top)

1шт.

Change in listing

1шт.

6

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

8

S219733

BRACE

1шт.

9

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

10

S602954

DOOR, left side

1шт.

11

S507513

BRACKET

1шт.

12

S220568

ANGLE

1шт.

13

S220514

BRACE, door stop

1шт.

14

S217887

PIN

retaining

1шт.

15

S602549

SHROUD, door mounting - front

1шт.

16

S220521

BRACE

1шт.

17

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

18

S94090

SPACER

1шт.

Added listing

1шт.
