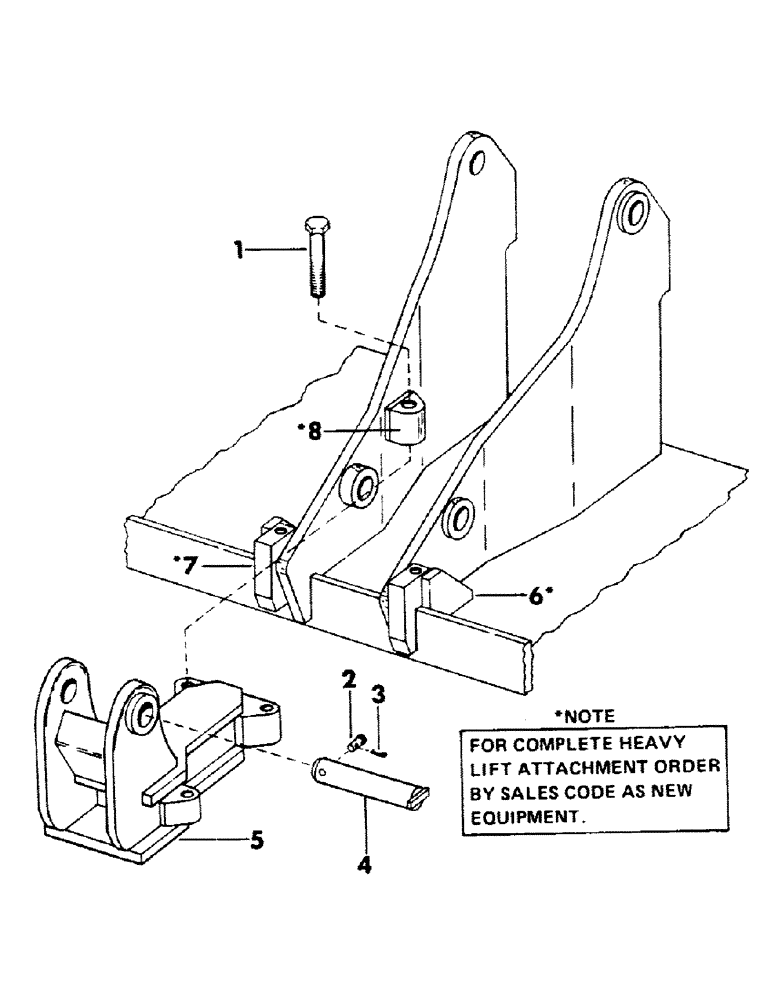

Запчасти Case 40BLC (083) - HEAVY LIFT ATTACHMENT (04) - UNDERCARRIAGE

1

26-2092

BOLT,Hex, 1-1/4" - 7 x 5-3/4", Gr 8

CPSW - 1-1/4" NC x 5-3/4" gr 8

4шт.

2

S10818

CLEVIS PIN

PIN, clevis - 1/2" x 4.266" grip length

1шт.

3

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

1шт.

4

S223986

PIN

- (Mounts base end of hoist cylinder)

1шт.

5

S506254

BRACKET

1шт.

6

S91721

REINFORCEMENT -, Serial Range: (Welds-unit)

2шт.

Added listing

1шт.

7

S91720

PLATE, tapped -, Serial Range: (Welds-unit)

2шт.

Added listing

1шт.

8

S91375

SUPPORT -, Serial Range: (Welds-unit)

2шт.

Added listing

1шт.
