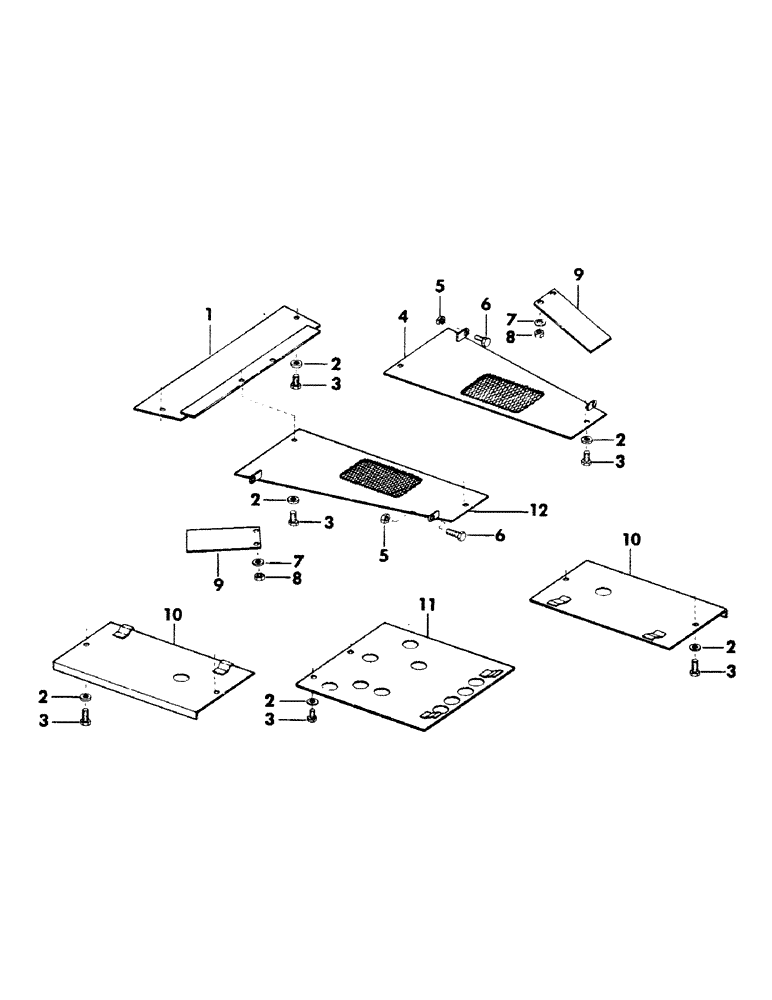

Запчасти Case 40BLC (067) - TURNTABLE GUARDS, (MOUNT TO UNDERSIDE OF TURNTABLE) (04) - UNDERCARRIAGE

1

S220854

GUARD, rear

1шт.

2

195-41

WASHER,5/8"

1шт.

3

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

(Mounts guards to underside of turntable) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

1шт.

4

S506389

GUARD, engine - (Left hand)

1шт.

5

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

6

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

CPSW - 5/8" NC x 2-3/4" gr 5

4шт.

7

195-104

WASHER,3/8"

flat - 7/16"

4шт.

8

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

4шт.

9

S94617

PLATE, rear side guard - (Quantity of 2 used on units with serial number 450 thru 6275055 and 6275057 thru 6275062 and quantity of 1 used on units with serial number 6275056 and 6275063 and after)

1шт.

Change in listing

1шт.

10

S220856

GUARD, front side

2шт.

11

S220858

GUARD - (Attaches under cab)

1шт.

12

S506390

GUARD, engine - (Right hand)

1шт.
