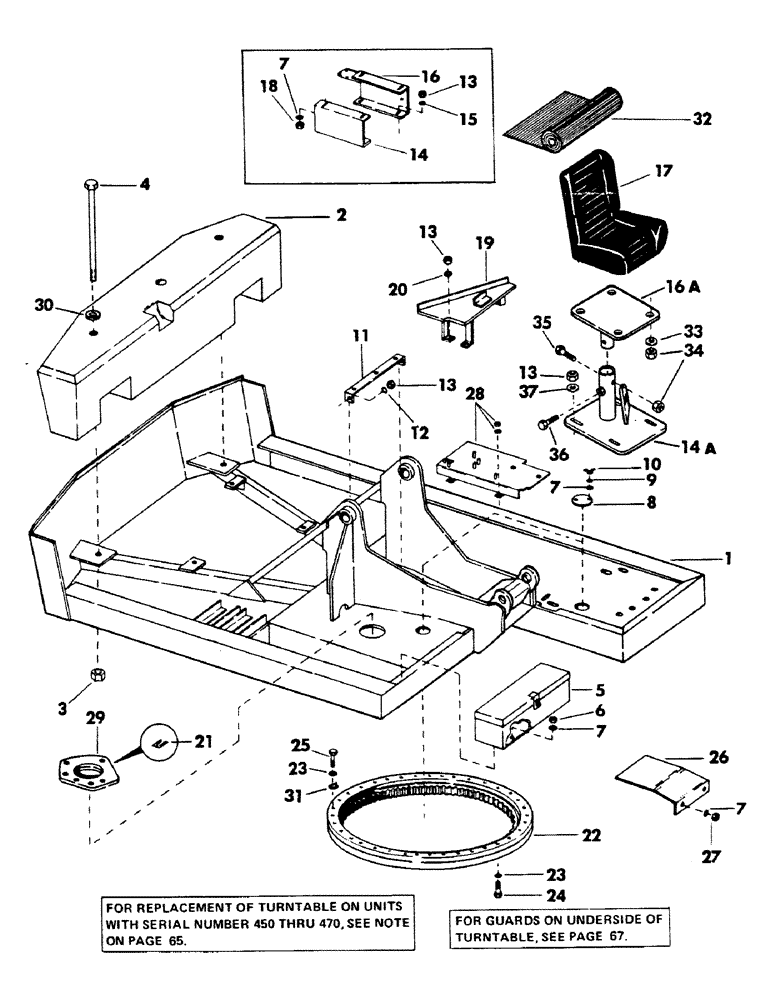

Справочник запчастей Case 40BLC (062) - TURNTABLE, BEARING, COUNTERWEIGHT AND ATTACHING PARTS (04) - UNDERCARRIAGE со схемами

1

S604773

ASSEMBLY

TURNTABLE - (Supersedes S952902) - (Used on units with serial number 450 thru 470)

1шт.

S604773

ASSEMBLY

TURNTABLE, machined - (Used on units with serial number 471 thru 759)

1шт.

S513104

ASSEMBLY

TURNTABLE, heavy lift - machined - (Used on units with serial number 760 and after) - (Supersedes S606628)

1шт.

Change in listing

1шт.

2

S603034

COUNTERWEIGHT - (Used on units with 16" and 20" Feller Buncher only)

1шт.

S602338

COUNTERWEIGHT - (Used on units with 24" Feller Buncher only)

1шт.

3

131-454

LOCK NUT,1 1/4"-7

NUT, self locking - 1-1/4" NC

2шт.

4

13-20264

CPSW - 1-1/4" NC x 16-1/2" gr 5 - (Used on units with 16" and 20" Feller Buncher only) - (Used on earlier units only)

2шт.

Change in listing

1шт.

13-20272

CPSW - 1-1/4" NC x 17" gr 5 - (Used on units with 24" Feller Buncher only) - (Used on earlier units only) Hex, 1 1/4-7 x 17", G5

2шт.

Change in listing

1шт.

5

S219842

BOX, TOOL

TOOL BOX - (Optional)

1шт.

6

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

4шт.

7

195-103

WASHER,5/16"

flat - 3/8"

1шт.

8

S76664

COVER

2шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

S77941

NUT, wing - 3/8" NC

4шт.

11

S68667

BRACKET, hydraulic clamp mounting

1шт.

12

196-15

WASHER,17/32" x 1 1/6" x .134"

hardened flat - 17/32"

2шт.

13

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

1шт.

14

S219432

CHANNEL, seat mounting - (Right hand) - (Used on units with serial number 450 thru 6275248)

1шт.

14a

S612856

BRACKET, seat mounting - (Lower) - (Used on units with serial number 6275249 and after)

1шт.

Added listing

1шт.

15

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2"

4шт.

16

S506117

CHANNEL, seat mounting - (Left hand) - (Used on units with serial number 450 thru 6275248)

1шт.

16a

S513120

BRACKET, seat mounting - (Upper) - (Used on units with serial number 6275249 and after)

1шт.

Added listing

1шт.

17

SEAT, operators (for breakdown, see page 56A)

1шт.

Change in listing

1шт.

18

131-205

LOCK NUT,5/16"-18

NUT, self locking - 5/16" NC

4шт.

19

S506187

GUIDE, window storage

1шт.

20

195-33

WASHER,1/2"

flat - 1/2"

3шт.

21

S84889

SHIM,.003" Thk

Reducer mounting .003" Thk

1шт.

S84890

SHIM,.007" Thk

Reducer mounting .007" Thk

1шт.

22

S508668

SLEWING RING

BEARING, turntable - (Used on units with serial number 450 thru 470) - (Supersedes S212362)

1шт.

S508670

BEARING ASSY

BEARING, turntable - (Used on units with serial number 471 and after) - (Supersedes S213322 and S508669)

1шт.

23

S92353

WASHER

hardened flat - 5/8" - (Used on units with serial number 450 thru 470)

1шт.

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

hardened flat - 3/4" - (Used on units with serial number 471 and after)

1шт.

24

S84906

BOLT

CPSW - 5/8" NC x 2" - (Special DMC) - (Bearing to flange) - (Used on units with serial number 450 thru 470)

36шт.

S94645

SPECIAL BOLT,3/4" - 10 x 2"

CPSW - 3/4" NC x 2" - (Special DMC) - (Bearing to flange) - (Used on units with serial number 471 and after)

36шт.

25

S86503

BOLT

CPSW - 5/8" NC x 2-1/4" - (Special DMC) - (Bearing to turntable) - (Used on units with serial number 450 thru 470)

33шт.

S94644

SPECIAL BOLT,3/4" - 10 x 2.25"

CPSW - 3/4" NC x 2-1/4" - (Special DMC) - (Bearing to turntable) - (Used on units with serial number 471 and after)

33шт.

26

S210964

COVER

turntable bearing bolts

1шт.

27

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

2шт.

28

S505720

PLATE

1шт.

Added listing

1шт.

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2"

2шт.

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

2шт.

29

S506965

SUPPORT

swing reducer -, Serial Range: (Welds-turntable)

1шт.

Added listing

1шт.

30

196-65

WASHER,1 3/8" x 2 1/2" x .180", HDN

flat - 1-1/4"

4шт.

Added listing

1шт.

31

S84889

SHIM,.003" Thk

Bearing to turntable .003" Thk

1шт.

Added listing

1шт.
