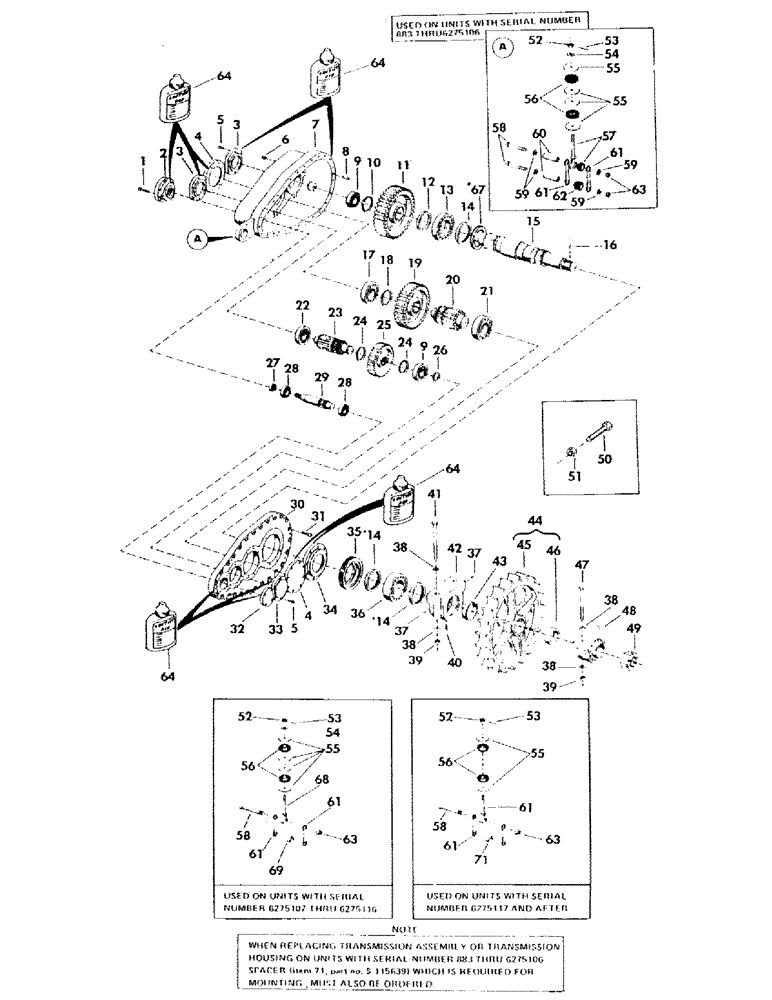

Запчасти Case 40BLC (038) - FINAL DRIVE TRANSMISSION, (USED ON UNITS WITH SERIAL NUMBER 883 AND AFTER) (04) - UNDERCARRIAGE

S609422

TRANSMISSION

final drive - complete (Consists of items 1 thru 34, 49, 65, 66 and 67) (See note)

2шт.

1

61-832

HEX SOC SCREW,1/2"-13 x 2"

CPSW - 1/2" NC x 2" gr 8 - (Hexagon socket head)

3шт.

2

S507602

ADAPTER, brake

1шт.

3

S507599

COVER

bearing

2шт.

4

S507593

COVER

bearing

2шт.

5

61-616

HEX SOC SCREW,3/8"-16 x 1"

CPSW - 3/8" NC x 1" gr 8 - (Hexagon socket head)

53шт.

6

221-845

PLUG,Hex Soc, 3/4"-14

drain and fill - 3/4" NPT - (Hexagon socket head)

4шт.

7

S953541

HOUSING

transmission - (See note)

1шт.

8

S65037

DOWEL

PIN, dowel - 5/8" diameter

2шт.

9

S96219

BEARING

2шт.

10

S96948

SNAP RING,#375, Ext

RING, retaining - 3-7/16"

1шт.

11

S605267

GEAR

output

1шт.

12

S95494

SPACER

1шт.

13

S96220

BALL BEARING,100 mm ID x 180 mm OD x 34 mm

BEARING

1шт.

14

S96168

SEAL

oil

3шт.

15

S605277

SHAFT

output

1шт.

16

138-186

LOCK PIN,3/8" x 4", Slotted

Pin, 3/8" x 4", Slotted

1шт.

17

S96216

BEARING, ROLLER, CYL,65mm ID x 140mm OD x 33mm

BEARING

1шт.

18

S96949

SNAP RING,#387, Ext

RING, retaining - 3-9/16"

1шт.

19

S605269

GEAR

intermediate output

1шт.

20

S605268

SHAFT

intermediate output

1шт.

21

S96217

BEARING, ROLLER, CYL,70mm ID x 150mm OD x 35mm

BEARING

1шт.

22

S96215

BEARING, ROLLER, CYL,50mm ID x 110mm OD x 27mm

BEARING

1шт.

23

S605270

SHAFT

intermediate output

1шт.

24

S96949

SNAP RING,#387, Ext

RING, retaining - 2-3/4"

2шт.

25

S605271

GEAR

input

1шт.

26

S15406

RING, SNAP

RING, retaining - 1-13/16"

1шт.

27

S96159

SEAL

input shaft

1шт.

28

S96214

BEARING, ROLLER, CYL,35mm ID x 80mm OD x 21mm

BEARING

2шт.

29

S605276

SHAFT

input

1шт.

30

S953542

COVER

transmission

1шт.

31

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

CPSW - 1/2" NC x 1-3/4" gr 8 - (Hexagon socket head)

26шт.

32

S507597

COVER

bearing

1шт.

33

S507595

COVER

bearing

1шт.

34

S512875

COVER, bearing - (Supersedes S507591)

1шт.

35

S97173

RETAINER

seal

1шт.

36

S97820

SPHERICAL BEARING,100mm ID x 180mm OD x 46mm W

BEARING, spherical

1шт.

37

83-47

SET SCREW,Hex Soc, 1/4"-20 x 7/16"

SCREW, set - 1/4" NC x 7/16"

2шт.

38

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

hardened flat - 3/4"

8шт.

39

131-450

NUT,3/4"-10

NUT, self locking - 3/4" NC

4шт.

40

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT - straight

1шт.

41

26-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 8

CPSW - 3/4" NC x 9" gr 8

2шт.

42

S507983

HOUSING

1шт.

43

S95495

SPACER

1шт.

44

S507945

DRIVEN SPROCKET

SPROCKET ASSEMBLY - (Includes items 45 and 46)

1шт.

45

S953545

SPROCKET ASSY.

SPROCKET

1шт.

46

S95493

SPACER

1шт.

47

26-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 8

CPSW - 3/4" NC x 8" gr 8

2шт.

48

S507600

BEARING ASSY

BLOCK, pillow

1шт.

49

25-1340

SLOTTED NUT,2 1/2"-12, G5

NUT, castle - 2-1/2" NF

1шт.

50

123-602

BOLT,Hex, 3/4" - 10 x 3", Gr 5, Full Thd

BOLT, tap - 3/4" NC x 3" gr 5

2шт.

51

25-1412

JAM NUT,Jam, 3/4"-10, G5

jam - 3/4" NC

2шт.

52

25-2416

SLOTTED NUT,1"-8, G5

NUT, castle - 1" NC

1шт.

53

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

54

196-55

WASHER,1.06" ID x 2.5" OD x 0.13" Thk

hardened flat - 1"

1шт.

55

S89925

WASHER

flat

1шт.

56

S89926

SPRING

elastomer

2шт.

57

S233260

SHACKLE

SOCKET ASSEMBLY

1шт.

58

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

59

95-8

WASHER,1/2"

flat (9/16") 1/2"

4шт.

60

S109950

SPACER

2шт.

61

S223205

LINK

2шт.

62

S223946

SOCKET

1шт.

63

131-492

NUT,1/2"-13

NUT, self locking - 1/2" NC

2шт.

64

S96077

SEAL

- 10 CC bottle - (Red) - (Used in place of gaskets - substitutes must not be used)

1шт.

65

S115639

SPACER

- (Mounts transmission) - (Not illustrated)

1шт.

66

S116289

SPACER

- (Mounts transmission) - (Not illustrated)

1шт.

67

S235141

SEAL

dirt

1шт.

68

S233266

SOCKET ASSEMBLY

1шт.

69

S109950

SPACER

2шт.

70

S237711

SHACKLE

SOCKET ASSEMBLY

1шт.

71

S115639

SPACER

1шт.
