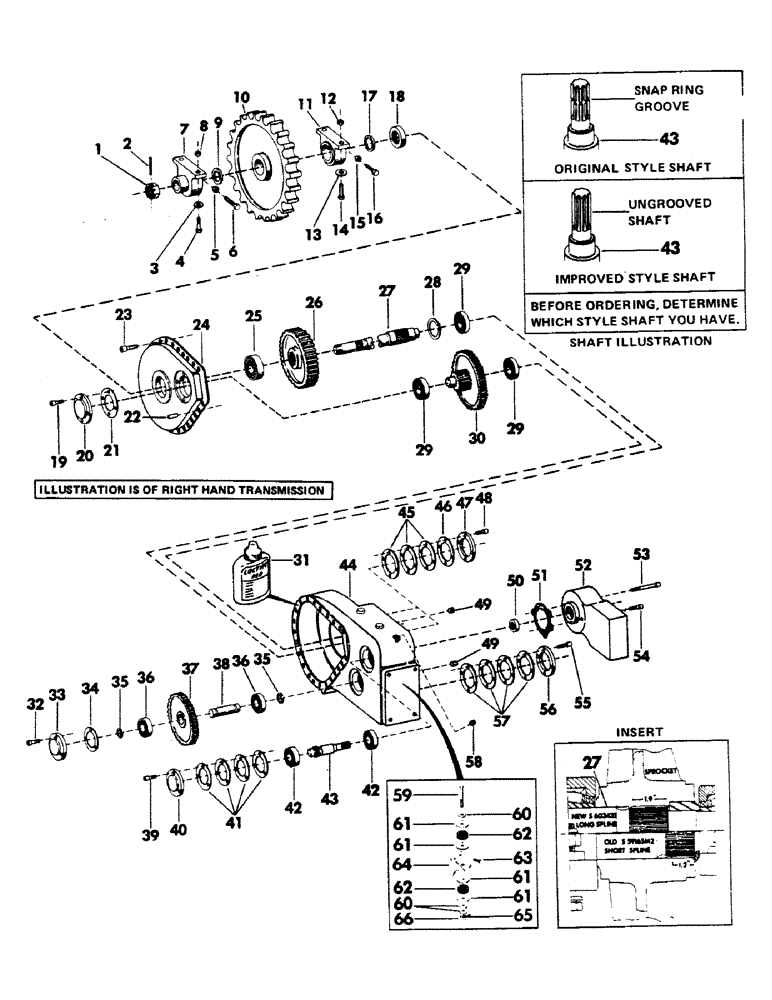

Запчасти Case 40BLC (034) - FINAL DRIVE TRANSMISSION, (USED ON UNITS WITH SERIAL NUMBER 450 THRU 882) (04) - UNDERCARRIAGE

S604785

TRANSMISSION, final drive - complete (Consists of items 1, 2 and 18 thru 58) - (Right hand) - (Used on units with serial number 450 thru 478, except units with longer spline)

1шт.

S604637

TRANSMISSION

final drive - complete (Consists of items 1, 2 and 18 thru 58) - (Left hand) - (Used on units with serial number 479 thru 882, also earlier units with longer spline)

1шт.

Change in listing

1шт.

S604786

TRANSMISSION, final drive - complete (Consists of items 1, 2 and 18 thru 58) - (Left hand) - (Used on units with serial number 450 thru 478, except on units with longer spline)

1шт.

S604636

CASE

TRANSMISSION, final drive - complete (Consists of items 1, 2, and 18 thru 58) - (Right hand) - (Used on units with serial number 479 thru 882, also earlier units with longer spline)

1шт.

Change in listing

1шт.

1

25-1332

NUT,2"-12, G5

NUT - 2" NF

1шт.

2

138-164

LOCK PIN,5/16" x 2 3/4", Slotted

Pin, 5/16" x 2 3/4", Slotted

1шт.

3

196-25

WASHER,21/32" x 1 5/16" x .188", HDN

flat - 5/8" - (Hardened)

2шт.

4

26-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

CPSW - 5/8" NC x 3-1/2" gr 8 - (Mounts pillow block to frame)

2шт.

5

25-1412

JAM NUT,Jam, 3/4"-10, G5

jam - 3/4" NC

1шт.

6

123-602

BOLT,Hex, 3/4" - 10 x 3", Gr 5, Full Thd

CPSW - 3/4" NC x 3" - (Pillow block adjustment)

1шт.

7

S209722

BLOCK

pillow - (Outer)

1шт.

8

131-460

LOCK NUT,5/8"-11

NUT, self locking - 5/8" NC

1шт.

9

S83872

SPACER

outer - (Used on units with short spline shaft only)

1шт.

Change in listing

1шт.

10

S952423

DRIVE SPROCKET

SPROCKET, drive - (Used on units with serial number 450 thru 478 except on units with longer spline) - (See insert)

1шт.

S221928

SPROCKET ASSY.

SPROCKET, drive - (Used on units with serial number 479 thru 882, also earlier units with longer spline) - (See insert)

1шт.

11

S212544

BEARING CARRIER

BLOCK, pillow - (Inner)

1шт.

12

131-450

NUT,3/4"-10

NUT, self locking - 3/4" NC

2шт.

13

S84752

WASHER

flat - 3/4" - (Hardened)

2шт.

14

113-788

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

CPSW - 3/4" NC x 4-1/2" -(Special) - (Mounts pillow block to frame)

2шт.

15

25-1412

JAM NUT,Jam, 3/4"-10, G5

jam - 3/4" NC

1шт.

16

123-602

BOLT,Hex, 3/4" - 10 x 3", Gr 5, Full Thd

CPSW - 3/4" NC x 3" - (Pillow block adjustment)

1шт.

17

S83873

SPACER

inner

1шт.

18

S83874

OIL SEAL

SEAL, oil

1шт.

19

165-120

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 7/8"

CPSW - 3/8" NC x 7/8" - (Socket head nylok)

4шт.

20

S217974

COVER

bearing

1шт.

21

S204088

SHIM,.010" Thk

Gasket .010" Thk

1шт.

22

S65037

DOWEL

- 5/8" x 1-1/4" long

2шт.

23

165-138

HEX SOC SCREW,Prev Torque, 1/2" - 13 x 1 1/8"

CPSW - 1/2" NC x 1-1/8" - (Socket head nylok)

21шт.

24

S952720

COVER

transmission

1шт.

25

S83875

ROLLER BEARING

BEARING, roller

1шт.

26

S603741

GEAR

output

1шт.

Replacement of either gear Ref. 26 or 30 (formerly P/N S600865M2 and P/N S601244) will necessitate the ordering of the gear P/N S603741 and P/N S603740. These gears must be replaced as a pair. See service bulletin no. 81 dated September 1, 1972.

1шт.

27

S59165

SHAFT

output - (Used on units with serial number 450 thru 478 except units with longer spline) - (See insert)

1шт.

S603435

SHAFT

output - (Used on units with serial number 479 thru 88 also earlier units with longer spline) - (See insert)

1шт.

28

S76259

RING, SNAP

RING, retaining

1шт.

29

S65025

BEARING ASSY

BEARING, roller

3шт.

30

S603740

GEAR

CLUSTER AND SHAFT

1шт.

Replacement of either gear Ref. 26 or 30 (formerly P/N S600865M2 and P/N S601244) will necessitate the ordering of the gear P/N S603741 and P/N S603740. These gears must be replaced as a pair. See service bulletin no. 81 dated September 1, 1972.

1шт.

31

S96077

SEAL

- 10CC bottle - (Red) - (Replaces transmission cover gasket - substitutes must not be used)

1шт.

32

165-134

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 3/4"

CPSW - 3/8" NC x 3/4" - (Socket head nylok)

3шт.

33

S210368

COVER

bearing

1шт.

34

S204092

SHIM,.010" Thk

Gasket .010" Thk

1шт.

35

S62725

RING

retaining

2шт.

36

S65035

ROLLER BEARING

BEARING, roller

2шт.

37

S53338

GEAR

CLUSTER, intermediate

1шт.

38

S210366

SHAFT

intermediate

1шт.

39

165-134

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 3/4"

CPSW - 3/8" NC x 3/4" - (Socket head nylok)

3шт.

40

S203411

COVER

bearing

1шт.

41

S204093

SHIM,.003" Thk

Gasket .003" Thk

1шт.

S204094

SHIM

GASKET, shim - .005"

1шт.

S204095

SHIM

GASKET, shim - .007"

1шт.

S204096

SHIM,.010" Thk

Gasket .010" Thk

1шт.

42

S65036

BEARING ASSY

BEARING, roller

2шт.

43

S508255

SHAFT

improved style - (Without snap ring groove)

1шт.

S34044

SHAFT

original style - (With snap ring groove) - (Replaced by kit, item 67) - (See illustration)

1шт.

44

S952724

HOUSING

transmission - (Right hand)

1шт.

S952725

HOUSING

transmission - (Left hand)

1шт.

45

S204085

GASKET

shim - .003"

1шт.

S204086

SHIM,.005" Thk

Gasket .005" Thk

1шт.

S204087

SHIM,.007" Thk

Gasket .007" Thk

1шт.

S204088

SHIM,.010" Thk

Gasket .010" Thk

1шт.

46

S204097

SHIM,.030" Thk

Gasket .030" Thk

1шт.

47

S217974

COVER

bearing

2шт.

48

165-120

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 7/8"

CPSW - 3/8" NC x 7/8" - (Socket head nylok)

8шт.

49

221-845

PLUG,Hex Soc, 3/4"-14

pipe - 3/4" NPT - (Socket head)

2шт.

50

S65001

OIL SEAL

oil - (Break housing)

1шт.

51

S80305

GASKET

brake, Serial Range: housing-transmission

1шт.

52

S57642

HOUSING

track brake - (Right hand and left hand)

1шт.

53

165-123

HEX SOC SCREW,Prev Torque, 1/2" - 13 x 3"

CPSW - 1/2" NC x 3" - (Brake housing to transmission) - (Socket head nylok)

1шт.

54

165-138

HEX SOC SCREW,Prev Torque, 1/2" - 13 x 1 1/8"

CPSW - 1/2" NC x 1-1/8" - (Brake housing to transmission) - (Socket head nylok)

1шт.

55

165-134

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 3/4"

CPSW - 3/8" NC x 3/4" - (Socket head nylok)

3шт.

56

S210368

COVER

bearing

1шт.

57

S204089

SHIM,.003" Thk

Gasket .003" Thk

1шт.

S204090

SHIM,.005" Thk

Gasket .005" Thk

1шт.

S204091

SHIM,.007" Thk

Gasket .007" Thk

1шт.

S204092

SHIM,.010" Thk

Gasket .010" Thk

1шт.

58

221-665

PLUG,Hex Hd, 3/4"-14

pipe - 3/4" NPT - (Hexagon head) - (Breather hole)

1шт.

59

S91560

BOLT

CPSW - 1" NC x 6-1/2" gr 5 - (Mounting, Serial Range: bracket-frame)

1шт.

60

196-55

WASHER,1.06" ID x 2.5" OD x 0.13" Thk

flat - 1-1/16" - (Special)

3шт.

61

S89925

WASHER

flat - 1" - (Special)

4шт.

62

S89926

SPRING

ER, elastomer neoprene

2шт.

63

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

(Mounting bracket to transmission) Hex, 3/4"-10 x 1 1/2", G5

4шт.

64

S217967

BRACKET, transmission mounting - (Right hand) - (Illustrated)

1шт.

S217968

BRACKET, transmission mounting - (Left hand) - (Not illustrated)

1шт.

65

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

66

S89793

NUT

castle - 1" NC

1шт.

67

S607927

SHAFT

KIT, shaft - (Includes shaft S508255, splined coupling S224667, and snap ring S74048) - (See page 103) - (Supersedes S34044)

1шт.
