(033) - TRACK TREAD ADJUSTING JACK, (USED WITH STANDARD GAUGE TRACK UNITS)

Запчасти Case 40BLC (033) - TRACK TREAD ADJUSTING JACK, (USED WITH STANDARD GAUGE TRACK UNITS) (04) - UNDERCARRIAGE

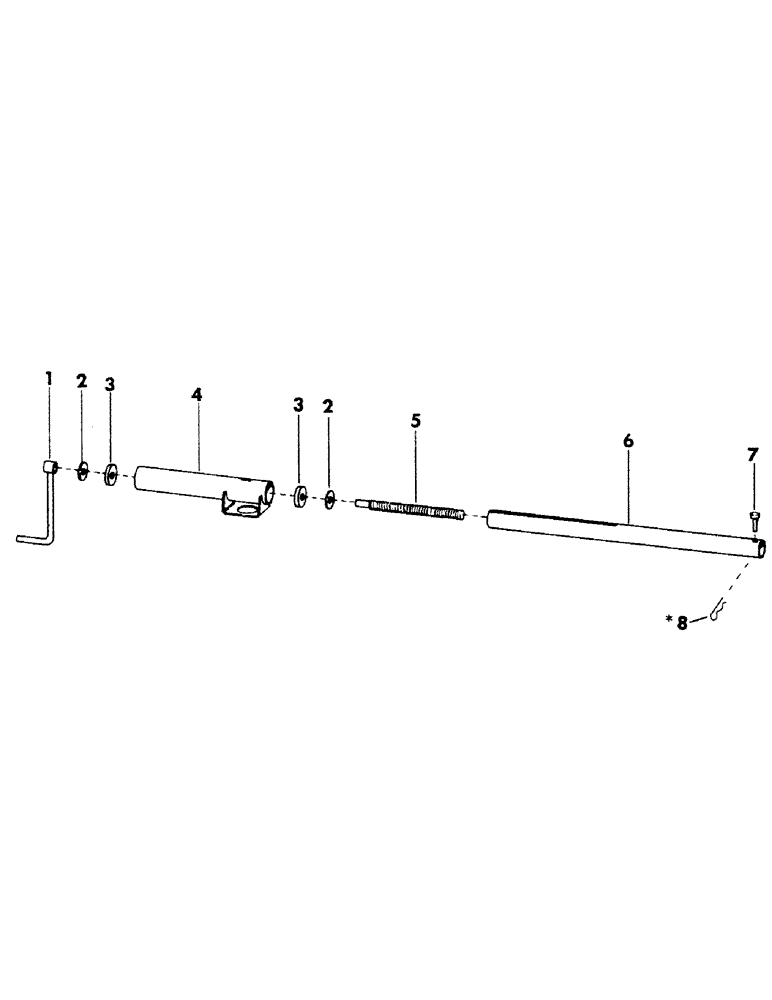

Схема запчастей Case 40BLC - (033) - TRACK TREAD ADJUSTING JACK, (USED WITH STANDARD GAUGE TRACK UNITS) (04) - UNDERCARRIAGE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

S39583

STAND

JACK ASSEMBLY, track adjustment - complete (Consists of items 1 thru 6)

1шт.

1

S209382

HANDLE

1шт.

2

195-41

WASHER,5/8"

2шт.

3

S70299

BEARING

2шт.

4

NSS

NOT SOLD SEPARAT

TUBE, outer

1шт.

5

NSS

NOT SOLD SEPARAT

SCREW, jack

1шт.

6

NSS

NOT SOLD SEPARAT

TUBE, inner

1шт.

7

S10813

PIN

clevis - 1/2" x 2.375" grip length

1шт.

8

S81895

COTTER PIN

HAIR PIN

1шт.
