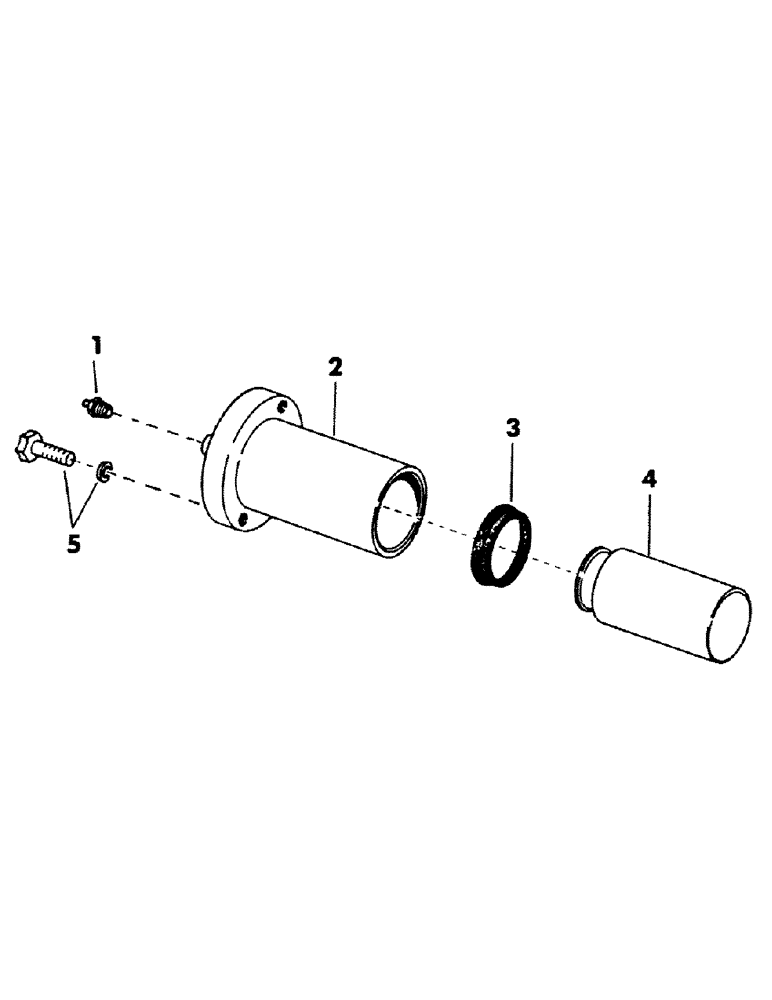

Запчасти Case 40BLC (032) - TRACK ADJUSTMENT CYLINDER (04) - UNDERCARRIAGE

S514013

CYLINDER

track adjustment - complete (Consists of items 1 thru 5) - (Supercedes S56864)

1шт.

Change in listing

1шт.

1

S233299

FITTING

GREASE FITTING ASSEMBLY - (Supersedes S86260 and S79901)

1шт.

Change in listing

1шт.

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .406" ID x .547" OD

1шт.

2

S514014

TUBE,7.5" L

cylinder (Supersedes S39298)

1шт.

3

S78837

SEAL

1шт.

4

S209107

PISTON

1шт.

5

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.
