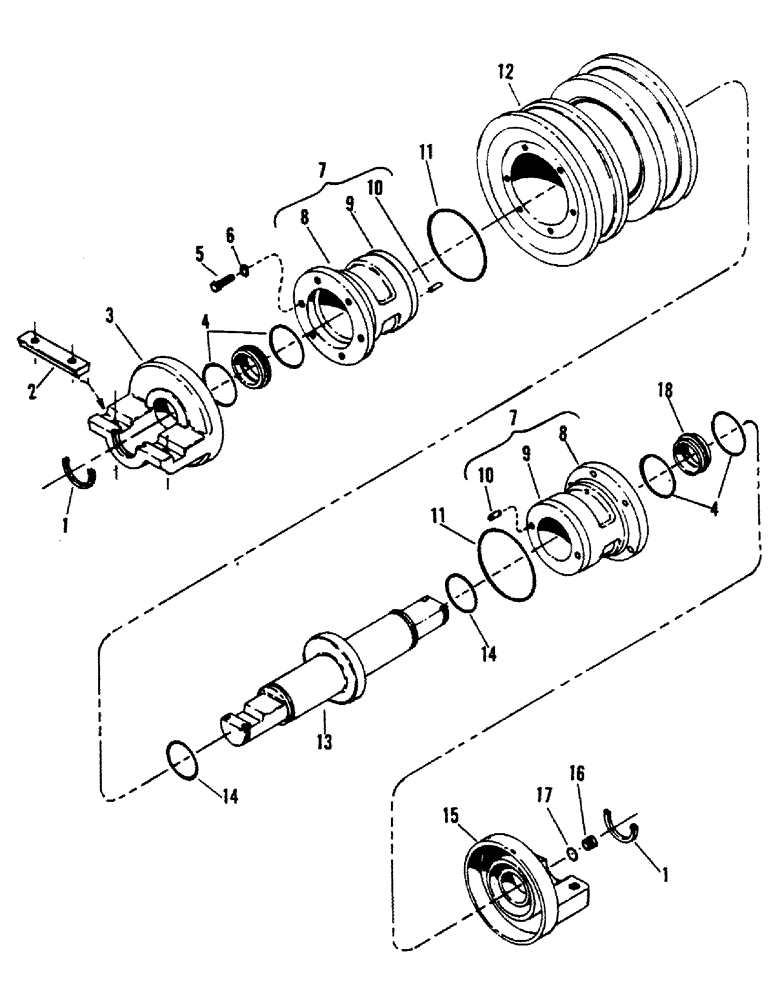

Запчасти Case 40BLC (028) - DOUBLE FLANGE TRACK ROLLER, TYPE B (04) - UNDERCARRIAGE

S507721

ROLLER

double flange track - (Includes items 1 thru 18)

4шт.

1

S101385

RING

2шт.

2

S116135

LOCK

1шт.

3

S101379

COLLAR

inner

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - (Order kit item 19, 20 or 21)

4шт.

5

26-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 8

CPSW - 3/8" NC x 1-1/8" gr 5

12шт.

6

S65290

WASHER, lock - 3/8"

12шт.

7

S101383

BUSHING

ASSEMBLY - (Consists of items 8, 9 and 10)

2шт.

8

S90509

BUSHING

CASE, bushing

1шт.

9

S97897

BUSHING

1шт.

10

S101386

PIN

2шт.

11

NSS

NOT SOLD SEPARAT

RING, seal - (Order kit item 20 or 21)

2шт.

12

S238133

RIM

1шт.

13

S101384

SHAFT

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL, collar to shaft - (Order kit, item 19, 20 or 21)

2шт.

15

S101382

COLLAR, outer

1шт.

16

S116136

PLUG

- 3/4" diameter

1шт.

17

S116153

GASKET

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - (Order kit item 19 or 21)

4шт.

19

S209139

SEAL

KIT, seal - (Consists of items 4, 14 and 18)

1шт.

20

S116137

KIT, seal - (Consists of items 4, 11 and 14)

1шт.

21

S238134

KIT, seal - (Consists of items 4, 11, 14 and 18)

1шт.

22

S116138

NOZZLE - (For filling roller)

1шт.
