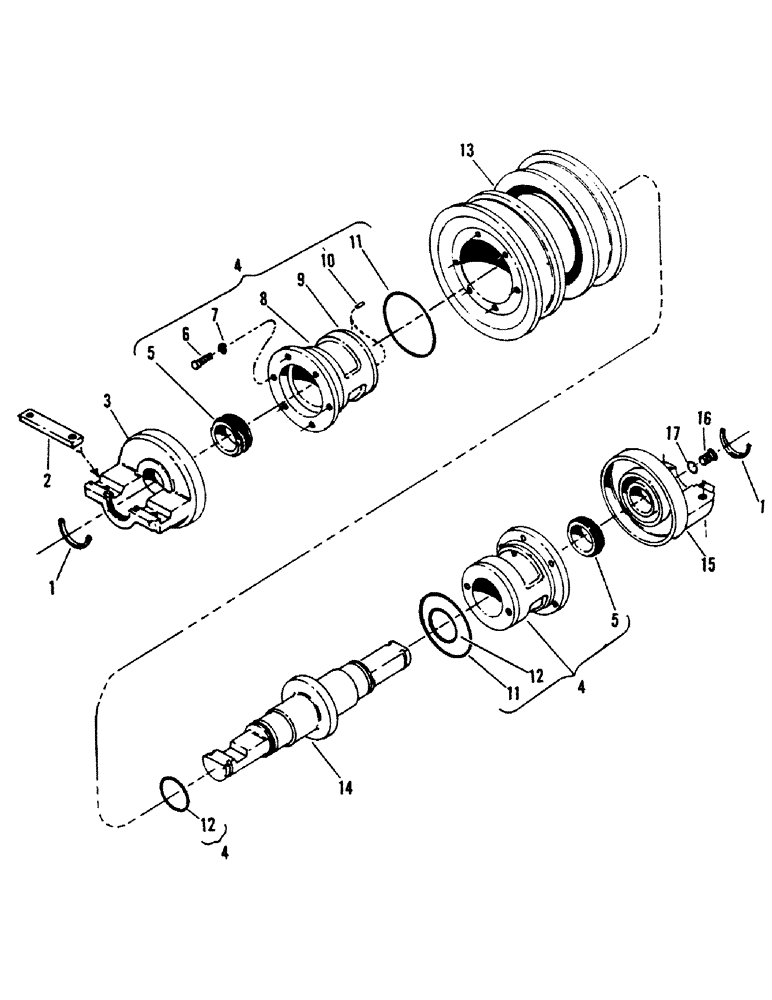

Запчасти Case 40BLC (026) - DOUBLE FLANGE TRACK ROLLER, TYPE I (04) - UNDERCARRIAGE

S507721

ROLLER

double flange track - (Includes items 1 thru 17)

4шт.

1

S89317

RING, LOCKING

LOCK, key

2шт.

2

S89310

LOCK

KEY

1шт.

3

S112378

COLLAR, inner

1шт.

4

S89309

COLLAR

BUSHING ASSEMBLY - (Includes items 5 thru 12)

2шт.

5

S112384

KIT

SEAL ASSEMBLY

1шт.

6

114-218

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5, Full Thd

CPSW - 3/8" NF x 7/8" gr 5

6шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

8

NSS

NOT SOLD SEPARAT

CASE, bushing

1шт.

9

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

10

NSS

NOT SOLD SEPARAT

PIN

2шт.

11

S112382

O-RING

"O" RING

1шт.

12

S112383

O-RING

"O"RING, Serial Range: collar-shaft

2шт.

13

S114841

SHELL

RIM

1шт.

14

S89316

SHAFT

1шт.

15

S89314

COLLAR

outer

1шт.

16

S113081

PLUG

"O" ring - 3/4" NC - socket head - (Includes item 17)

1шт.

17

S113087

O-RING

"O" RING

1шт.
