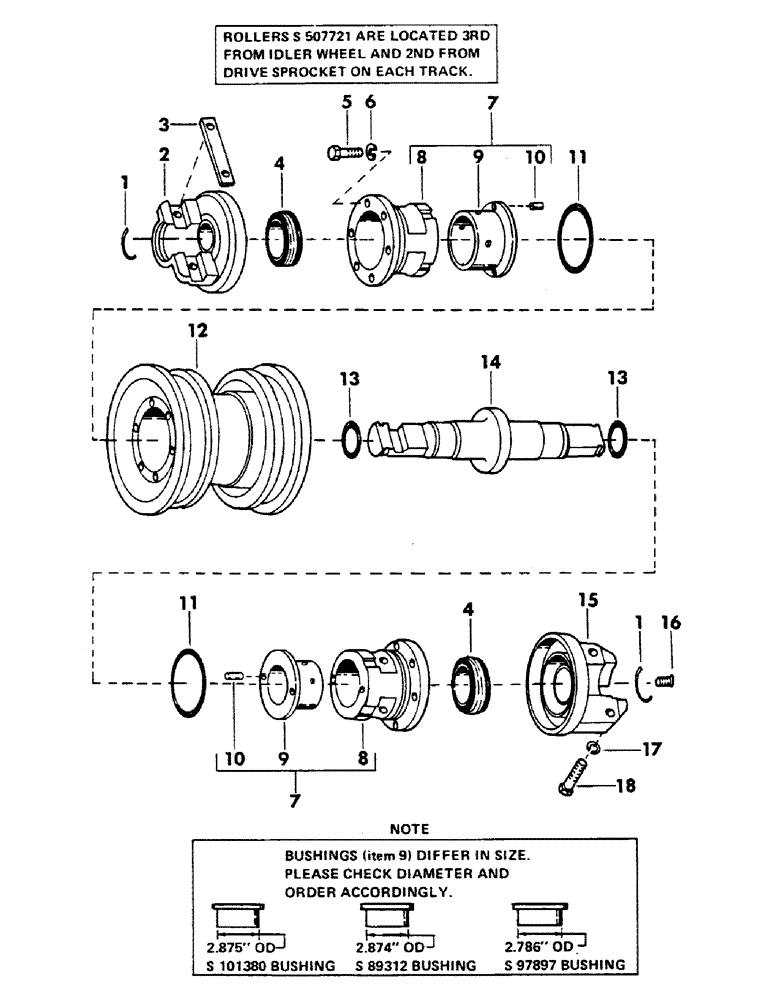

Запчасти Case 40BLC (022) - DOUBLE FLANGE TRACK ROLLER, (USED ON UNITS WITH SERIAL NUMBER 549,522, AND 560 AND AFTER) (04) - UNDERCARRIAGE

S507721

ROLLER

4шт.

ROLLER, double flange track - complete (Consists of items 1 thru 18) - (The total quantity of rollers required per machine is 20. On units with serial number listed above a machine requires 16 rollers of S505093 as illustrated on page 14 and 4 rollers of S507721 listed in this page)

1шт.

1

S89317

RING, LOCKING

RING, snap -, Serial Range: (Shaft-collars)

2шт.

2

S89309

COLLAR

inner

1шт.

3

S89310

LOCK

1шт.

4

S95098

SEAL

GROUP

2шт.

5

26-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 8

CPSW - 3/8" NC x 1-1/8" gr 5

12шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

7

S89317

RING, LOCKING

BUSHING ASSEMBLY - (Includes items 8 thru 10)

2шт.

8

NSS

NOT SOLD SEPARAT

BUSHING, outer - (Cast iron) - (Order item 7)

1шт.

9

S97897

BUSHING

inner - (Bronze) - 2.786" OD - (See note on illustration)

1шт.

S89312

BUSHING

inner - (Bronze) - 2.874" OD - (See note on illustration)

1шт.

S101380

BUSHING, inner - (Bronze) - 2.875" OD - (See note on illustration)

1шт.

10

S89318

PIN

2шт.

11

S89313

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL

2шт.

12

S97793

RIM

1шт.

13

S6315

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

"O" RING - 1.859" ID x 2.125" OD - (Collar to shaft)

2шт.

14

S89376

SHAFT

1шт.

15

S89314

COLLAR

outer

1шт.

16

S87854

PLUG

pipe - 3/4" - 16 male

1шт.

17

S97895

WASHER

4шт.

18

S97894

CAPSCREW

CPSW

4шт.
