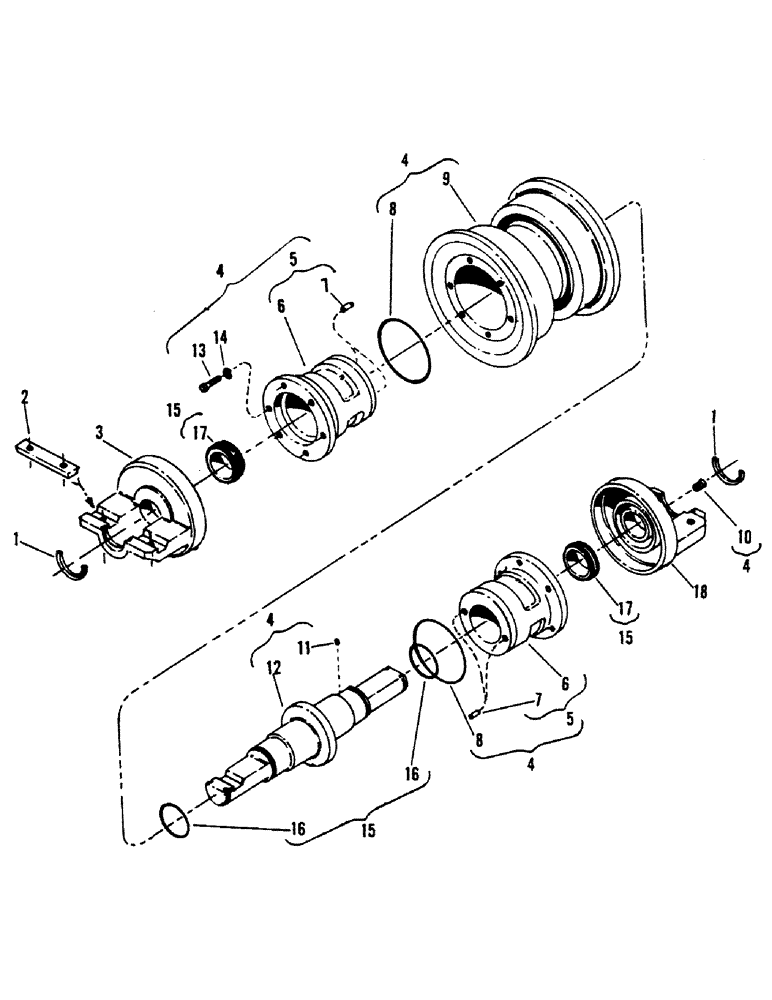

Запчасти Case 40BLC (020) - SINGLE FLANGE TRACK ROLLER, TYPE C (04) - UNDERCARRIAGE

S505093

ROLLER

single flange track - (Includes items 1 thru 18)

18шт.

1

S89317

RING, LOCKING

RING

2шт.

2

S89310

LOCK

1шт.

3

S89309

COLLAR

inner

1шт.

4

S89307

RIM

ROLLER AND SHAFT ASSEMBLY - (Includes items 6 thru 14)

1шт.

5

S112381

BUSHING

ASSEMBLY - (Consists of items 6 and 7)

2шт.

6

NSS

NOT SOLD SEPARAT

BEARING

1шт.

7

S89318

PIN

2шт.

8

S89313

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL

2шт.

9

S112400

RIM

1шт.

10

S87854

PLUG

- 3/4" dia.

1шт.

11

S112399

PLUG, shaft

1шт.

12

S89316

SHAFT

1шт.

13

26-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 8

CPSW - 3/8" NC x 1-1/8" gr 5

12шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

15

S209139

SEAL

KIT, seal - (Consists of items 16 and 17)

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL

2шт.

17

NSS

NOT SOLD SEPARAT

SEAL

2шт.

18

S89314

COLLAR

outer

1шт.
