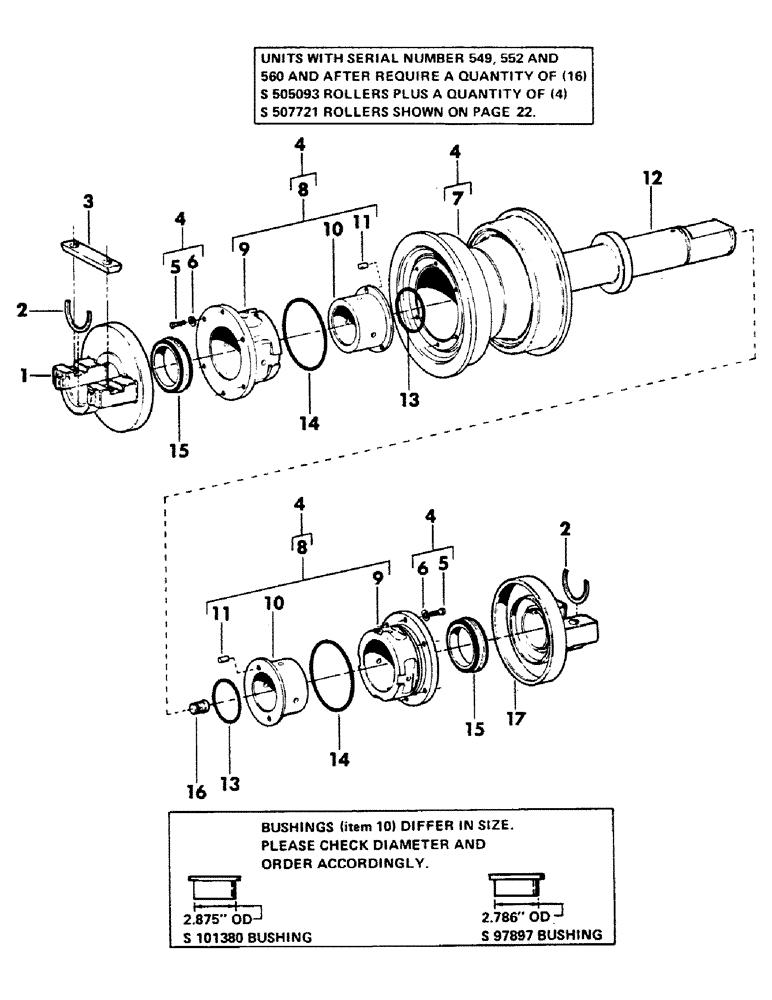

Запчасти Case 40BLC (014) - SINGLE FLANGE TRACK ROLLER (04) - UNDERCARRIAGE

S505093

ROLLER

single flange track - complete (Consists of items 1 thru 17) - (Used on units with serial number 450 thru 548, 550, 551 and 553 thru 559)

20шт.

S505093

ROLLER

single flange track - complete (Consists of item 1 thru 17) - (Used on units with serial number 549, 552 and 560 and after)

16шт.

1

S89309

COLLAR

inner

1шт.

2

S89317

RING, LOCKING

RING, snap -, Serial Range: (Shaft-collars)

2шт.

3

S89310

LOCK

1шт.

4

S89306

ROLLER

ASSEMBLY - (Includes items 5 thru 11)

1шт.

5

26-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 8

CPSW - 3/8" NC x 1-1/8" gr 5

12шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

7

S89307

RIM

1шт.

8

S89315

BUSHING

ASSEMBLY - (Includes items 9 thru 11)

2шт.

9

NSS

NOT SOLD SEPARAT

BUSHING, outer - (Cast iron) - (Order item 8)

1шт.

10

S97897

BUSHING

inner - (Bronze) - 2.786" OD - (See note on illustration)

1шт.

Added listing

1шт.

S101380

BUSHING, inner - (Bronze) - 2.875" OD - (See note on illustration)

1шт.

11

S89318

PIN

2шт.

12

S89316

SHAFT

1шт.

13

S6315

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

"O" RING - 1.859" ID x 2.125" OD - (Collar to shaft)

2шт.

14

S89313

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - 2.234" ID x 2.500" OD - (Bushing seal)

2шт.

15

S95098

SEAL

GROUP

2шт.

16

S87854

PLUG

pipe - 3/4" - 16 male

1шт.

17

S89314

COLLAR

outer

1шт.
