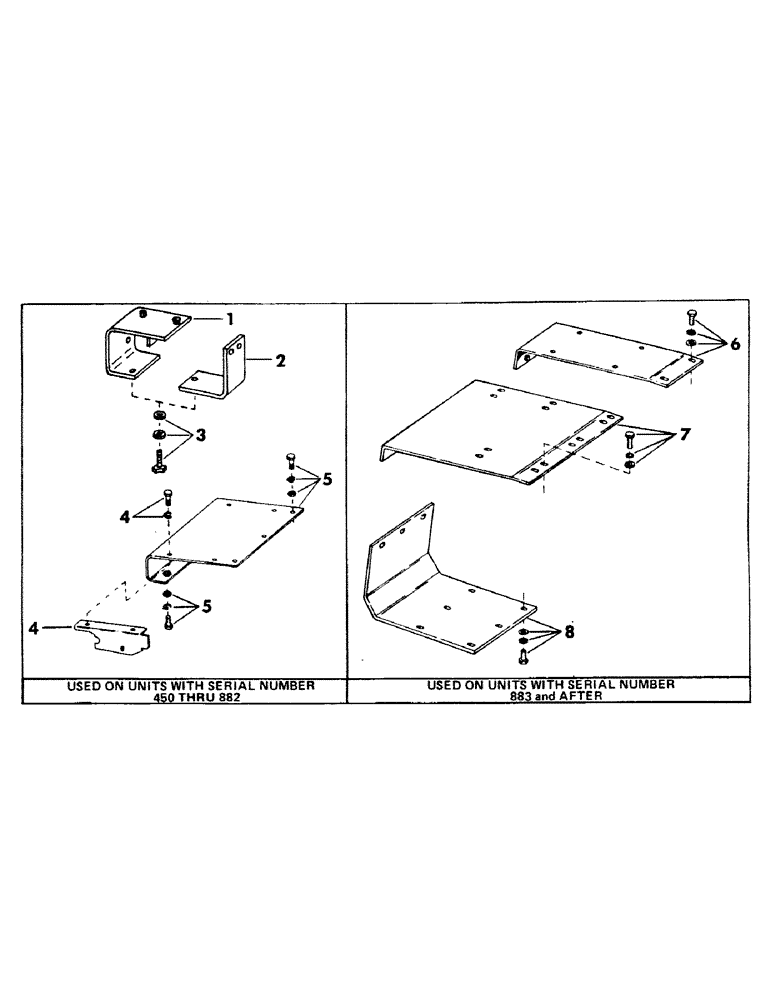

Запчасти Case 40BLC (010) - TRACK MOTOR GUARDS, (USED WITH STANDARD GAUGE TRACK UNITS) (04) - UNDERCARRIAGE

1

S506910

COVER, upper motor - (Left hand)

1шт.

S506912

COVER, upper motor - (Right hand)

1шт.

2

S506908

COVER, lower motor - (Right hand) and (Left hand)

2шт.

3

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

14шт.

S84752

WASHER

hardened - 1/2"

14шт.

195-33

WASHER,1/2"

flat - 1/2"

14шт.

4

S501901

SHIELD - (Right hand) - (Illustrated)

1шт.

S501900

SHIELD - (Left hand) - (Not illustrated)

1шт.

113-40

BOLT,Hex, 1/4" - 20 X 3/4", Gr 2

CPSW - 1/2" NC x 1-1/2" gr 5

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

5

S5704

RING

GUARD, motor

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

5шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

5шт.

195-33

WASHER,1/2"

flat - 1/2"

5шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

195-33

WASHER,1/2"

flat - 1/2"

2шт.

6

S225314

COVER, center

1шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2"

2шт.

7

S225311

COVER, upper motor - (Right hand) - (Illustrated)

1шт.

S225312

COVER, lower motor - (Left hand) - (Not illustrated)

1шт.

113-40

BOLT,Hex, 1/4" - 20 X 3/4", Gr 2

CPSW - 1/2" NC x 1-1/2" gr 5

4шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

12шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2"

16шт.

8

S225307

COVER, lower motor

2шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

16шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2"

16шт.
