(009) - TRACK GUARDS, (USED ON UNITS WITH SERIAL NUMBER 883 AND AFTER)

Запчасти Case 40BLC (009) - TRACK GUARDS, (USED ON UNITS WITH SERIAL NUMBER 883 AND AFTER) (04) - UNDERCARRIAGE

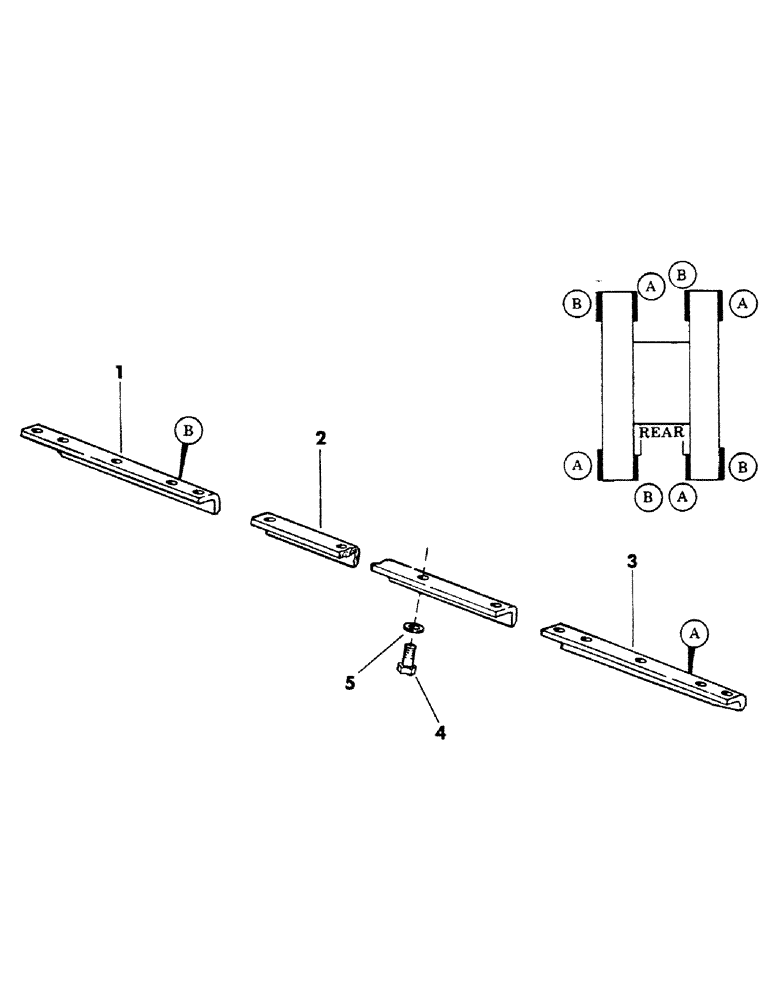

Схема запчастей Case 40BLC - (009) - TRACK GUARDS, (USED ON UNITS WITH SERIAL NUMBER 883 AND AFTER) (04) - UNDERCARRIAGE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

S227038

ANGLE

GUARD, track

4шт.

2

S607668

ANGLE

GUARD, track

4шт.

3

S227039

ANGLE

GUARD, track

4шт.

4

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

68шт.

5

S84752

WASHER

flat - 3/4"

68шт.
