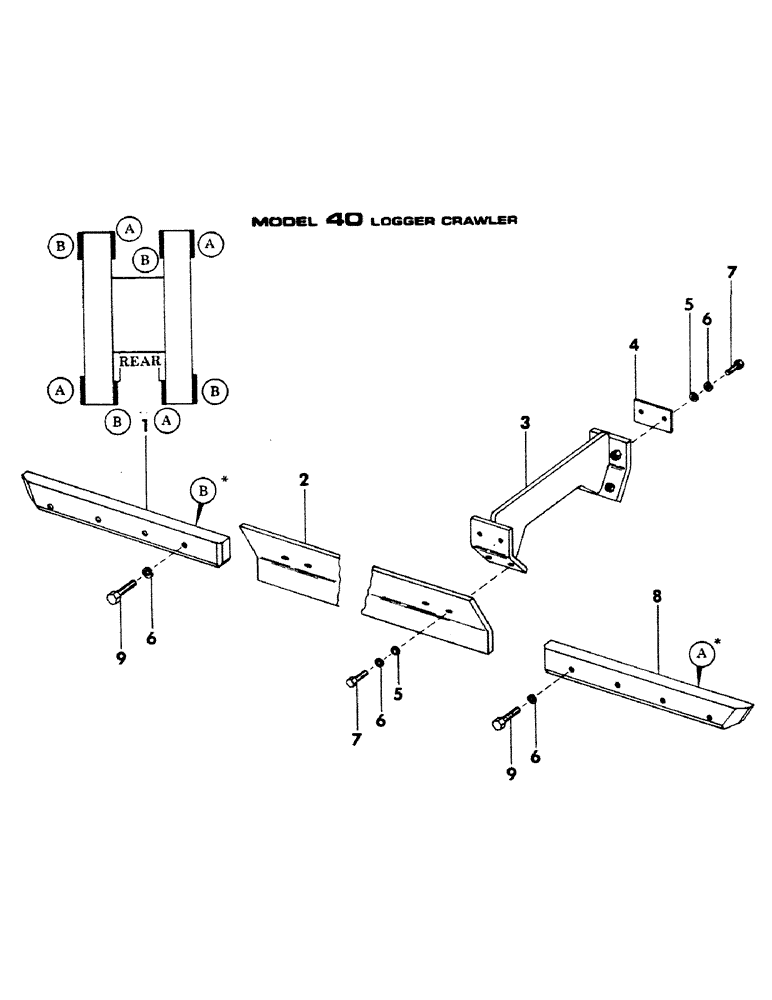

Запчасти Case 40BLC (008) - TRACK GUARD, (USED ON UNITS WITH SERIAL NUMBER 450 THRU 882) (04) - UNDERCARRIAGE

1

S215814

BAR

4шт.

2

S504292

GUARD ASSEMBLY

4шт.

3

S216665

BRACKET ASSEMBLY - (Mounts to track frame)

8шт.

4

S88678

SHIM - .059"

16шт.

S88679

SHIM - .032"

16шт.

5

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2"

64шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

96шт.

7

26-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

CPSW - 1/2" NC x 2" gr 8

64шт.

8

S215815

BAR

4шт.

9

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

32шт.
