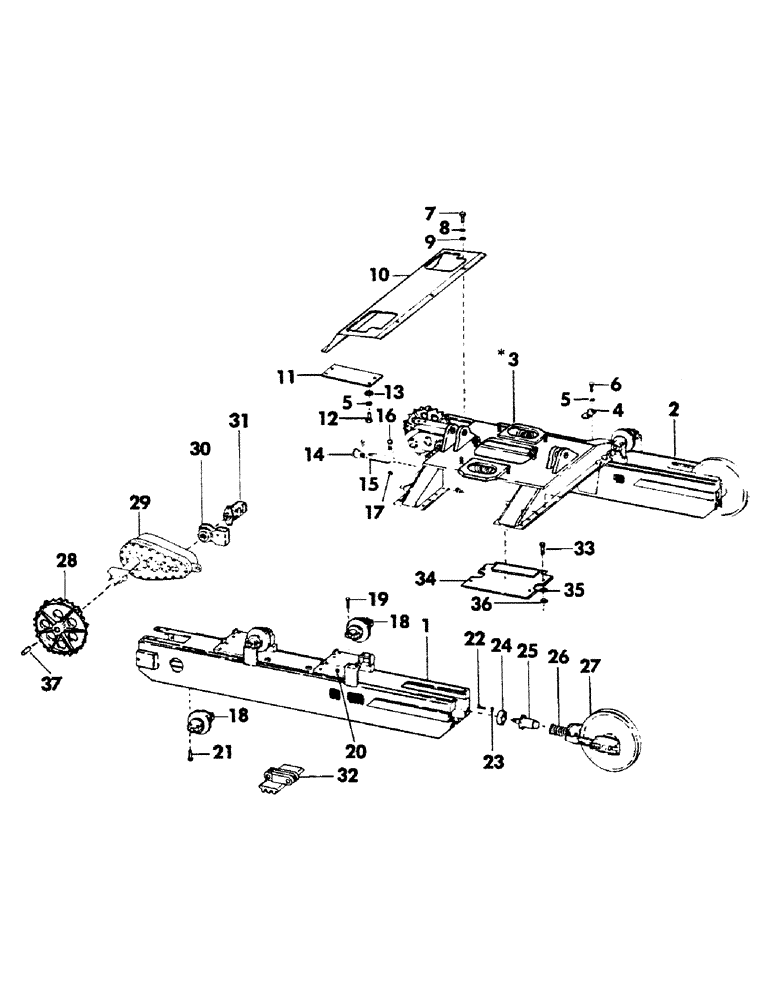

Запчасти Case 40BLC (006) - CRAWLER UNDERCARRIAGE AND ATTACHING PARTS, (USED WITH WIDE GAUGE TRACK UNITS) (04) - UNDERCARRIAGE

1

S953583

FRAME, track - (Right hand) - (Used on units with serial number 450 thru 882)

1шт.

S953893

FRAME, track - (Right hand) - (Used on units with serial number 883 and after)

1шт.

2

S953584

FRAME, track - (Left hand) - (Used with serial number 450 thru 882)

1шт.

S953894

FRAME, track - (Left hand) - (Used on units with serial number 883 and after)

1шт.

3

CARBODY - (For breakdown, see page 2)

1шт.

4

S209072

STOP, track adjusting

4шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

6

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

7

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

9

195-33

WASHER,1/2"

flat - 1/2"

6шт.

10

S601439

GUARD, motor - (Used on units with serial number 450 thru 882)

1шт.

S606316

GUARD, motor- (Used on units with serial number 883 and after)

1шт.

11

S89353

PLATE - (Used on units with serial number 450 thru 882)

2шт.

PLATE - (Used on units with serial number 883 and after)

2шт.

Change in listing

1шт.

12

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

13

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2"

1шт.

14

S100742

SHACKLE

round pin - (Optional)

1шт.

15

S209710

PLATE

draw bar - (Optional)

1шт.

16

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

4шт.

17

25-1012

NUT,3/4"-10, G5

4шт.

18

ROLLER, single flange track - (For breakdown, see page 14)

1шт.

ROLLER, double flange track - (For breakdown, see page 22)

4шт.

19

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

16шт.

20

131-460

LOCK NUT,5/8"-11

NUT, self locking - 5/8" NC

16шт.

21

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

CPSW - 5/8" NC x 2" gr 8

64шт.

22

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

23

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

24

S79135

SPACER

2шт.

25

CYLINDER, track adjustment - (For breakdown, see page 32)

2шт.

26

TRACK ADJUSTER GROUP - (For breakdown, see page 12)

2шт.

27

WHEEL, front idler - (For breakdown, see page 12)

2шт.

28

S952423

DRIVE SPROCKET

SPROCKET, drive - (Used on units with serial number 450 thru 478 except units with longer spline - see insert on page 34) - (Used with output shaft S59165M2)

2шт.

S221928

SPROCKET ASSY.

SPROCKET, drive - (Used on units with serial number 450 thru 882, and earlier units with longer spline - see insert on page 34) - (Used with output shaft S603435) - (Includes bushing item 37)

2шт.

S507945

DRIVEN SPROCKET

DRIVE SPROCKET ASSEMBLY - (Includes sprocket S953545 and spacer S95493) - (Used on units with serial number 883 and after)

2шт.

29

TRANSMISSION, final drive - (Left hand) - (For breakdown, see page 34) - (Used on units with serial number 450 thru 882) - (Not illustrated)

1шт.

TRANSMISSION, final drive - (Left hand) - (For breakdown, see

1шт.

page 38) - (Used on units with serial number 883 and after) - (Not illustrated)

1шт.

TRANSMISSION, final drive - (Right hand) - (For breakdown, see page 34) - (Used on units with serial number 450 thru 882) - (Illustrated)

1шт.

TRANSMISSION, final drive - (Right hand) - (For breakdown, see page 38) - (Used on units with serial number 883 and after) - (Not illustrated)

1шт.

30

BRAKE, track drive - (For breakdown, see page 136) - (Used on units with serial number 450 thru 882) - (Illustrated)

2шт.

BRAKE, track drive - (For breakdown, see page 138) - (Used on units with serial number 883 and after) - (Not illustrated)

2шт.

31

MOTOR, track drive - (For breakdown, see page 232) - (Used on units with serial number 450 thru 882) - (Illustrated)

2шт.

MOTOR, track drive - (For breakdown, see page 236) - (Used on units with serial number 883 and after) - (Not illustrated)

2шт.

32

TRACK ASSEMBLY - (For breakdown, see page 31)

2шт.

33

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

34

S213950

PLATE, swivel guard

1шт.

35

95-9

WASHER

flat - 5/8"

8шт.

36

131-79

NUT, self locking - 5/8" NC

8шт.

37

S221929

BUSHING,58.14mm ID x 83.84mm OD x 43.56mm L

2шт.
