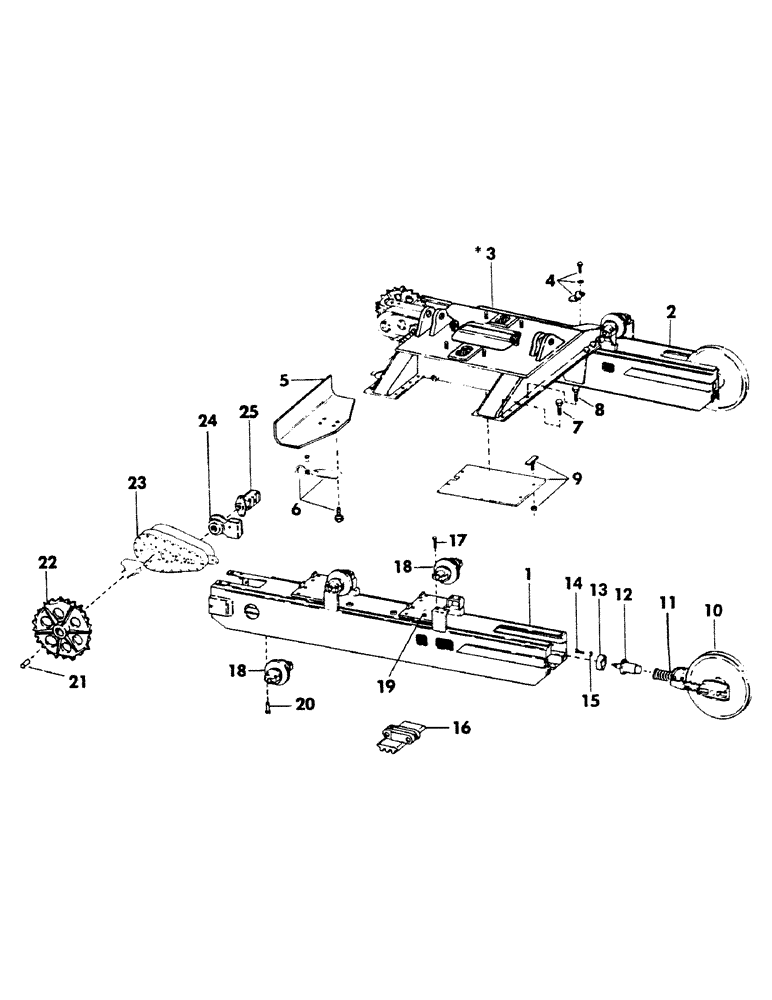

Запчасти Case 40BLC (004) - CRAWLER UNDERCARRIAGE AND ATTACHING PARTS, (USED WITH STANDARD GAUGE TRACK UNITS) (04) - UNDERCARRIAGE

1

S953583

FRAME, track - (Right hand) - (Used on units with serial number 450 thru 552)

1шт.

S953893

FRAME, track - (Right hand) - (Used on units with serial number 883 and after)

1шт.

2

S953584

FRAME, track - (Left hand) - (Used on units with serial number 450 thru 882)

1шт.

S953894

FRAME, track - (Left hand) - (Used on units with serial number 883 and after)

1шт.

3

CARBODY - (For breakdown, see page 6)

1шт.

4

S209072

STOP, track adjusting

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

5

S503760

BUMPER

1шт.

6

S209710

PLATE

draw bar - (Optional)

1шт.

S100742

SHACKLE

round pin

1шт.

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

4шт.

25-1012

NUT,3/4"-10, G5

4шт.

7

26-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 8

CPSW - 7/8" NC x 3" gr 8

16шт.

8

26-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

CPSW - 7/8" NC x 2" gr 8

16шт.

9

S210279

PLATE, swivel guard

1шт.

S210280

CLAMP

4шт.

131-79

NUT, self locking - 5/8" NC

4шт.

10

WHEEL, front idler - (For breakdown, see page 12)

2шт.

11

TRACK ADJUSTER GROUP - (For breakdown, see page 12)

2шт.

12

CYLINDER, track adjustment - (For breakdown, see page 32)

2шт.

13

S79135

SPACER

2шт.

14

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.

16

TRACK ASSEMBLY - (For breakdown, see page 30)

2шт.

17

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

16шт.

18

ROLLER, single flange track - (For breakdown, see page 14)

1шт.

ROLLER, double flange track - (For breakdown, see page 14)

4шт.

19

131-460

LOCK NUT,5/8"-11

NUT, self locking - 5/8" NC

16шт.

20

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

CPSW - 5/8" NC x 2" gr 8

64шт.

21

S221929

BUSHING,58.14mm ID x 83.84mm OD x 43.56mm L

2шт.

22

S952423

DRIVE SPROCKET

SPROCKET, drive - (Used on units with serial number 450 thru 478, except on units with longer spline - see insert on page 34) - (Used with output shaft S59165M2)

2шт.

S221928

SPROCKET ASSY.

SPROCKET, drive - (Used on units with serial number 479 thru 882, and earlier units with longer spline - see insert on page 34) - (Used with output shaft S603435) - (Includes bushing item 15)

2шт.

S507945

DRIVEN SPROCKET

DRIVE SPROCKET ASSEMBLY - (Includes sprocket S953545 and spacer S95493) - (Used on units with serial number 883 and after)

2шт.

23

TRANSMISSION, final drive - (Left hand) - (For breakdown, see page 34) - (Used on units with serial number 450 thru 882) - (Not illustrated)

1шт.

TRANSMISSION, final drive - (Left hand) - (For breakdown, see page 38) - (Used on units with serial number 883 and after) - (Not illustrated)

1шт.

TRANSMISSION, final drive - (Right hand) - (For breakdown, see page 34) - (Used on units with serial number 450 thru 882) - (Illustrated) TRANSMISSION, final drive - (Right hand) - (For breakdown, see page 38) - (Used on units with serial number 883 and after) - (Not illustrated)

1шт.

24

BRAKE, track drive - (For breakdown, see page 136) - (Used on units with serial number 405 thru 882) - (Illustrated)

2шт.

BRAKE, track drive - (For breakdown, see page 138) - (Used on units with serial number 883 and after) - (Not illustrated)

2шт.

25

MOTOR, track drive - (For breakdown, see page 232) - (Used on units with serial number 450 thru 882) - (Illustrated)

2шт.

MOTOR, track drive - (For breakdown, see page 236) - (Used on units with serial number 883 and after) - (Not illustrated)

2шт.
