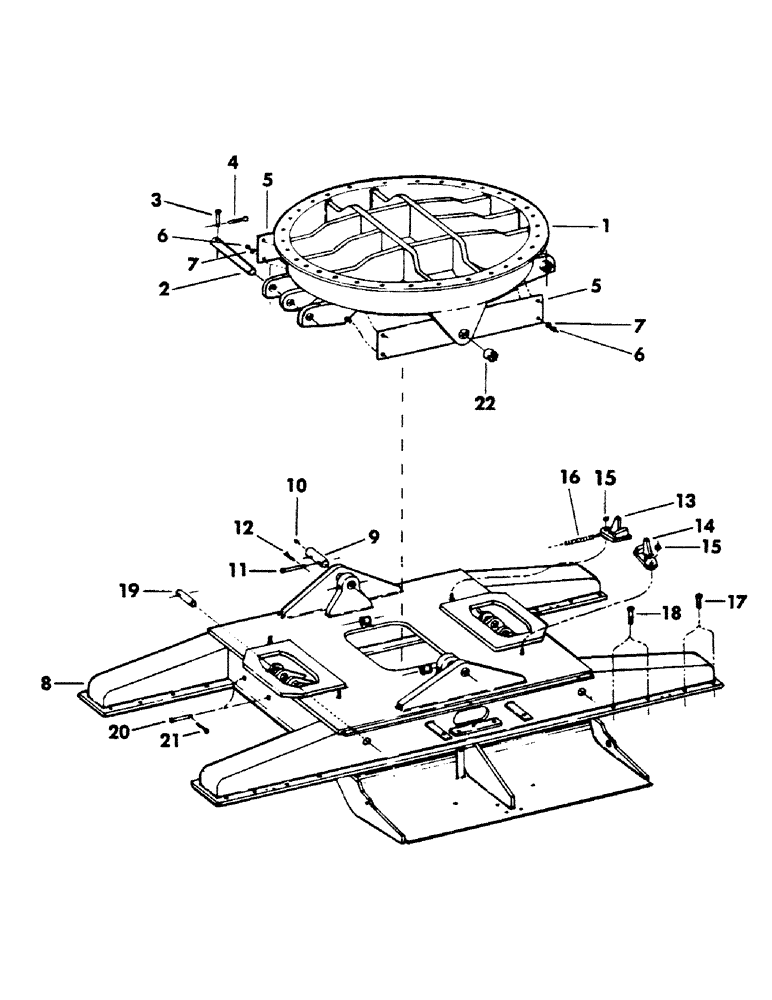

Запчасти Case 40BLC (002) - TURNTABLE LEVELER WITH PINS AND HARDWARE, (USED WITH WIDE GAUGE TRACK UNITS) (04) - UNDERCARRIAGE

1

S59820

LEVELER, upper - (Includes item 22) - (Used with 5/8" mounting cpsw's) - (Used on units with serial number 450 thru 470)

1шт.

S603820

LEVELER, upper - (Includes item 22) - (Used with 3/4" mounting cpsw's) - (Used on units with serial number 471 and after)

1шт.

2

S85708

PIN

- (Leveler cylinder to leveler ring)

2шт.

3

S61973

AXLE PIN

PIN, clevis - 1/2" x 3.766" grip length

2шт.

4

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

5

S214790

COVER, motor

8шт.

6

131-206

NUT,3/8"-16

NUT, self locking - 3/8" NF

8шт.

7

195-103

WASHER,5/16"

flat - 3/8"

8шт.

8

S953038

BASE, leveler - (Used on units with serial number 450 thru 882)

1шт.

S953790

BASE, leveler - (Used on units with serial number 883 and after)

1шт.

9

S85739

PIN

leveler ring to base - (Includes item 10)

2шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/4" NPT - (Straight)

2шт.

11

S61976

CLEVIS PIN

PIN, clevis - 5/8" x 43516" grip length

2шт.

12

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

13

S213942

STOP, leveler ring - (Used on units with serial number 450 thru 6275248)

2шт.

Change in listing

1шт.

14

S213941

STOP, leveler ring - (Used on units with serial number 450 thru 6275248)

2шт.

Change in listing

1шт.

15

131-70

NUT,1/2"-13, GB

NUT - 1/2" NC - (Used on units with serial number 450 thru 6275248)

4шт.

Change in listing

1шт.

16

S64335

SPRING, stop

4шт.

17

S93531

BOLT

CPSW - 7/8" NC x 3" gr 8

16шт.

18

S93532

BOLT

CPSW - 7/8" NC x 2" gr 8

16шт.

19

S87086

PIN

- (Mounts, Serial Range: leveler-cylinder)

4шт.

20

S61972

PIN

4шт.

21

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

4шт.

22

S202192

BUSHING

2шт.
