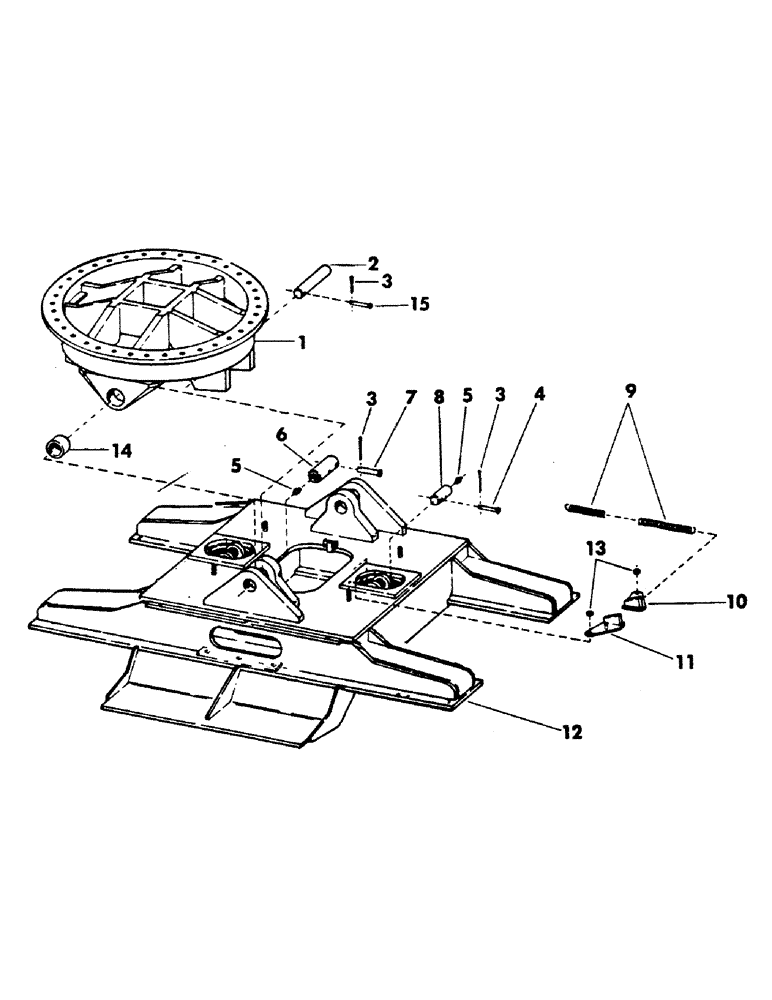

Запчасти Case 40BLC (001) - TURNTABLE LEVELER WITH PINS AND HARDWARE, (USED WITH STANDARD GAUGE TRACK UNITS) (04) - UNDERCARRIAGE

1

S56800

LEVEL

ER, upper - (Includes item 14) - (Used with 5/8" mounting cpsw's) - (Used on units with serial number 450 thru 470)

1шт.

1

LEVELER, upper - (Includes item 14) - (Used with 3/4" mounting cpsw's) - (Used on units with serial number 471 and after)

1шт.

2

S78554

PIN

-, Serial Range: (Cylinder-top)

2шт.

3

132-48

COTTER PIN,1/8" x 1"

PIN, cotter - 5/32" x 1" long

6шт.

4

S61973

AXLE PIN

PIN, clevis - 1/2" x 3.766" grip length

2шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT - (Straight)

4шт.

6

S72631

PIN

leveler, Serial Range: top-bottom

2шт.

7

S61976

CLEVIS PIN

PIN, clevis - 5/8" x 4.516" grip length

2шт.

8

S78317

PIN

-, Serial Range: (Cylinder-bottom)

2шт.

9

S64335

SPRING - (Used on units with serial number 450 thru 6275248)

2шт.

Change in listing

1шт.

10

S209083

STOP, leveler - (Used on units with serial number 450 thru 6275248)

2шт.

Change in listing

1шт.

11

S209082

STOP, leveler - (Used on units with serial number 450 thru 6275248)

2шт.

Change in listing

1шт.

12

S953035

LEVELER, lower - (Used on units with serial number 450 thru 882)

1шт.

12

LEVELER, lower - (Used on units with serial number 883 and after)

1шт.

13

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC - (Used on units with serial number 450 thru 6275248)

4шт.

Change in listing

1шт.

14

S202163

BUSHING

2шт.

15

S61975

PIN,20.62mm OD x 106.76mm L

clevis - 1/2" x 3.766" grip length

2шт.
