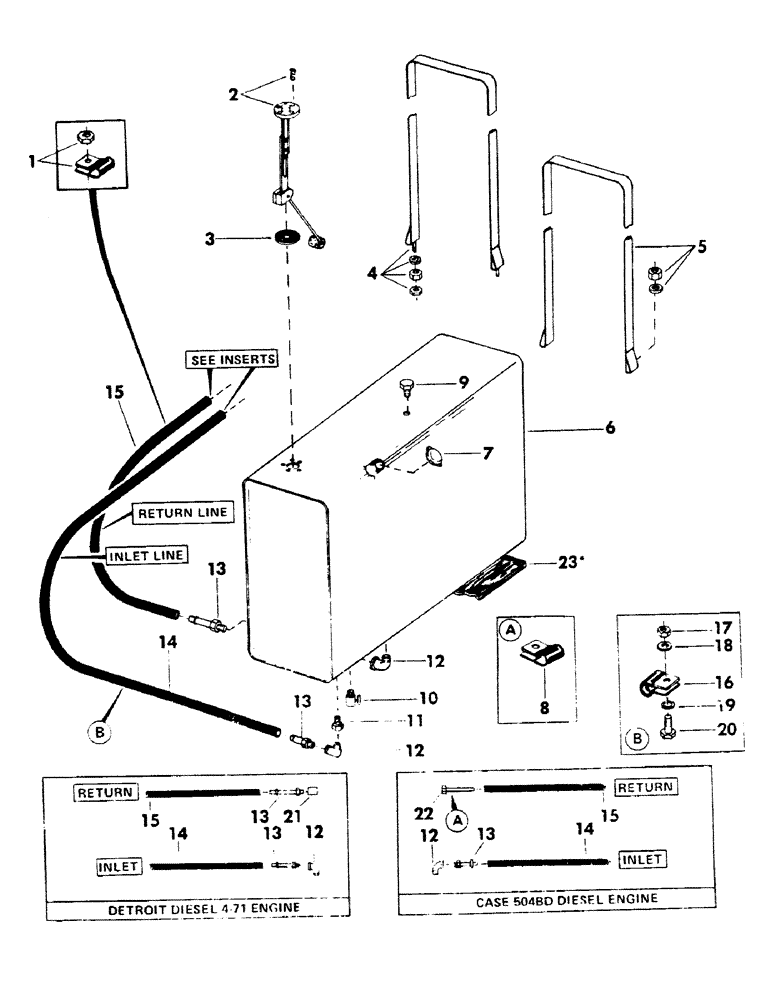

Запчасти Case 40BLC (058) - FUEL TANK AND LINES (02) - FUEL SYSTEM

1

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

hose

6шт.

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2"

3шт.

2

S502600

SENDER UNIT

SENDING UNIT, fuel gauge - (Used with 75 gallon tank)

1шт.

S506798

SENDER UNIT

SENDING UNIT, fuel guage - (Used with 100 gallon tank)

1шт.

174-100

SCREW,Sl Rnd Hd, #10 - 32 x 3/4"

machine - no. 10 NF x 3/4"

5шт.

129-37

NUT,#10-32

1шт.

S75856

WASHER

1шт.

Change in listing

1шт.

3

S49745

GASKET

GASKET, fuel guage sending unit

1шт.

4

S224324

STRAP, fuel tank mounting - (Used with 100 gallon tank)

2шт.

195-103

WASHER,5/16"

flat - 3/8"

4шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

87016560

JAM NUT,Jam, 3/8"-16, G5

4шт.

5

S93863

STRAP

fuel tank mounting - (Used with 75 gallon tank)

2шт.

S224324

STRAP, fuel tank mounting - (Used with 100 gallon tank)

2шт.

Change in listing

1шт.

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

4шт.

195-103

WASHER,5/16"

flat - 3/8"

4шт.

6

S502212

TANK

fuel - 75 gallon capacity

1шт.

S604390

TANK, fuel - 100 gallon capacity

1шт.

7

S64019

FILLER CAP

CAP, fuel tank

1шт.

8

214-104

HOSE CLAMP,#9, 9/16", Spring

CLAMP - (Used on Case 504BD diesel engine)

1шт.

9

221-662

PLUG,Hex Hd, 1/4"-18

pipe - (Fuel tank drain)

1шт.

10

S218848

VALVE

drain

1шт.

11

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING, reducing - 3/8" NPT male x 1/4" NPT male

1шт.

12

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

90 degree - 1/4" NPT male x 1/4" NPT female

4шт.

13

220-3

FITTING

INSERT, hose

5шт.

14

S63654

HOSE

fuel line - (Bulk) - 3/8" ID x 112" - (Used on Case 504BD diesel engine)

1шт.

S63654

HOSE

fuel line - (Bulk) - 3/8" ID x 120" - (Used on Detroit diesel 4-71 engines)

1шт.

15

S63654

HOSE

fuel line - (Bulk) - 3/8" ID x 120" - (Used on Case 504BD diesel engine

1шт.

S63654

HOSE

fuel line - (Bulk) - 3/8" ID x 136" - (used on Detroit diesel 4-71 engines)

1шт.

16

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

hose - (Used on units with Case 504BD diesel engine)

1шт.

S86530

CLAMP

hose - (Used on units with Detroit diesel 4-71 engine)

1шт.

17

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC - (Used on units with Case 504BD diesel engine)

1шт.

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC - (Used on units with Detroit diesel 4-71 engine)

1шт.

18

195-525

WASHER,3/8", SAE

flat - 1/2"

1шт.

19

192-21

LOCK WASHER,3/8"

WASHER, lock - 1/2"

1шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

21

221-336

COUPLING,Pipe, 1/4" NPT

1шт.

22

S209418

LINE, fuel

1шт.

23

S224325

PAD

neoprene

1шт.
