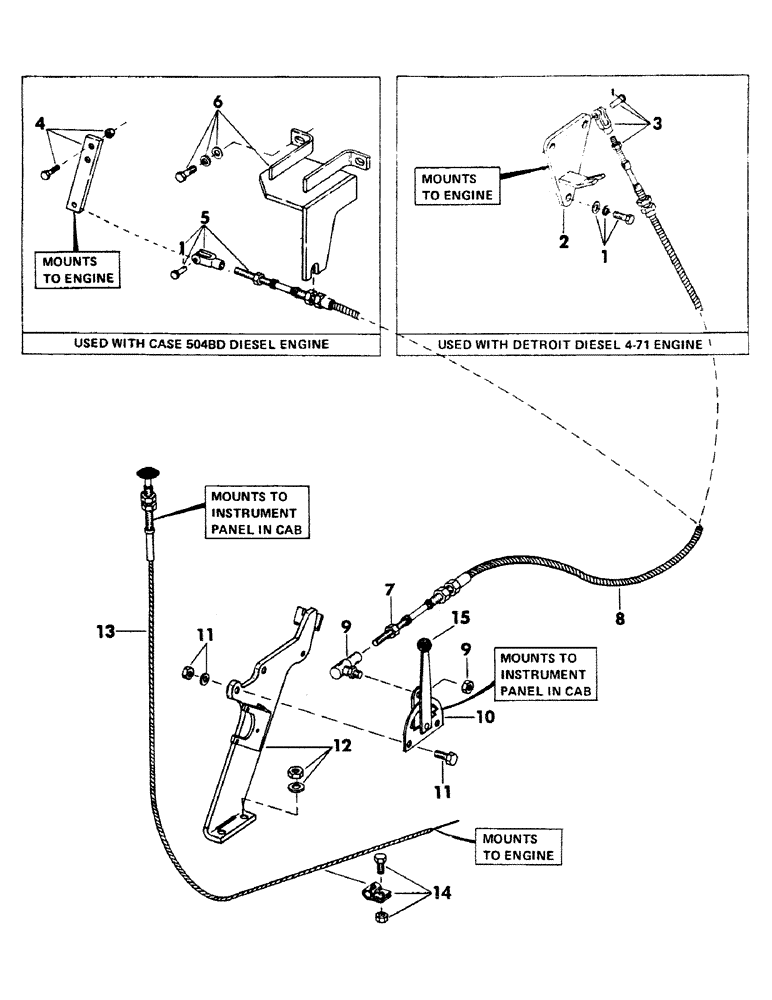

Запчасти Case 40BLC (060) - THROTTLE AND SHUT-OFF CONTROL CABLES (01) - ENGINE

1

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

(Replaces cpsw on engine) Hex, 7/16"-14 x 1 1/4", G5

1шт.

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

25-2316

SLOTTED NUT

WASHER, flat - 7/16"

1шт.

113-317

SCREW,Locking, 7/16"-14 x 1 1/4", G8

CPSW - 1/2" NC x 1-1/4" gr 5 - (Not illustrated)

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2"

2шт.

2

S211614

BRACKET

cable support -, Serial Range: (Mounts-engine)

1шт.

3

S82381

YOKE

1шт.

S10736

PIN

clevis - 5/16" x .734" grip length

1шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

4

S92444

BAR

LEVER, throttle control

1шт.

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

CPSW - 1/4" NC x 7/8" gr 5

2шт.

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC

2шт.

5

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE

1шт.

S10714

CLEVIS PIN

PIN - 1/4" x .648" grip length

1шт.

132-324

COTTER PIN,7/64" x 3/4"

Pin, Split (Cotter), 7/64" x 3/4"

1шт.

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

6

S505829

BRACKET

cable support

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

192-103

LOCK WASHER,#4

WASHER, flat - 3/8"

2шт.

7

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

8

S219334

CABLE

throttle

1шт.

9

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT, ball

1шт.

131-498

LOCK NUT,1/4"-28, GB

NUT - 1/4" NF

1шт.

10

S91894

CONTROL LEVER

LEVER, throttle

1шт.

11

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

195-518

WASHER,1/4", SAE

flat - 1/4"

2шт.

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC

2шт.

12

S505702

BRACKET, throttle lever mounting

1шт.

Change in listing

1шт.

196-1

WASHER,13/32" x 13/16" x .089", HDN

flat - 13/32"

2шт.

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8"

2шт.

13

S210620

CABLE, shut off

1шт.

195-102

WASHER,1/4"

flat - 5/16" - (Not illustrated)

1шт.

14

T41928

CLAMP,3/16", Insul, 1/4" Bolt

1шт.

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC

1шт.

15

S94426

KNOB

1шт.
