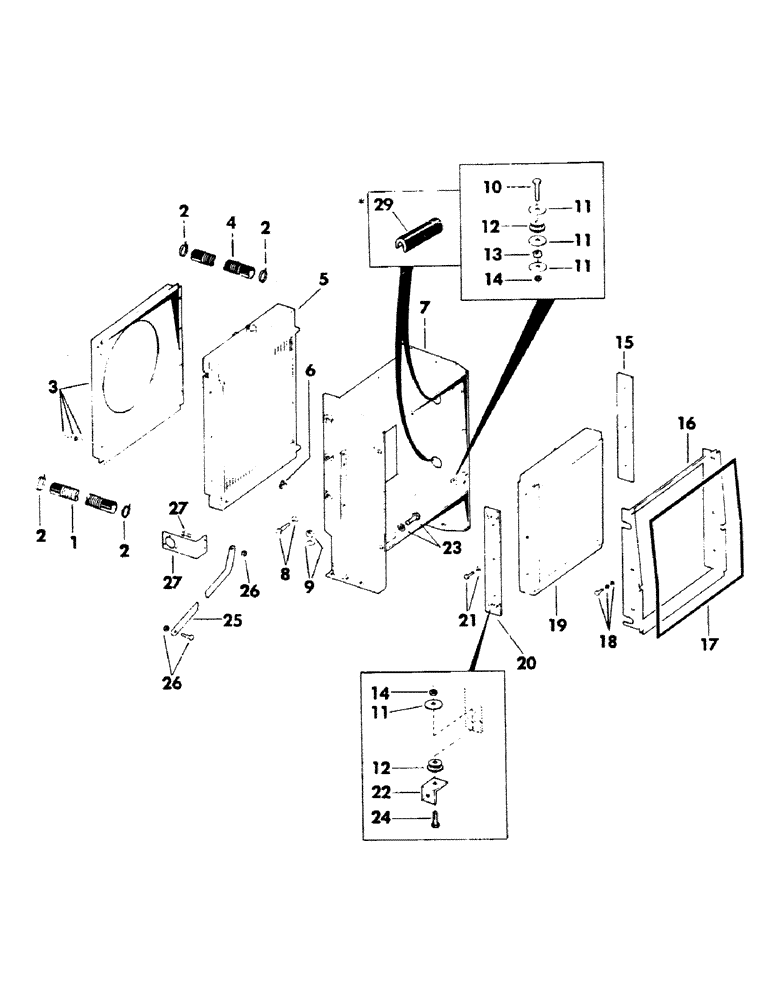

Запчасти Case 40BLC (056) - RADIATOR, OIL COOLER AND HOSES (CONT.), (USED ON UNITS WITH SN. 6275066 AND 6275063 AND AFTER) (01) - ENGINE

1

S95994

HOSE

2.50" ID x 20.00", SAE 20R5, Radiator, Lower; Used on Units With CASE 504BD Diesel Engines

1шт.

S63572

HOSE

radiator - (Lower) - (Used on units with Detroit diesel 4-71 engines)

1шт.

2

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP, hose - (Used on units with Case 504BD diesel engines)

4шт.

214-259

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, hose - (Used on units with Detroit diesel 4-71 engines)

1шт.

3

S602543

SHROUD

fan

1шт.

75-46

SCREW

machine - 1/4" NC x 3/8" gr 5

8шт.

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER, internal tooth lock - 1/4"

8шт.

S7277

WASHER, flat - 1/4"

8шт.

4

S94323

RADIATOR HOSE,2.50" ID x 8.25", SAE 20R4 CLASS SC

- Upper - (Used on units with Case 504BD diesel engines) 2.50" ID x 8.25", SAE 20R4 CLASS SC

1шт.

S83666

HOSE

radiator - (Upper) - (Used on units with Detroit diesel 4-71 engines)

1шт.

5

S610437

RADIATOR - (Used on units with Case 504BD diesel engines) - (Includes item 28)

1шт.

S608496

RADIATOR - (Used on units with Detroit diesel 4-71 engines) - (Includes item 28)

1шт.

6

S49610

VALVE

radiator drain

1шт.

7

S609466

BRACKET, radiator and cooler mounting - (Used on units with Case 504BD diesel engines)

1шт.

S608473

BRACKET, radiator and cooler mounting - (Used on units with Detroit diesel 4-71 engines)

1шт.

8

S76819

STEP BOLT

BOLT, shoulder - 5/16" NC x 1-5/8" gr 5

6шт.

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

6шт.

9

131-492

NUT,1/2"-13

NUT, self locking - 1/2" NC

6шт.

S84753

WASHER

flat - 21/32"

6шт.

10

S2471

BOLT

CPSW - 7/16" NC x 2-1/2" gr 5 - (Mounts items 11 thru 14 to hinge on item 7 and hinge on bottom of item 15)

2шт.

11

S98895

WASHER

8шт.

12

S98153

MOUNTING PARTS

MOUNT, lord

4шт.

13

S105390

SPACER

2шт.

14

131-70

NUT,1/2"-13, GB

NUT, self locking - 7/16" NC

4шт.

15

S228785

BRACKET, cooler mounting - (Left hand)

1шт.

16

S608474

SHROUD, air duct

1шт.

17

S76711

SEAL

STRIP, weather - (Bulk) - 1 piece x 130" long

1шт.

18

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

195-103

WASHER,5/16"

flat - 3/8"

6шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

19

S609190

COOLER, oil

1шт.

20

S228784

BRACKET, cooler mounting - (Right hand)

1шт.

21

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

6шт.

22

S105389

BRACKET, angle

2шт.

23

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(Mounts item 22 to item 7) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

92-9

BEARING WASHER,9/16"

2шт.

24

113-429

BOLT,Hex, 1/2" - 13 x 5", Gr 5

CPSW - 7/16" NC x 2" gr 5 (Mounts item 22 to hinge on item 20)

2шт.

25

S222081

BRACKET, support

1шт.

26

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

1шт.

195-104

WASHER,3/8"

plain - 7/16"

1шт.

27

S220540

BRACKET, relay mounting

1шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

1шт.

28

S89404

CAP

radiator - (7 lbs. pressure)

1шт.

29

S62318

MOLDING, rubber - (Bulk) - 2 pieces 20" long

1шт.
