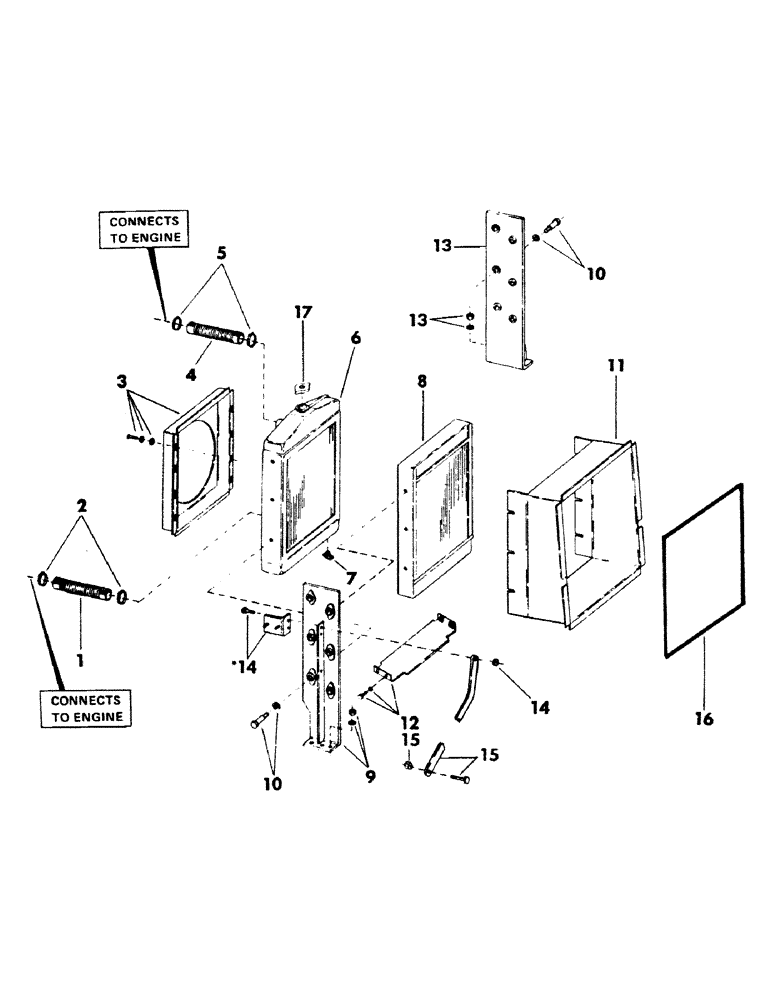

Запчасти Case 40BLC (054) - RADIATOR, OIL COOLER AND HOSES, (USED ON UNITS WITH SN. 450 THRU 6275055 AND 6275057 THRU 6275062) (01) - ENGINE

1

S95994

HOSE

2.50" ID x 20.00", SAE 20R5, Radiator, Lower; Used on Units With CASE 504BD Diesel Engines

1шт.

S63572

HOSE

lower radiator - (Used on units with Detroit Diesel 4-71 engines)

1шт.

2

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP, hose - (Used on units with Case 504BD diesel engines)

2шт.

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- (Used on units with Detroit diesel 4-71 engines) #36, 1.81/2.75 Type F Worm

2шт.

3

S602543

SHROUD

fan - (Used on units with Case 504BD diesel engines)

1шт.

S602535

SHROUD, fan - (Used on units with Detroit diesel 4-71 engines)

1шт.

75-46

SCREW

machine - 1/4" NC x 3/8" gr 5

8шт.

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER, internal tooth lock - 1/4"

8шт.

195-101

WASHER,3/16"

flat - 1/4"

8шт.

4

S94323

RADIATOR HOSE,2.50" ID x 8.25", SAE 20R4 CLASS SC

- Upper (Used on units with Case 504BD diesel engines) 2.50" ID x 8.25", SAE 20R4 CLASS SC

1шт.

S83666

HOSE

upper radiator - (Used on units with Detroit diesel 4-71 engines)

1шт.

5

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP, hose - (Used on units with Case 504BD diesel engines)

2шт.

214-259

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, hose - (Used on units with Detroit diesel 4-71 engines)

2шт.

6

S600781

RADIATOR

- (Used on units with Case 504BD diesel engines) - (Includes item 17)

1шт.

S57279

RADIATOR - (Used on units with detroit diesel 4-71 engines) - (Includes item 17)

1шт.

7

S49610

VALVE

radiator drain

1шт.

8

S601960

COOLER, oil

1шт.

9

S505876

BRACKET, radiator and cooler mounting - (Right hand) - (Used on units with case 504BD diesel engines)

1шт.

S505855

BRACKET, radiator and cooler mounting - (Right hand) - (Used on units with Detroit diesel 4-71 engines)

1шт.

195-15

WASHER,#12

flat - 1/2"

3шт.

131-492

NUT,1/2"-13

NUT, self locking - 1/2" NC

3шт.

10

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

6шт.

S76819

STEP BOLT

BOLT, shoulder - 5/16" NC x 1-5/8" gr 5

6шт.

11

S602544

SHROUD - (Used on units with Case 504BD diesel engines)

1шт.

S602534

SHROUD

- (Used on units with Detroit diesel 4-71 engines)

1шт.

12

S224312

BRACKET, radiator to cooler - (Upper and lower) - (Used on units with Detroit diesel 4-71 engines)

2шт.

S224310

BRACKET, radiator to cooler - (Upper) - (Used on units with Case 504BD diesel engines)

1шт.

S224314

BRACKET, radiator to cooler - (Lower) - (Used on units with Case 504BD diesel engines)

1шт.

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

195-521

WASHER,5/16", SAE

flat - 11/32"

8шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

13

S505875

BRACKET, radiator and cooler mounting - (Left hand) - (Used on units with Case 504BD diesel engines)

1шт.

S505857

BRACKET, radiator and cooler mounting - (Left hand) - (Used on units with Detroit diesel 4-71 engines)

1шт.

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2"

3шт.

131-492

NUT,1/2"-13

NUT, self locking - 1/2" NC

2шт.

14

S220540

BRACKET, relay mounting - (Supersedes S219961)

1шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

2шт.

15

S222081

BAR, support

1шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

1шт.

16

S76711

SEAL

STRIP, weather - 1 piece x 150" long

1шт.

17

S89404

CAP

radiator - (7 PSI)

1шт.
