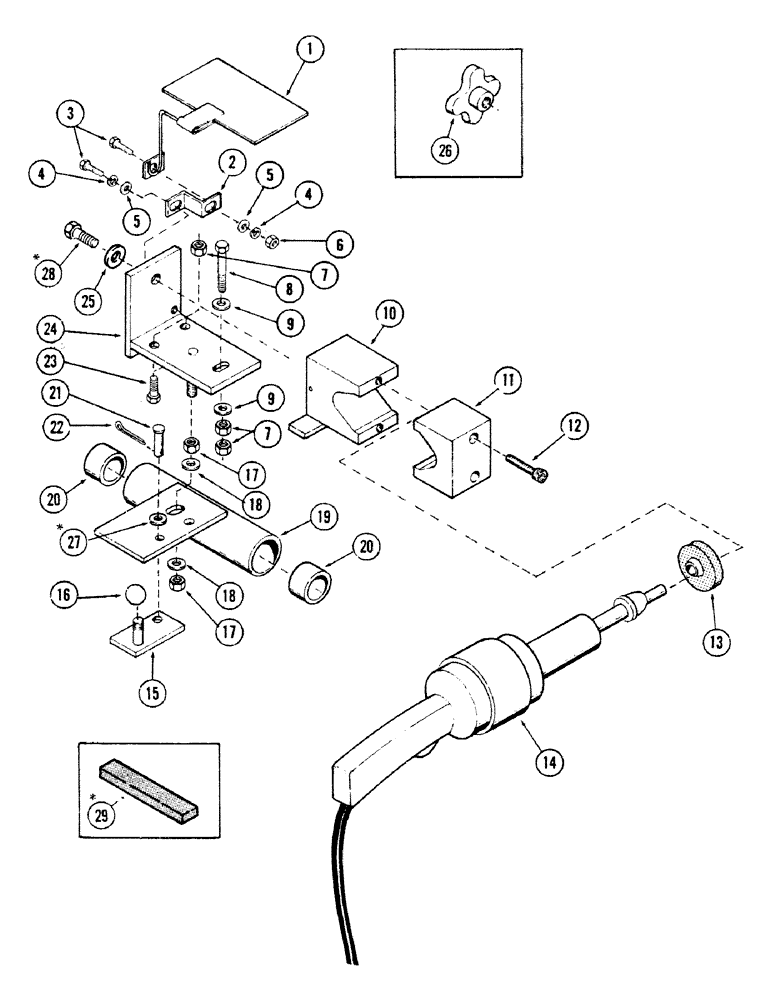

Запчасти Case 40BLC (356) - TOOL GRINDER STAND AND ATTACHING PARTS, (USED WITH ROTARY CUTTER) (18) - ATTACHMENT ACCESSORIES

1

S108878

SHIELD

1шт.

2

S108882

BRACKET, shield mtg.

1шт.

3

S2401

BOLT

CPSW - 3/8" NC x 1" gr 5

2шт.

4

S4397

WASHER

lock - 3/8"

2шт.

5

S94625

WASHER

flat - 3/8"

2шт.

6

S4222

NUT

- 3/8" NC

1шт.

7

86632558

JAM NUT,Jam, 1/2"-13, G5

NUT, jam - 1/2" NC

4шт.

8

S12211

BOLT

CPSW - 1/2" NC x 3-1/2" gr 5

1шт.

9

S86132

WASHER

flat - 1/2"

2шт.

10

S232263

CLAMP

ASSEMBLY

1шт.

11

S232265

CLAMP

1шт.

12

S2096

SPECIAL BOLT

CPSW, socket head - 1/4" NC x 2-1/4" gr 8

2шт.

13

S113297

WHEEL (STEERING)

WHEEL, grinding - (Supersedes S105942)

24шт.

Change in listing

1шт.

14

REF

INSTRUCTION

GRINDER - (For breakdown, see page 224-50)

1шт.

15

S229421

LATCH ASSY.

LATCH

1шт.

16

S108872

KNOB

1шт.

17

86632557

JAM NUT,Jam, 3/4"-10, G5

NUT - 3/4" NC

2шт.

18

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

flat - 3/4"

2шт.

19

S237886

HOUSING ASSY.

HOUSING - (Supersedes S229419)

1шт.

Change in listing

1шт.

20

S105943

BEARING

2шт.

21

S10742

PIN

clevis - 5/16" x 1.266" grip length

1шт.

22

S4626

PIN, cotter - 1/8" x 3/4" long

1шт.

23

S12206

CPSW - 1/2" NC x 1-3/4" gr 5

2шт.

24

S232261

BRACKET

1шт.

25

S92353

WASHER

flat - 41/64"

1шт.

26

S108873

KNOB - (Used on early units)

1шт.

Change in listing

1шт.

27

S7385

INSTRUCTION

WASHER - 3/8"

1шт.

Added listing

1шт.

28

S3504

CPSW - 5/8" NC x 2" gr 5

1шт.

Added listing

1шт.

29

S113999

STONE, grinding wheel dressing

1шт.

Added listing

1шт.
