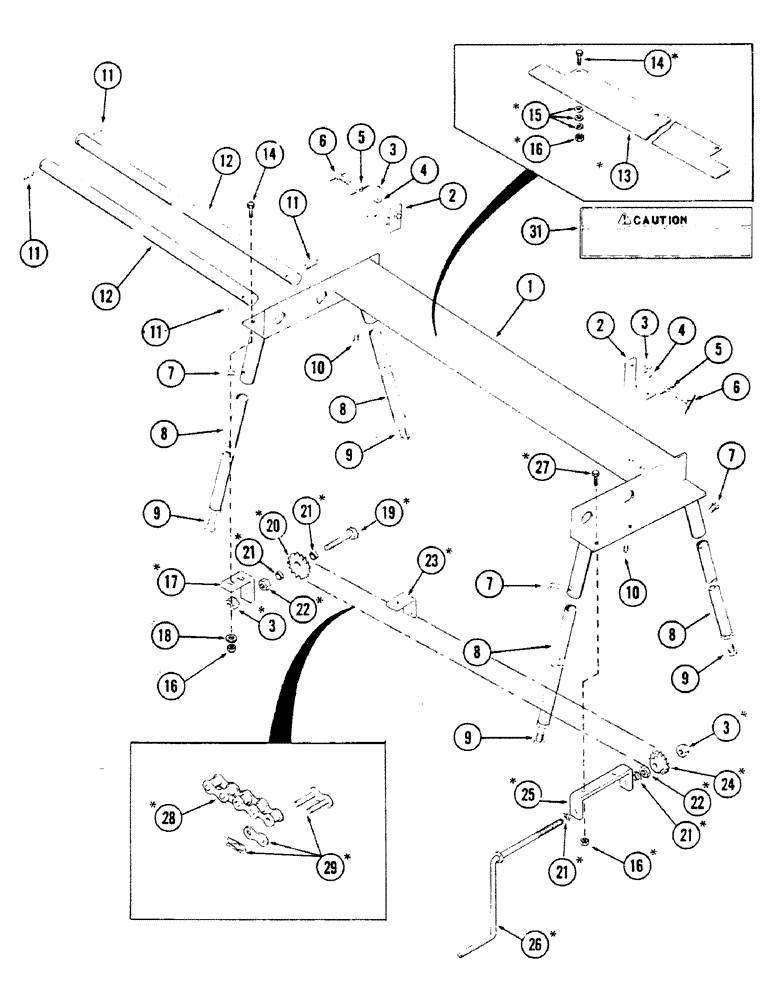

Запчасти Case 40BLC (354) - TOOL GRINDER STAND AND ATTACHING PARTS, (USED WITH ROTARY CUTTER) (18) - ATTACHMENT ACCESSORIES

1

S510261

FRAME ASSY

FRAME

1шт.

2

S229424

ANGLE

2шт.

3

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

6шт.

4

S7395

WASHER

flat - 1/2"

4шт.

5

S237131

NUT

2шт.

6

S237643

BOLT (MACHINE)

BOLT, center

2шт.

7

S2349

BOLT

CPSW - 1/4" NC x 1/2" gr 5

4шт.

8

S229422

PIPE

ASSEMBLY - (Supersedes S232259)

4шт.

9

S2502

BOLT (MACHINE)

CPSW - 5/8" NC x 1-1/2" gr 5

4шт.

10

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" gr 5

4шт.

11

S5414

PIN, ROLL

- 2.26" x 1.875"

4шт.

12

S105951

SHAFT

2шт.

13

S237080

PLATE ASSY.

COVER

1шт.

14

S2425

CPSW - 3/8" NC x 1-3/8" gr 5

5шт.

15

S7385

INSTRUCTION

WASHER - 3/8"

9шт.

16

S17167

INSTRUCTION

NUT - 3/8" NC

7шт.

17

S114965

BRACKET

1шт.

18

S94625

WASHER

hard - 7/16"

2шт.

19

S2470

BOLT

CPSW - 1/2" x 2-1/4" gr 5

1шт.

20

S237947

DRIVE SPROCKET

SPROCKET

1шт.

21

S115001

FLANGED BEARING,0.502" ID x 0.627" OD x 0.3125"

BEARING

2шт.

22

86632558

JAM NUT,Jam, 1/2"-13, G5

NUT - 1/2" NC

2шт.

23

S115011

ANGLE

1шт.

24

S115002

DRIVE SPROCKET

SPROCKET

1шт.

25

S237029

BRACKET

1шт.

26

S237050

CRANK

1шт.

27

131-262

CPSW - 3/8" NC x 1-1/8" gr 5

2шт.

28

S115015

CHAIN

1шт.

29

S103144

LINK

master

2шт.

30

S614704

KIT

tool sharpening - includes items 13 thru 29

1шт.

31

321-5281

DECAL

sharpening caution

1шт.
