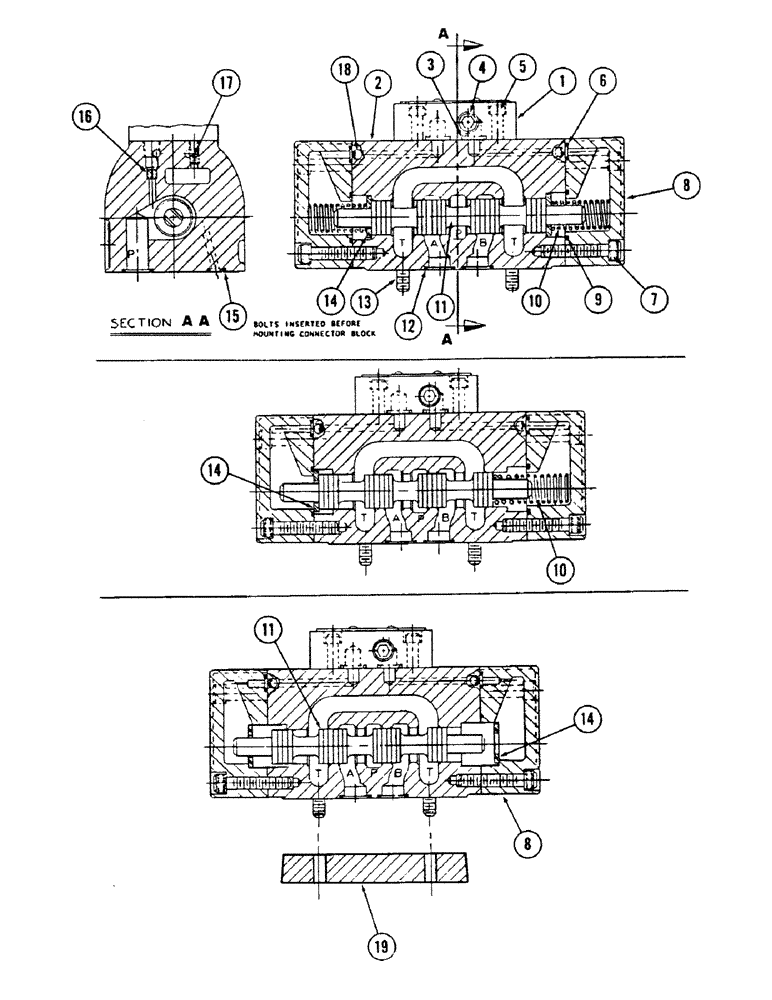

Запчасти Case 40BLC (350) - DIRECTIONAL VALVE, (USED WITH ROTARY CUTTER) (18) - ATTACHMENT ACCESSORIES

S509950

VALVE

directional

1шт.

S233332

VALVE

1шт.

1

S110421

BLOCK

connector

1шт.

2

S233420

BODY, valve

1шт.

3

S110424

O-RING

"O" RING - .375" ID x .500" OD

4шт.

4

S110422

PLUG

pipe - 1/8" NPT

2шт.

5

S110423

SCREW

- no. 10 - 24 NC x 7/8"

4шт.

6

S110425

O-RING,0.07" Thk x 0.208" ID, -9, Cl 5, 75 Duro

"O" RING - .219" ID x .344" OD

2шт.

7

S110427

SCREW

- 1/4" NC x 1-1/4"

6шт.

8

S110426

CAP

end

2шт.

9

S110431

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

"O" RING - .875" ID x 1" OD

2шт.

10

S110432

SPRING

2шт.

11

S110429

SPOOL

1шт.

12

S110430

O-RING

"O" RING - .500" ID x .625" OD

5шт.

13

S110428

SCREW

- 1/4" NC x 1-1/2"

4шт.

14

S110433

WASHER

2шт.

15

S110507

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - .250" ID x .375" OD

2шт.

16

S110508

PLUG

- no. 10 - 24 NC x 1/4"

1шт.

17

S110509

PLUG

- no. 10 - 24 NC x 3/16"

1шт.

18

S110510

BALL

steel - 3/16"

2шт.

19

S233333

PLATE

1шт.
