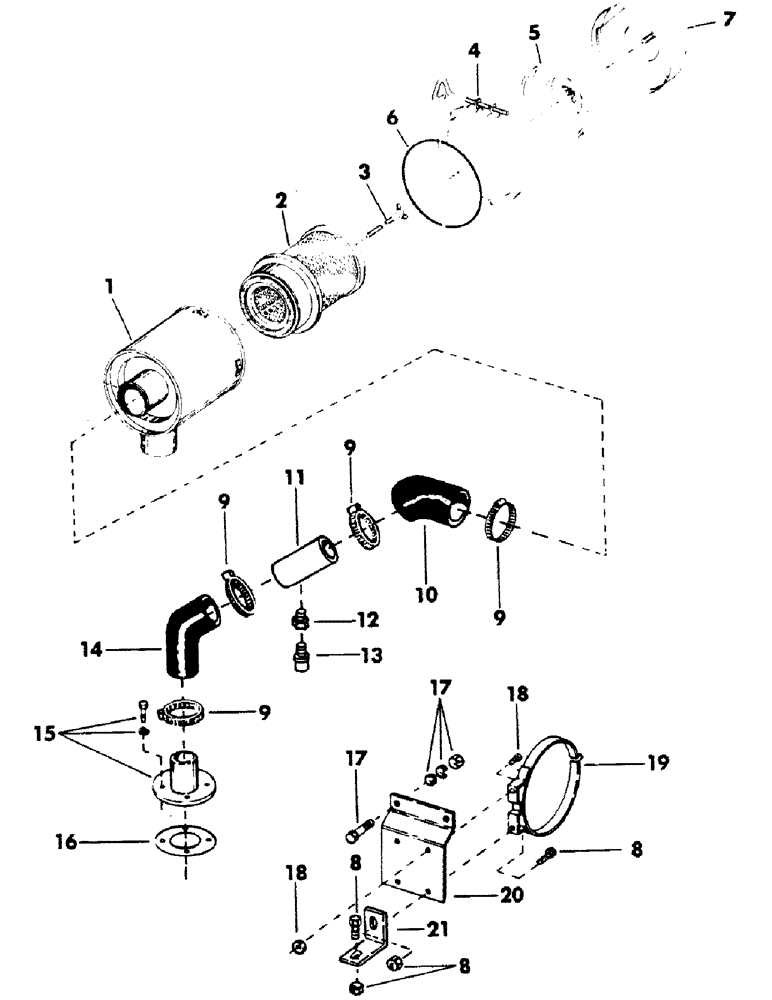

Запчасти Case 40BLC (052) - AIR CLEANER AND ATTACHING PARTS FOR: DETROIT DIESEL 4-71 ENGINE. (01) - ENGINE

S505882

CLEANER, air - complete (Consists of items 1 thru 7)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY, air cleaner

1шт.

2

S221313

FILTER, ELEMENT

ELEMENT, air cleaner (With gasket)

1шт.

3

D50939

BOLT (SPREADER)

BOLT ASSEMBLY

1шт.

4

L30936

CLAMP

1шт.

5

S221314

BAFFLE

1шт.

6

L30943

GASKET

"O" RING

1шт.

7

S221315

COVER

CUP

1шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

2шт.

9

214-361

CLAMP,#108, 4.25"-4.56", T-Bolt

4шт.

10

S92499

ELBOW

45 degree rubber

1шт.

11

S221350

TUBE 9" L

1шт.

12

D36264

FITTING

filtered

1шт.

13

A59569

INDICATOR

air restirctor

1шт.

14

S80631

90 ELBOW,58.0 mm ID mm ID

ELBOW, 4.00" ID x 5.80", 90-Degree, Rubber

1шт.

15

S206577

PIPE

ADAPTER - (Mounts to engine intake)

1шт.

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

16

S69424

GASKET

1шт.

17

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2"

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

CPSW - 1/8" NC x 1" gr 5

3шт.

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

3шт.

19

S219922

BAND

mounting

1шт.

20

S219891

BRACKET, air cleaner mounting - (Used on units with serial number 450 thru 6275055 and 6275057 thru 6275062) - (Not illustrated)

1шт.

Change in listing

1шт.

S229511

BRACKET, air cleaner mounting - (Used on units with serial number 6275056 and 6275063 and after) - (Illustrated)

1шт.

Added listing

1шт.

21

S94091

BRACKET, angle mounting - (Not illustrated) - (Used on units with serial number 450 thru 6275055 and 6275057 thru 6275062)

1шт.

Change in listing

1шт.

S105978

BRACKET, angle mounting - (Illustrated) - (Used on units with serial number 6275056 and 6275063 and after)

1шт.

Added listing

1шт.
