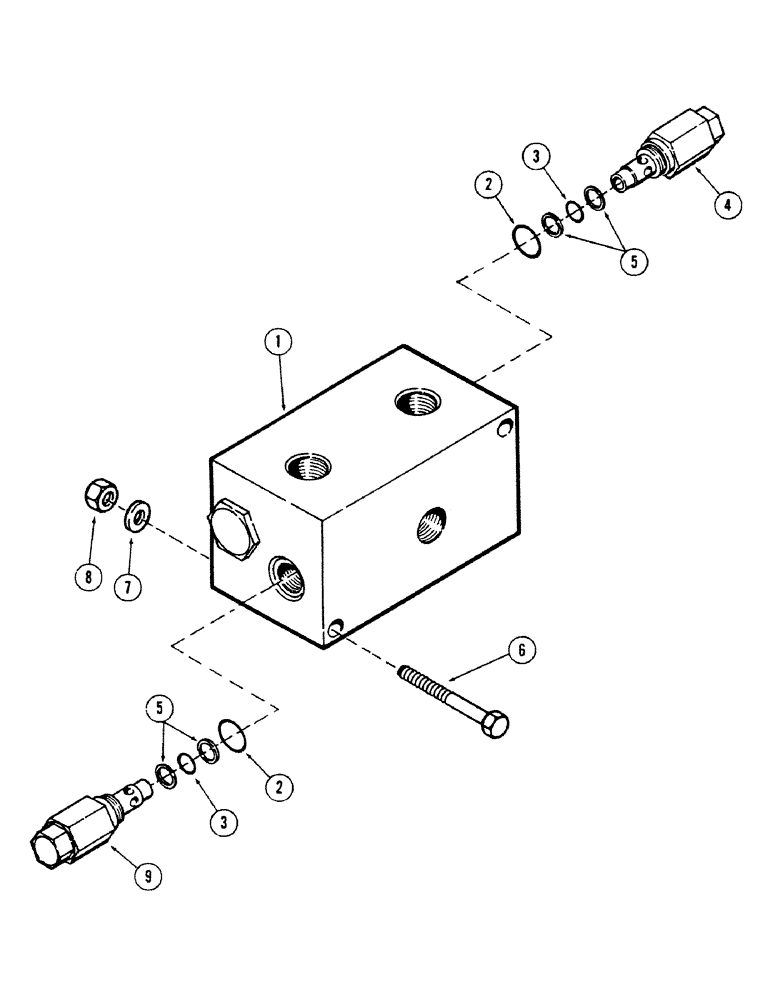

Запчасти Case 40BLC (348) - DUAL RELIEF VALVE, (USED WITH ROTARY CUTTER) (18) - ATTACHMENT ACCESSORIES

S510454

VALVE, dual relief

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

"O" RING - .686" ID x .875" OD

2шт.

3

L33213

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

"O" RING - .625" ID x .750" OD

2шт.

4

S110253

CARTRIDGE

- (Set at 2500 PSI)

1шт.

5

S97513

RING

back-up

4шт.

6

S2414

BOLT

CPSW - 3/8" NC x 4-1/4" gr 5 - (Valve mounting)

2шт.

7

S7385

INSTRUCTION

WASHER, flat - 3/8"

2шт.

8

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

2шт.

9

S110253

CARTRIDGE

- (Set at 1700 PSI)

1шт.
