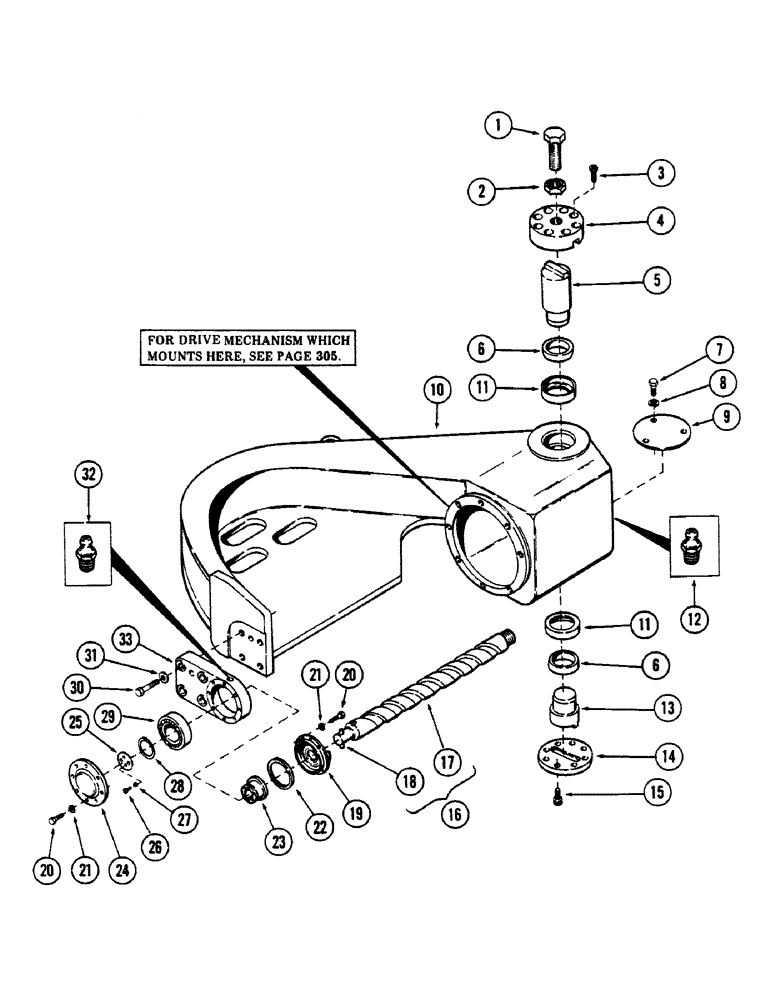

Запчасти Case 40BLC (302) - CUTTER ARM AND ATTACHING PARTS, (USED WITH ROTARY CUTTER) (18) - ATTACHMENT ACCESSORIES

1

S111051

BOLT

CPSW - 1-1/2" NC x 4" gr 8

1шт.

2

S4273

NUT

jam - 1-1/2" NC

1шт.

3

S3548

SCREW

CPSW, socket head - 1/2" NC x 2-1/2" Gr 8

8шт.

4

S232027

COVER

1шт.

5

S232023

PIN

1шт.

6

S229985

RACE

BEARING, thrust - inner race

2шт.

7

S2465

BOLT (MACHINE)

CPSW - 1/2" NC x 1" gr 5

3шт.

8

S86132

WASHER

flat - 1/2"

3шт.

9

S108881

COVER

1шт.

10

S510435

ARM

rotary cutter

1шт.

11

S229051

THRUST BEARING,3.3" ID x 4.75" OD x 1.405"

BEARING, outer race

2шт.

12

S12031

FITTING,1/8"-27 x .66 lg

lube - 1/8" NPT

3шт.

13

S232022

PIN

1шт.

14

S232026

COVER

1шт.

15

S3542

SCREW

CPSW - 1/2" NC x 1-1/4" gr 8

8шт.

16

S234834

AUGER

ROTARY CUTTER ASSEMBLY

3шт.

17

S611926

CUTTER BAR

ROTARY, cutter

1шт.

18

S106649

DOWEL

PIN, dowel

1шт.

19

S610865

COVER

1шт.

20

S2401

BOLT

CPSW - 3/8" NC x 1" gr 5

14шт.

21

S4397

WASHER

lock - 3/8"

14шт.

22

S105675

OIL SEAL

SEAL, oil

1шт.

23

S510427

BUSHING

1шт.

24

S510836

COVER

1шт.

25

S230014

COVER

1шт.

26

S14466

SCREW, machine - No. 8 NC x 3/8"

4шт.

27

S7479

WASHER

lock - No. 8

4шт.

28

S105810

RING, SNAP

1шт.

29

S229050

SPHERICAL BEARING,65mm ID x 120mm OD x 31mm

BEARING, self aligning

1шт.

30

S86014

BOLT

CPSW - 3/4" NC x 3" gr 8

4шт.

31

S84752

WASHER

flat

4шт.

32

S12031

FITTING,1/8"-27 x .66 lg

lube - 1/8" NPT

1шт.

33

S510428

HOUSING ASSY.

HOUSING

1шт.
