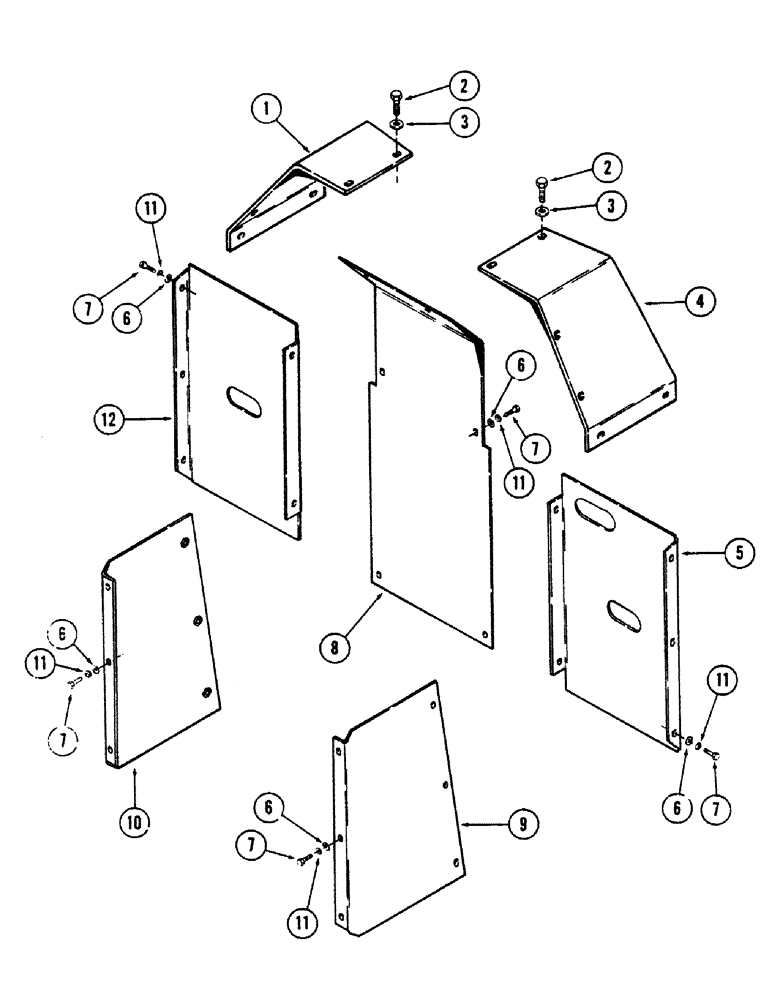

Запчасти Case 40BLC (300) - GUARDS AND ATTACHING PARTS, (USED WITH ROTARY CUTTER) (18) - ATTACHMENT ACCESSORIES

1

S511370

COVER

GUARD - (Right hand)

1шт.

2

S2465

BOLT (MACHINE)

CPSW - 1/2" NC x 1" gr 5

12шт.

3

S86132

WASHER

flat - 17/32"

12шт.

4

S511371

COVER

GUARD - (Left hand)

1шт.

5

S512156

SHEET

1шт.

6

S96099

WASHER

flat - 13/32"

22шт.

7

S2401

BOLT

CPSW - 3/8" NC x 1" gr 5

22шт.

8

S511374

COVER

1шт.

9

S510442

SHEET

- (Left hand)

1шт.

10

S510443

SHEET

- (Right hand)

1шт.

11

S4397

WASHER

lock - 3/8"

6шт.

12

S511372

SHEET

1шт.
