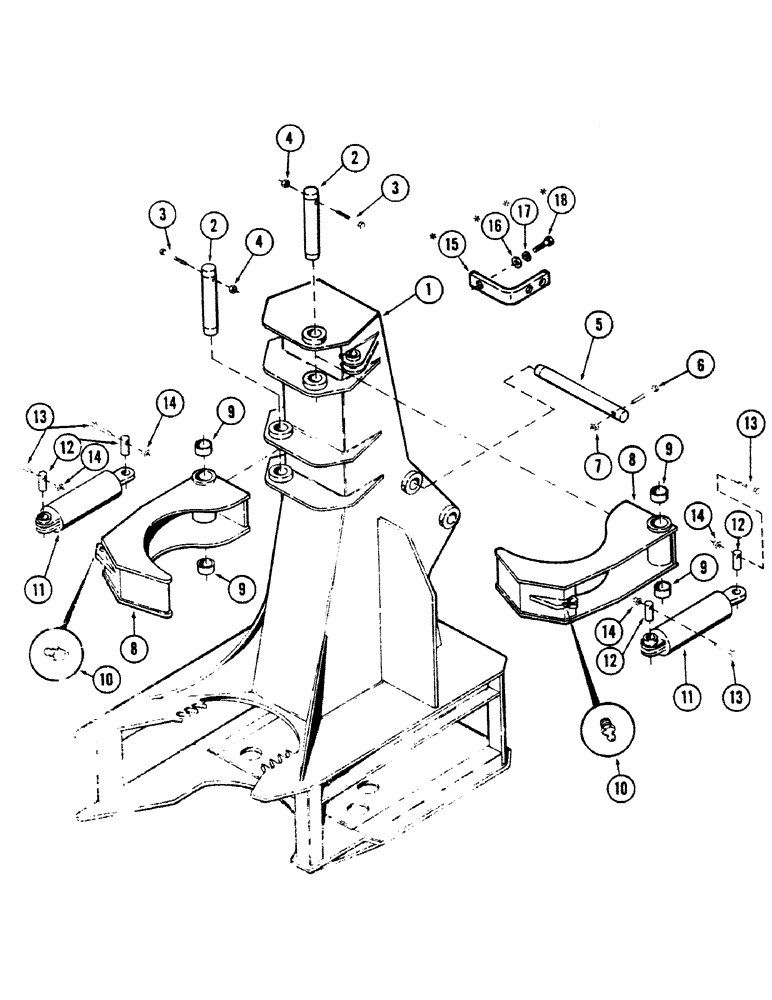

Запчасти Case 40BLC (298) - MAIN FRAME AND ATTACHING PARTS, (USED WITH ROTARY CUTTER) (18) - ATTACHMENT ACCESSORIES

1

S954829

FRAME

rotary cutter main

1шт.

2

S89283M1

PIN - (Grab, Serial Range: arm-frame)

2шт.

3

S2520

BOLT (MACHINE)

CPSW - 5/8" NC x 6" gr 5

2шт.

4

S17171

NUT

self locking - 5/8" NC

2шт.

5

S220251

PIN ASSY.

PIN -, Serial Range: (Frame-boom)

2шт.

6

S82710

BOLT

CPSW - 5/8" NC x 6" gr 5

2шт.

7

S17088

NUT

self locking - 5/8" NC

2шт.

8

S504968

ARM ASSY.

ARM, grab

2шт.

9

S214632

BUSHING

4шт.

10

S12031

FITTING,1/8"-27 x .66 lg

lube - 1/8" NPT - (Straight)

4шт.

11

REF

INSTRUCTION

CYLINDER, grab arm - (For breakdown, see page 218)

2шт.

12

S46134

PIN,37.95mm OD x 98.55mm L

-, Serial Range: (Cylinder-frame)

4шт.

13

S2475

BOLT

CPSW - 1/2" NC x 3-1/2" gr 5

4шт.

14

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

4шт.

15

S234905

BRACKET

mounts relief valve

1шт.

Added listing

1шт.

16

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2"

1шт.

Added listing

1шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

Added listing

1шт.

18

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

Added listing

1шт.
