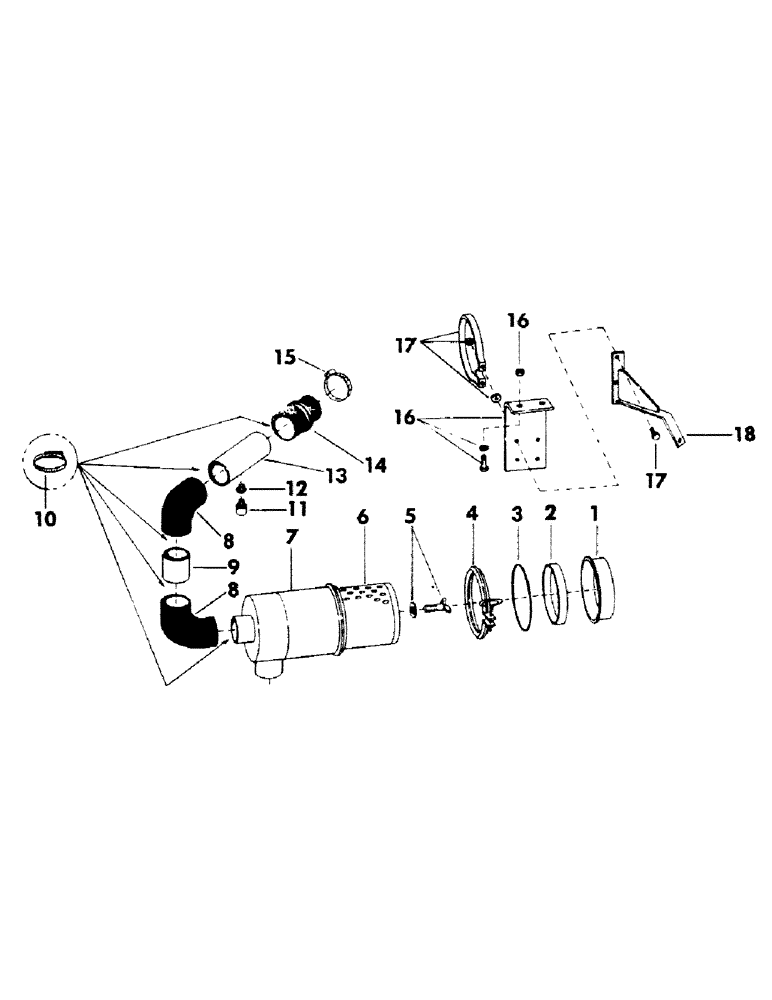

Запчасти Case 40BLC (051) - AIR CLEANER AND ATTACHING PARTS FOR: CASE 504BD DIESEL ENGINE (01) - ENGINE

S505847

CLEANER, air - complete (Consists of items 1 thru 7)

1шт.

1

L33819

CUP

1шт.

2

D50942

BAFFLE

1шт.

3

D50946

GASKET

"O" RING - .187" dia. 9.12" ID

1шт.

4

D50941

CLAMP

1шт.

5

S221107

BOLT (MACHINE)

SCREW ASSEMBLY

1шт.

6

S221106

ELEMENT

air cleaner

1шт.

7

NSS

NOT SOLD SEPARAT

BODY, air cleaner

1шт.

8

S80631

90 ELBOW,58.0 mm ID mm ID

ELBOW, 4.00" ID x 5.80", 90-Degree, Rubber

2шт.

9

S94599

TUBE 4" OD x 3.5" L

1шт.

10

214-361

CLAMP,#108, 4.25"-4.56", T-Bolt

5шт.

11

S59568

INDICATOR, air restrictor

1шт.

12

D36264

FITTING

filtered

1шт.

13

S220421

TUBE 5.25" L

1шт.

14

S92498

REDUCER

HUMP, rubber

1шт.

15

S83025

CLAMP

1шт.

16

S219849

BRACKET, air cleaner mounting

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

95-8

WASHER,1/2"

flat (9/16") 1/2"

2шт.

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

2шт.

17

S219850

BAND

mounting

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

4шт.

195-525

WASHER,3/8", SAE

flat - 3/8"

2шт.

18

S220531

BRACKET, air cleaner mounting -, Serial Range: (Mounts-shroud)

1шт.
