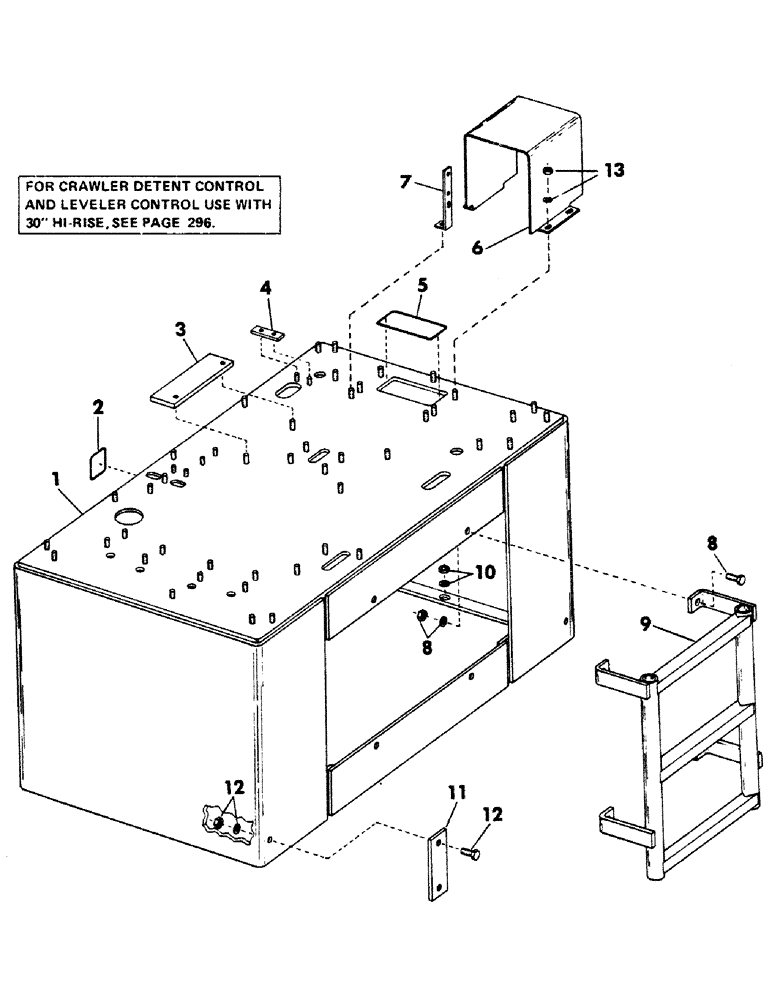

Запчасти Case 40BLC (294) - 30" HI-RISE AND ATTACHING PARTS (18) - ATTACHMENT ACCESSORIES

1

S953027

RISER, 30" high

1шт.

2

S62318

MOLDING, rubber - 11"

1шт.

3

S220626

BAR, spacer - (Seat bracket L.H. side)

1шт.

4

S93635

SPACER - (Control panel support)

1шт.

5

S64206

SEAL

MOLDING, rubber - 26"

1шт.

6

S506777

COVER, heater

1шт.

7

S221817

BRACKET, heater mounting

2шт.

8

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

195-33

WASHER,1/2"

flat - 17/32"

4шт.

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2"

4шт.

9

S506285

ASSEMBLY

LADDER ASSEMBLY

1шт.

10

131-208

SPECIAL NUT,1/2"-13

NUT, self locking - 1/2" NC

15шт.

95-8

WASHER,1/2"

flat 1/2"

15шт.

11

S94618

BRACKET -, Serial Range: (Turntable-riser)

4шт.

12

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

195-33

WASHER,1/2"

flat - 17/32"

8шт.

131-492

NUT,1/2"-13

NUT, self locking - 1/2" NC

8шт.

13

131-463

NUT,3/8"-16

NUT, LOCK, 3/8"-16

6шт.

195-104

WASHER,3/8"

flat

6шт.

14

S506287

CABLE

swing brake - (For attaching parts, see page 116)

1шт.

15

S220635

CABLE

throttle control - (For attaching parts, see page 60)

1шт.

16

S506296

WIRING HARNESS, hi-rise - (Includes plastic electrical connectors) - (Used in between standard instrument panel and turntable wiring harness) - (For attaching parts, see pages 264 thru 268)

1шт.

223-170

CONNECTOR, ELEC

CONNECTOR, plastic electrical - (Female) - (6 contacts) - (Used with wire no's 8, 11, 24, 38, 41 and 70)

1шт.

223-172

CONNECTOR, ELEC

CONNECTOR, plastic electrical - (Female) - (8 contacts) - (Used with wire no's 9, 12, 15, 40, 54 and 59)

1шт.

223-161

CONNECTOR, ELEC

CONNECTOR, plastic electrical - (Male) - (6 contacts) - (Used with wire no's 8, 11, 24, 38, 41 and 70)

1шт.

223-162

CONNECTOR, ELEC

CONNECTOR, plastic electrical - (Male) - (8 contacts) - (Used with wire no's 9, 12, 15, 40, 54 and 59)

1шт.

17

S220642

ROD, connecting - (For attaching parts, see page 92)

1шт.

18

S220631

BELLCRANK - (For attaching parts, see page 90)

1шт.

19

S220638

ROD

connecting - (For attaching parts, see page 90)

1шт.

20

S220633

BELLCRANK - (For attaching parts, see page 90)

1шт.

21

S220639

ROD

connecting - (For attaching parts, see page 92, 94, 117 and 118)

4шт.

22

S93474

ROD, brake - (For attaching parts, see page 132)

1шт.

23

S49608

HOSE

heater - (For attaching parts, see page 288)

125шт.

S49608

HOSE

heater - (For attaching parts, see page 288)

105шт.

S88820

CLAMP

- (With heater hose)

2шт.

24

S77322

CLAMP

- (With swing brake cable support, see page 116)

1шт.

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC - (With S77322 clamp)

1шт.

195-530

WASHER,7/16"

flat - 3/8" - (With S77322 clamp)

1шт.

25

T50103

CLAMP

- (With throttle shut off cable, see page 60)

2шт.

26

S602998

DOOR, left side - (For attaching parts, see page 96)

1шт.

27

S220774

BRACE, top door - (For attaching parts, see page 96)

1шт.

28

S220775

BRACE, front side - (For attaching parts, see page 96)

1шт.
