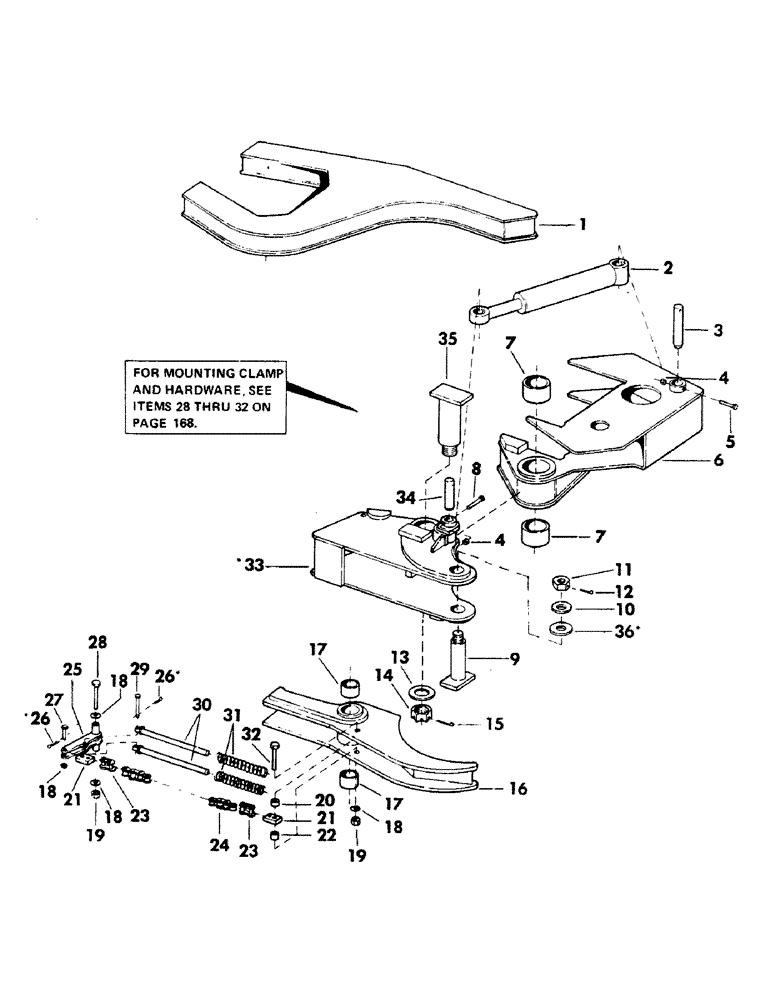

Запчасти Case 40BLC (166) - FELLER BUNCHER COLLECTOR AND ATTACHING PARTS, (USED ON 20" AND 24" FELLER BUNCHER ATTACHMENTS) (18) - ATTACHMENT ACCESSORIES

1

S606648

ARM

stationary

1шт.

2

CYLINDER, collector arm - (For breakdown, see page 220)

1шт.

3

S226291

PIN

- (Cylinder base, Serial Range: end-frame)

1шт.

4

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

2шт.

5

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

6

S606646

FRAME

collector arm - (Includes item 7)

1шт.

7

S202190

BUSHING

2шт.

8

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

9

S226268

PIN ASSY.

PIN - (Secondary arm to primary arm)

1шт.

10

95-24

WASHER,1 1/2" x 3 1/2" x .18"

flat - 1-5/8"

1шт.

11

25-3024

SLOTTED NUT,1 1/2"-6, G5, Hvy

NUT - 1-1/2" NC

1шт.

12

132-82

COTTER PIN,5/32" x 3"

Pin, Split (Cotter), 5/32" x 3"

1шт.

13

95-32

WASHER,2 1/8" x 4 1/2" x .179"

flat - 2-1/8"

1шт.

14

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

NUT - 2" NC

1шт.

15

132-161

COTTER PIN,1/4" x 3 1/2"

Pin, Split (Cotter), 1/4" x 3 1/2"

1шт.

16

S508580

ARM ASSY.

ARM, collector - (Includes grease fitting and item 17)

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT - (Straight)

1шт.

17

S202130

THREADED BUSHING

BUSHING

2шт.

18

195-33

WASHER,1/2"

flat - 9/16"

4шт.

19

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

2шт.

20

S70674

SPACER

1шт.

21

S97577

LUG

2шт.

22

S72151

SPACER

1шт.

23

S103147

LINK

connector

2шт.

24

S99243

CHAIN (CE)

CHAIN, roller

1шт.

25

S226267

LEVER ASSY.

LEVER

1шт.

26

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

2шт.

Change in listing

1шт.

27

S10809

PIN

clevis - 1/2" x 1.516" grip length

1шт.

28

113-2419

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

CPSW - 1/2" NC x 6-1/2" gr 5

1шт.

29

S61972

PIN

clevis - 1/2" x 3.266" grip length

1шт.

30

S226266

GUIDE

2шт.

31

S224394

SPRING

2шт.

32

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

CPSW - 1/2" NC x 3-3/4" gr 5

1шт.

33

S606448

ARM

primary

1шт.

34

S226290

PIN

- (Cylinder rod end to primary arm)

1шт.

35

S226271

PIN ASSY.

PIN - (Frame to primary arm)

1шт.

36

95-30

WASHER

flat - 2" ID

1шт.

Added listing

1шт.
