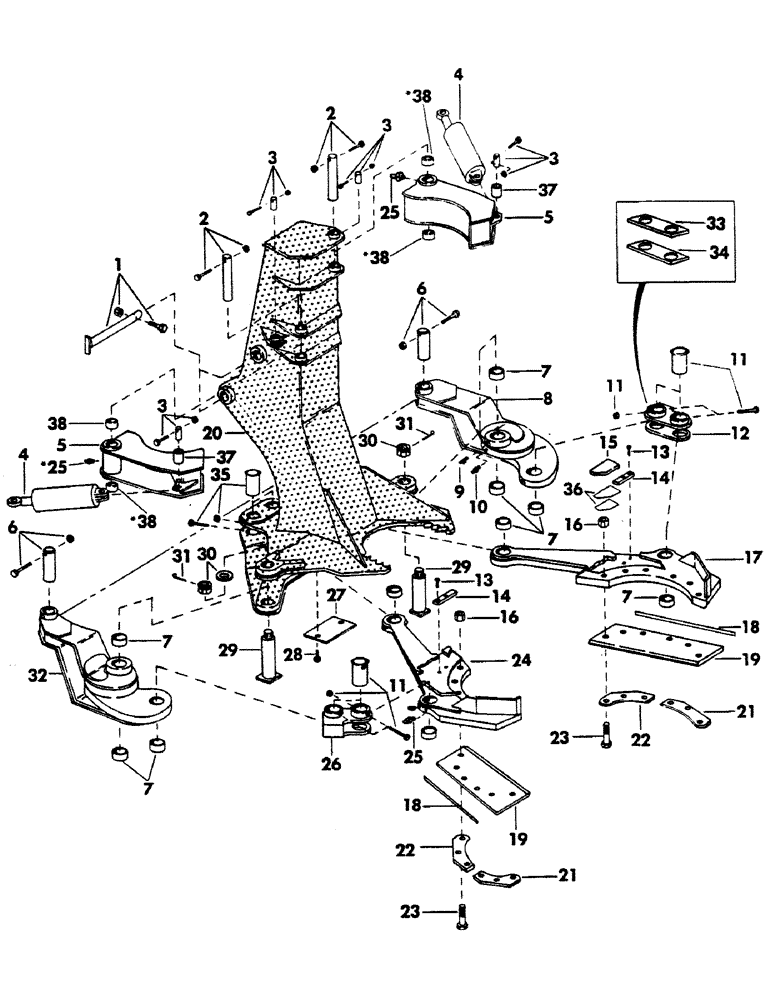

Запчасти Case 40BLC (162) - 24" FELLER BUNCHER AND ATTACHING PARTS (18) - ATTACHMENT ACCESSORIES

1

S220251

PIN ASSY.

PIN - (Feller Buncher to boom and link)

2шт.

26-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

CPSW - 5/8" NC x 6" gr 8

2шт.

131-460

LOCK NUT,5/8"-11

NUT - self locking - 5/8" NC

2шт.

2

S89283

PIN

- (Mounts cylinder to grab arm and frame)

4шт.

113-2232

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

CPSW - 5/8" NC x 6" gr 5

2шт.

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

3

S46134

PIN,37.95mm OD x 98.55mm L

- (Mounts cylinder to grab arm and frame)

4шт.

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

4шт.

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

4шт.

4

CYLINDER, grab arm - (For breakdown, see page 218)

2шт.

5

S504968

ARM ASSY.

ARM, grab - (Includes items 25, 37 and 38)

2шт.

Change in listing

1шт.

6

S89423

PIN

- (Mounts shear, Serial Range: cylinder-lever)

2шт.

13-1292

BOLT,Hex, 3/4" - 10 x 5-3/4", Gr 5

2шт.

131-450

NUT,3/4"-10

NUT, self locking - 3/4" NC

2шт.

7

S88549

BUSHING

2шт.

8

S601430

LEVER - (Left hand) - (Includes items 7, 9, and 10)

1шт.

9

178-869

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" NC x 3/8" long

1шт.

10

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

11

S220197

PIN - (Mounts lever and shear, Serial Range: arm-link)

4шт.

S216375

CPSW

4шт.

129-882

NUT Crown, 1"-8

4шт.

12

S217586

LINK - (Left hand)

1шт.

13

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

14

S218322

BAR, stop

2шт.

15

S89546

BAR

wear - (Used with items 17 and 24)

2шт.

16

S89289

NUT - 1-1/4" NC

12шт.

17

S952545

ARM - (Left hand) - (Includes items 7, 9 and 25)

1шт.

18

S89294

SHIM, knife back-up

1шт.

19

S217496

KNIFE, shear cutting - 7/8" - (Optional)

2шт.

S217497

KNIFE, shear cutting - 3/4" - (Optional)

2шт.

20

S952538

FRAME, Feller Buncher

1шт.

21

S217514

SUPPORT, cutting knive

2шт.

22

S217515

SUPPORT, cutting knife

2шт.

23

26-2096

BOLT,Hex, 1-1/4" - 7 x 6", Gr 8

CPSW - 1-1/4" NC x 6" gr 8

12шт.

24

S952544

ARM - (Right hand) - (Includes items 7, 9 and 25)

1шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT - (Straight)

1шт.

26

S217585

LINK - (Right hand)

1шт.

27

S89369

COVER

1шт.

28

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

29

S217500

PIN ASSY.

PIN - (Mounts, Serial Range: lever-frame)

2шт.

30

129-239

NUT - 2-1/2" NC

2шт.

95-40

WASHER,2 1/2" x 5" x .238"

flat - 2-5/8"

2шт.

31

132-189

PIN, SPLIT (COTTER)

PIN, cotter - 5/16" x 3-1/2" long

2шт.

32

S601431

LEVER - (Right hand) - (Includes items 7, 9 and 10)

1шт.

33

S89817

SHIM - .060" thick - (Used with item 12 and 26)

1шт.

34

S89818

SHIM - .125" thick - (Used with item 12 and 26)

1шт.

35

S217502

PIN

2шт.

S216375

CPSW

2шт.

129-882

NUT Crown, 1"-8

2шт.

36

S89548

SHIM - .060" thick - (Used with item 17 and 24)

1шт.

S89549

SHIM - .125" thick - (Used with item 17 and 24)

1шт.

37

S23796

BUSHING

2шт.

38

S214652

BUSHING

4шт.

Added listing

1шт.
