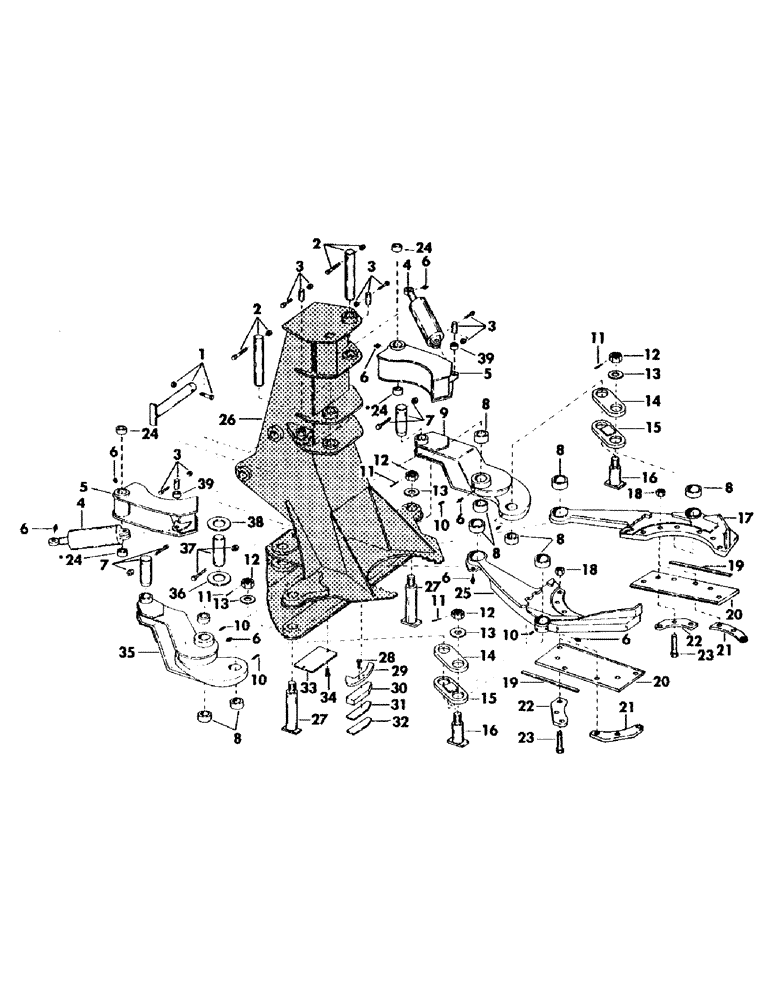

Запчасти Case 40BLC (158) - 20" FELLER BUNCHER AND ATTACHING PARTS (18) - ATTACHMENT ACCESSORIES

1

S22051

PIN - (Feller Buncher to boom and link)

2шт.

26-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

CPSW - 5/8" NC x 6" gr 8

2шт.

131-460

LOCK NUT,5/8"-11

NUT, self locking - 5/8" NC

2шт.

2

S89283

PIN

- (Mounts grab, Serial Range: arm-frame)

2шт.

131-1096

CPSW - 5/8" NC x 6" gr 5

2шт.

131-460

LOCK NUT,5/8"-11

NUT, self locking - 5/8" NC - (Supercedes S17171)

2шт.

3

S46134

PIN,37.95mm OD x 98.55mm L

- (Mounts cylinder to grab arm and frame)

4шт.

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

4шт.

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

4шт.

4

CYLINDER, grab arm - (For breakdown, see page 218)

2шт.

5

S504968

ARM ASSY.

ARM, grab - (Includes items 6, 24 and 39)

2шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT - (Straight)

1шт.

7

S92326

PIN

- (Mounts shear, Serial Range: cylinder-lever)

2шт.

13-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

CPSW - 5/8" NC x 4-1/2" gr 5

2шт.

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

8

S91696

BUSHING

1шт.

9

S602452

LEVER ASSY.

LEVER - (Left hand) - (Includes items 6, 8 and 10)

1шт.

10

178-869

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" NC x 3/8" long

1шт.

11

132-161

COTTER PIN,1/4" x 3 1/2"

Pin, Split (Cotter), 1/4" x 3 1/2"

6шт.

12

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

NUT, slotted - 2" NC

6шт.

13

95-32

WASHER,2 1/8" x 4 1/2" x .179"

flat - 2-1/8"

6шт.

14

S92321

LINK

2шт.

15

S219700

LINK ASSY.

LINK ASSEMBLY

2шт.

16

S219701

PIN ASSY.

PIN - (Mounts lever and shear, Serial Range: arms-link)

4шт.

17

S952914

ARM ASSY.

ARM - (Left hand) - (Includes items 6, 8 and 10)

1шт.

18

S92319

NUT

- 1" NC

12шт.

19

S92320

SHIM

knife back-up

2шт.

20

S219696

KNIFE

shear cutting - 5/8"

2шт.

21

S219697

SUPPORT

cutting knife

2шт.

22

S219698

SUPPORT

cutting knife

2шт.

23

26-1680

BOLT,Hex, 1" - 8 x 5", Gr 8

CPSW - 1" NC x 5" gr 8

12шт.

24

S214652

BUSHING

4шт.

25

S952913

ARM ASSY.

ARM - (Right hand) - (Includes items 6, 8 and 10)

1шт.

26

S952911

GRIPPER

FRAME, Feller Buncher

1шт.

27

S219710

PIN ASSY.

PIN - (Mounts, Serial Range: lever-frame)

2шт.

28

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

29

S219694

BAR, block holder

2шт.

30

S92370

BAR

wear

2шт.

31

S92316

SHIM

wear bar - .060" thick

1шт.

32

S92317

SHIM

wear bar - .125" thick

1шт.

33

S92310

COVER

1шт.

34

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

35

S602451

LEVER ASSY.

LEVER - (Right hand) - (Includes items 6, 8 and 10)

1шт.

36

S88569

SHIM

washer - .090" thick - (Shear arm to frame pin)

1шт.

37

S219699

PIN

- (Mounts, Serial Range: arm-frame)

2шт.

13-1292

BOLT,Hex, 3/4" - 10 x 5-3/4", Gr 5

2шт.

131-450

NUT,3/4"-10

NUT - 3/4" NC

2шт.

38

S88568

SHIM

washer - .060" thick - (Shear arm to frame pin)

1шт.

39

S23796

BUSHING

2шт.
