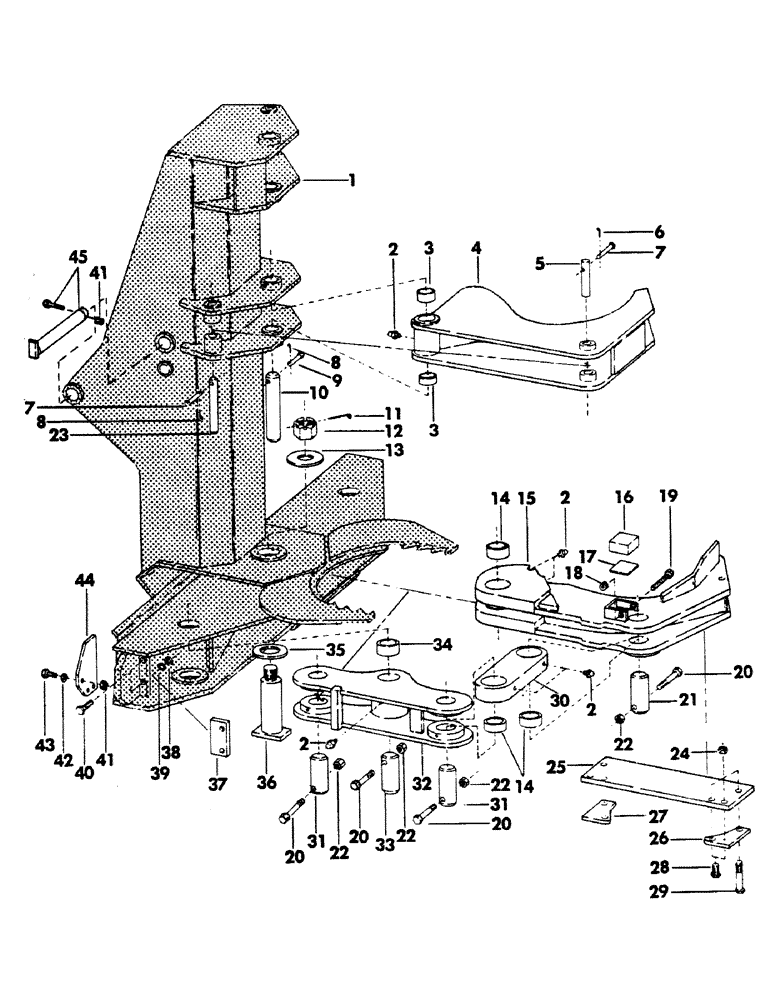

Запчасти Case 40BLC (154) - 16" FELLER BUNCHER AND ATTACHING PARTS (18) - ATTACHMENT ACCESSORIES

1

S952243

FRAME

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT - (Straight)

12шт.

3

S202134

BUSHING

2шт.

4

S502233

ARM, grab - (Includes 2 of item 3)

2шт.

5

S216699

PIN - (Cylinder rod to grab arm)

2шт.

6

A70250

PIN

hair

2шт.

7

S10781

PIN

clevis - 3/8" x 2.391" grip length

4шт.

8

132-48

COTTER PIN,1/8" x 1"

PIN, cotter - 5/32" x 1" long

4шт.

9

S61972

PIN

clevis - 1/2" x 3.266" grip length

2шт.

10

S205348

PIN

- (Grab, Serial Range: arm-frame)

2шт.

11

132-161

COTTER PIN,1/4" x 3 1/2"

Pin, Split (Cotter), (Used with item 12) 1/4" x 3 1/2"

1шт.

12

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

NUT, slotted - 2" NC - (Used with item 36)

1шт.

13

95-32

WASHER,2 1/8" x 4 1/2" x .179"

flat - 2-5/8" - (Used with item 36)

1шт.

14

S202195

BUSHING

6шт.

15

S58594

ARM ASSEMBLY, blade - (Right hand) - (Includes 2 of item 14)

1шт.

S58595

ARM ASSEMBLY, blade - (Left hand) - (Includes 2 of item 14)

1шт.

16

S87847

BAR, wear

2шт.

17

S87843

SHIM - .006" thick - (Illustrated)

1шт.

S87846

SHIM - (Angle shape) - (Not illustrated)

1шт.

18

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

2шт.

19

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

2шт.

20

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

CPSW - 5/8" NC x 6" gr 5

8шт.

21

S211492

PIN - (Blade, Serial Range: arm-link)

2шт.

22

131-79

NUT, self locking - 5/8" NC

8шт.

23

S27349

PIN

- (Grab arm to, Serial Range: cylinder-frame)

2шт.

24

S87763

NUT - 3/4" NC

12шт.

25

S215932

KNIFE, shear cutting - 1/2"

2шт.

26

S213284

SUPPORT, cutting edge - (Right hand)

2шт.

27

S216684

SUPPORT, cutting edge - (Left hand)

2шт.

28

S85827

CPSW - 3/4" NC x 2-1/2" gr 5

4шт.

29

S87757

CPSW - 3/4" NC x 5-1/2" gr 5

8шт.

30

S212933

LINK ASSEMBLY - (Includes 2 of item 14 and 4 of item 2)

2шт.

31

S211493

PIN

- (Lever to link) and, Serial Range: (Lever-cylinder)

4шт.

32

S502235

LEVER ASSEMBLY - (Right hand) - (Includes 2 of item 34)

1шт.

Change in listing

1шт.

S502236

LEVER ASSEMBLY - (Left hand) - (Includes 2 of item 34)

1шт.

Change in listing

1шт.

33

S211494

PIN -, Serial Range: (Lever-frame)

2шт.

34

S202193

BUSHING

4шт.

35

S88568

SHIM

WASHER, flat - .006" thick - (Shim for shear arm top)

1шт.

S88569

SHIM

WASHER, flat - .090" thick - (Shim for shear arm top)

1шт.

36

S213285

PIN ASSEMBLY - (Blade, Serial Range: arm-frame)

1шт.

37

S83276

SPACER - (Used as required to obtain proper shear closing)

4шт.

38

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

39

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

40

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

41

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

5шт.

42

195-33

WASHER,1/2"

flat - 17/32"

3шт.

43

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

3шт.

44

S88031

PLATE, guard

1шт.

45

S213911

PIN

- (Feller Buncher to tool boom and link)

2шт.

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

CPSW - 1/2" NC x 4-1/4" gr 5

2шт.
