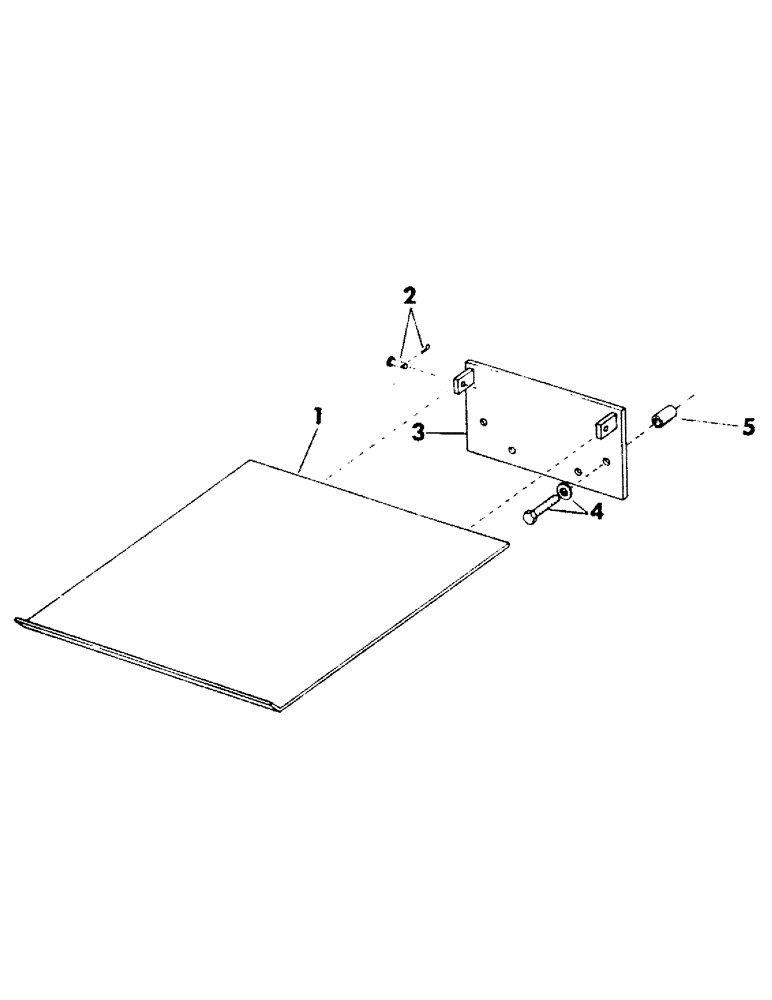

Запчасти Case 40BLC (082) - BOOM GUARD (09) - BOOMS

1

S506467

GUARD ASSEMBLY, boom

1шт.

2

S10805

PIN

clevis - 1/2" x 1.000" grip length

2шт.

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

2шт.

3

S221029

BRACKET

ASSEMBLY

1шт.

4

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

5

S99133

SPACER

4шт.
