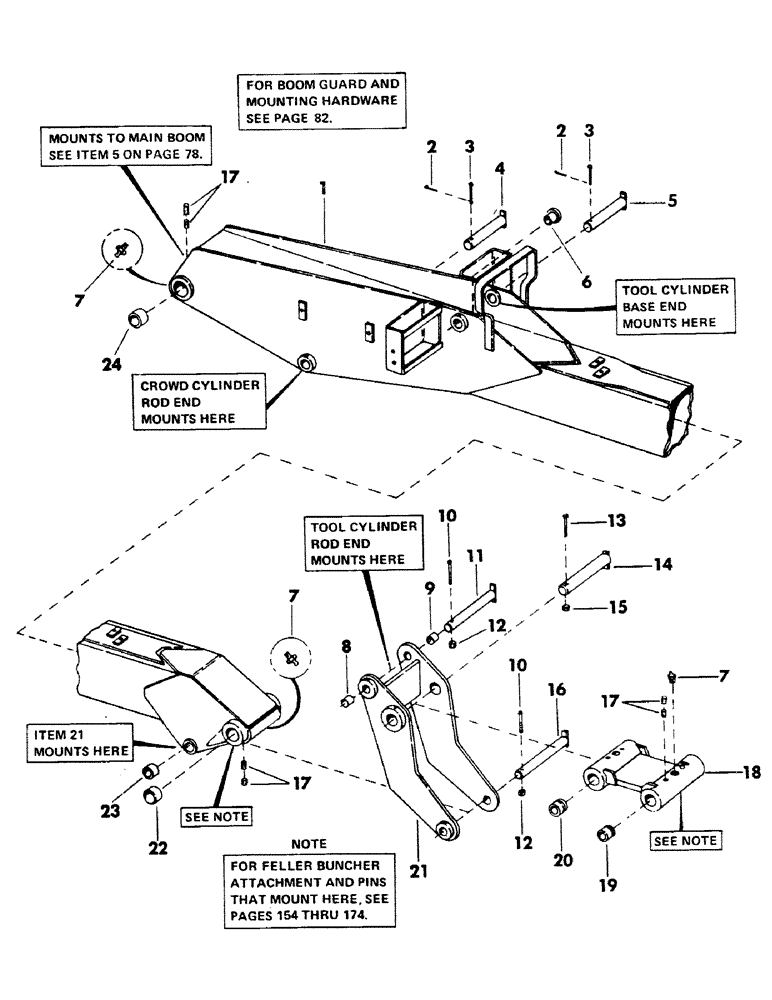

Запчасти Case 40BLC (080) - TOOL BOOM, LINKS AND PINS (09) - BOOMS

1

S609402

BOOM, tool - (Includes items 6, 22, 24, 25 and two of items 7 and 17) - (Used on units with serial number 450 thru 757 with 16" Feller Buncher)

1шт.

S609405

BOOM

tool - (Includes items 6, 22, 24, 25 and two of itmes 7 and 17) - (Used on units with serial number 758 and after with 16" Feller Buncher)

1шт.

S609403

BOOM, tool - (Includes items 6, 23, 24, 25, four of item 17, and two of item 7) - (Used on units with serial number 450 thru 757 with 20" Feller Buncher)

1шт.

S609406

BOOM

tool - (Includes items 6, 23, 24, 25, four of item 17, and two of item 7) - (Used on units with serial number 758 and after with 24" Feller Buncher)

1шт.

S609404

BOOM, tool - (Includes items 23, 24, 25, four of item 17, and two of item 7) - (Used on units with serial number 450 thru 757 with 24" Feller Buncher)

1шт.

S609407

BOOM

tool - (Includes items 23, 24, 25, four of item 17, and two of item 7) - (Used on units with serial number 758 and after with 24" Feller Buncher)

1шт.

2

132-69

COTTER PIN,5/32" x 1"

PIN, cotter - 5/32" x 3/4" long

2шт.

3

S61973

AXLE PIN

PIN, clevis - 1/2" x 3.766" grip length

2шт.

4

S223986

PIN

- (Crowd cylinder rod end to tool boom)

1шт.

5

S210261

PIN

- (Used with 16" and 20" Feller Bunchers)

1шт.

6

S89355

BUSHING

- (Used on tool booms S609402 and S609405 with 16" and 20" Feller Bunchers)

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT - (Straight)

1шт.

8

S89357

SPACER

BUSHING - (Used on brackets S505110 on 16" and 20" Feller Buncher)

1шт.

9

S89356

BUSHING

- (Used on bracket S505110 on 16" and 20" Feller Buncher)

1шт.

10

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

2шт.

11

S201018

PIN

- (Used on brackets S505110 on 16" Feller Buncher and 20" Feller Buncher)

1шт.

Change in listing

1шт.

S204746

PIN

- (Used on bracket S504976 on 24" Feller Buncher)

2шт.

12

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

2шт.

13

26-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

CPSW - 5/8" NC x 6" gr 8

1шт.

14

S89283

PIN

1шт.

15

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

16

S204746

PIN

- (Bracket to tool boom)

1шт.

17

78-869

SCREW, set - (Used with S87929M1 and S88549 bushings)

1шт.

18

S218552

LINK

- (Includes items 19 and 20) - (Used with 16" Feller Buncher)

1шт.

S219021

LINK - (Includes items 19 and 20) - (Used with 20" and 24" Feller Buncher)

1шт.

19

S89466

BUSHING - (Used with link S218552 on 16" Feller Buncher)

2шт.

20

S87929

BUSHING

- (Used with link S219021 and 20" and 24" Feller Buncher)

2шт.

21

S505110

BRACKET - (Includes items 8 and 9) - (Used with 16" and 20" Feller Buncher)

1шт.

S504976

BRACKET

- (Includes items 8 and 9) - (Used with 24" Feller Buncher)

1шт.

22

S89466

BUSHING - (Used on tool booms S609402 and S609405 with 16" Feller Buncher)

2шт.

S87929

BUSHING

- (Used on tool booms S609402 and S609405 with 20" and 24" Feller Bunchers)

4шт.

23

S202134

BUSHING

2шт.

24

S210602

BUSHING,63.42mm ID x 76.31mm OD x 50.8mm L

- (Used on units with serial number 450 thru 757)

4шт.

S88549

BUSHING

- (Used on units with serial number 758 and after)

2шт.
