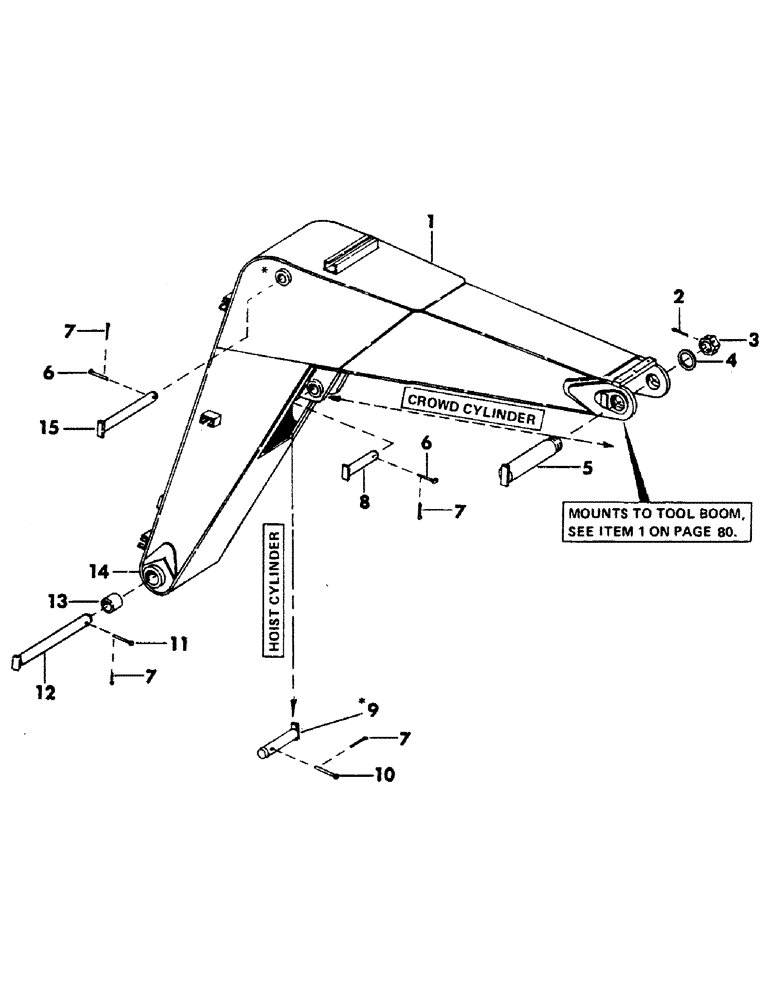

Запчасти Case 40BLC (078) - MAIN BOOM AND PINS (09) - BOOMS

1

S952738

BOOM

main - (Includes items 13 and 14) - (Used on units with serial number 450 thru 757)

1шт.

S953943

BOOM, main - (Includes items 13 and 14) (Used on units with serial number 758 and after)

1шт.

2

132-161

COTTER PIN,1/4" x 3 1/2"

Pin, Split (Cotter), (Used on units with serial number 450 thru 757) 1/4" x 3 1/2"

1шт.

132-191

COTTER PIN,5/16" x 4"

Pin, Split (Cotter), (used on units with serial number 758 and after) 5/16" x 4"

1шт.

3

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

NUT - 2" NC - (Used on units with serial number 450 thru 757)

1шт.

129-239

NUT - 2-1/2" NC - (Used on units with serial number 758 and after)

1шт.

4

95-40

WASHER,2 1/2" x 5" x .238"

flat - 2-5/8"

1шт.

5

S220250

PIN ASSY.

PIN - (Main boom to tool boom) - (Used on units with serial number 450 thru 757)

1шт.

S217500

PIN ASSY.

PIN - (Main boom to tool boom) - (Used on units with serial number 758 and after)

1шт.

6

S61973

AXLE PIN

PIN, clevis - 1/2" x 3.766" grip length

2шт.

7

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

8

S223986

PIN

- (Crowd cylinder base end to main boom) - (Used on units with serial number 450 thru 757)

1шт.

S208704

PIN

- (Crowd cylinder base end to main boom) - (Used on units with serial number 758 and after)

1шт.

9

S223986

PIN

- (Hoist cylinder base, Serial Range: end-turntable)

1шт.

Change in listing

1шт.

10

S61971

CLEVIS PIN,15.88mm OD x 80.16mm L

PIN, clevis - 1/2" x 4.266" grip length

1шт.

11

S61976

CLEVIS PIN

PIN, clevis - 5/8" x 4.516" grip length

1шт.

12

S201023

PIN

- (Main, Serial Range: boom-turntable)

1шт.

13

S210602

BUSHING,63.42mm ID x 76.31mm OD x 50.8mm L

2шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT - (Straight)

1шт.

15

S208517

PIN ASSY.

PIN - (Hoist cylinder rod end to main boom)

1шт.
