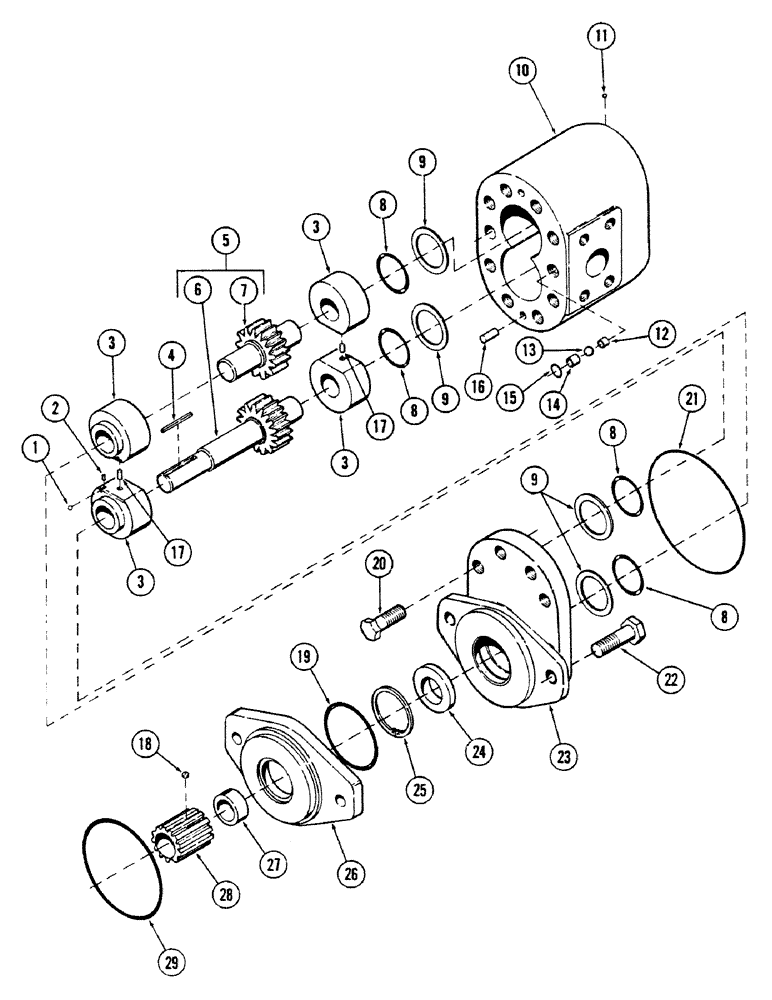

Запчасти Case 40BLC (336) - MOTOR AND PUMP ASSEMBLY, (USED WITH ROTARY CUTTER) (07) - HYDRAULIC SYSTEM

S608925

MOTOR AND PUMP ASSEMBLY

1шт.

S233568

MOTOR

ASSEMBLY - (For breakdown, see page 334)

1шт.

S233569

PUMP

ASSEMBLY

1шт.

1

S110684

BALL

4шт.

2

S110678

PIN, roll

4шт.

3

S110656

BUSHING

4шт.

4

S110664

KEY

1шт.

5

S233573

GEAR-SET

GEAR SET

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR, drive

1шт.

7

NSS

NOT SOLD SEPARAT

GEAR, idler

1шт.

8

S110683

O-RING

"O" RING, bushing

4шт.

9

S110675

BACK-UP RING

RING, back-up

4шт.

10

S233571

BODY

1шт.

11

S77965

BALL

1шт.

Change in listing

1шт.

12

S110666

RETAINER

2шт.

13

S13031

BALL

2шт.

14

S110665

SEAT

2шт.

15

S110682

O-RING

"O" RING, drain

2шт.

16

S110677

DOWEL

body

2шт.

17

S110676

DOWEL

bushing

2шт.

18

S110660

SET SCREW

SCREW, set

1шт.

19

S110680

O-RING

"O" RING

1шт.

20

S110661

CAPSCREW

CPSW

8шт.

21

S110681

O-RING,-149, 90 Duro, 2.8" ID x .103" Thk

"O" RING

1шт.

22

S110685

BOLT

CPSW -, Serial Range: (Adapter-flange)

2шт.

23

S110674

FLANGE

1шт.

24

S110662

SEAL

1шт.

25

S110663

RING, SNAP

1шт.

26

S110658

ADAPTER

1шт.

27

S110659

SPACER

1шт.

28

S110657

COUPLING

1шт.

29

S110673

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING

1шт.

30

S233575

KIT

seal - (Consists of items 8, 9, 15, 19, 21, 24 and 29)

1шт.
