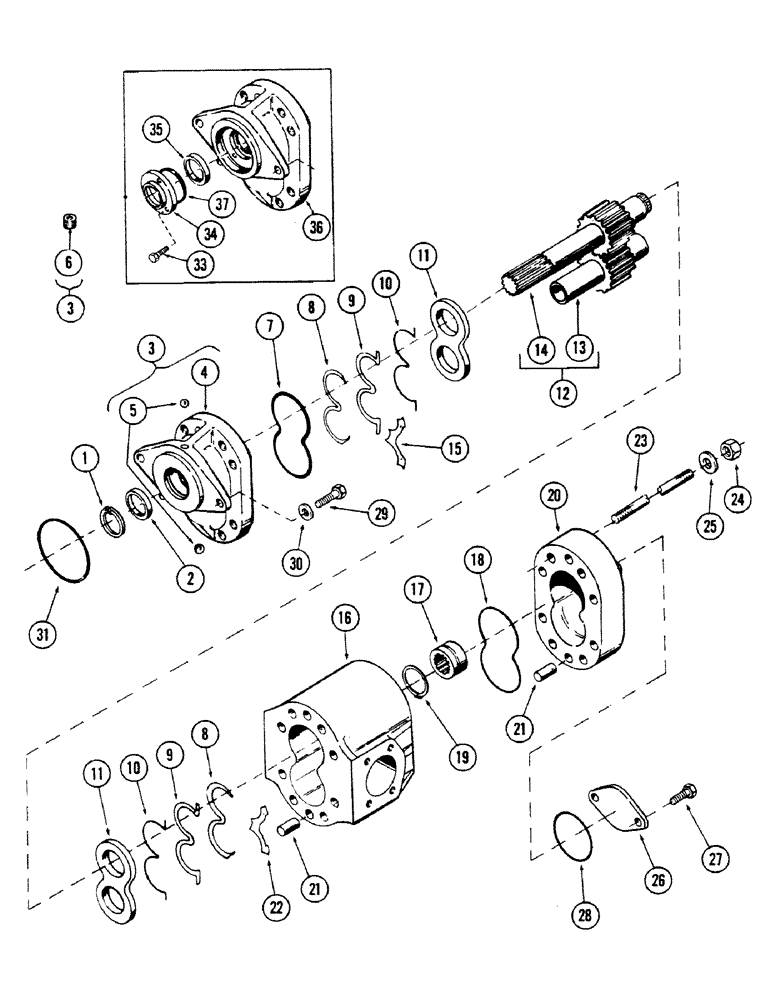

Запчасти Case 40BLC (334) - MOTOR AND PUMP ASSEMBLY, (USED WITH ROTARY CUTTER) (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
S608925
MOTOR AND PUMP ASSEMBLY
1шт.
S233569
PUMP
ASSEMBLY - (For breakdown, see page 336)
1шт.
S235757
MOTOR
ASSEMBLY - (Supersedes S233568)
1шт.
1
D41419
RING
snap
1шт.
2
S98646
SEAL
1шт.
3
S116431
FLANGE ASSY
FLANGE ASSEMBLY
1шт.
4
NSS
NOT SOLD SEPARAT
FLANGE
1шт.
S109040
BUSHING
- (Not illustrated)
2шт.
5
NSS
NOT SOLD SEPARAT
BALL
2шт.
6
S907049
PLUG
1шт.
7
A27384
O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro
"O" RING
1шт.
8
S108490
OIL SEAL
RING, retainer
2шт.
9
S108892
BACK-UP RING
RING, back-up
2шт.
10
S108891
SEAL
"O" RING
2шт.
11
S110653
PLATE
pressure
2шт.
12
S233572
GEAR SET
1шт.
13
NSS
NOT SOLD SEPARAT
GEAR, idler
1шт.
14
NSS
NOT SOLD SEPARAT
GEAR, drive
1шт.
15
S108894
PLATE
isolation - top
1шт.
16
S233570
BODY
1шт.
S109040
BUSHING
- (Not illustrated)
2шт.
17
S110669
COUPLING
spline
1шт.
18
L35782
O-RING,0.103" Thk x 4.487" ID, -157, Cl 6, 90 Duro
"O" RING
1шт.
19
A36277
SNAP RING,1.125", Int, #112
1шт.
20
S110652
HOUSING
PLATE, transition
1шт.
21
D41414
PIN
DOWEL
4шт.
22
S108893
PLATE
isolation - bottom
1шт.
23
S110670
STUD
8шт.
24
86637932
JAM NUT,Jam, 5/8"-18, G5
NUT - 5/8" NF
8шт.
25
S98714
WASHER
flat - 5/8"
8шт.
26
S110671
PLATE
1шт.
27
S110672
CPSW
2шт.
28
S110673
O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro
"O" RING
1шт.
29
S2502
BOLT (MACHINE)
CPSW - 5/8" NC x 1-1/2" gr 5 - (Mounts, Serial Range: flange-adapter)
2шт.
30
S75054
WASHER
flat - 5/8"
2шт.
31
S6523
O-RING,-159, 90 Duro, 4.977" ID x .103" Thk
"O" RING - 4.987" ID x 5.187" OD
1шт.
32
S114268
KIT
seal (Consists of items 2 and 7)
1шт.
33
S98780
CPSW - 1/4" NC x 5/8"
3шт.
34
S110667
PLATE, seal
1шт.
35
S98646
SEAL
1шт.
36
FLANGE - (Order S116431 (Item 3) and D41419 snap ring (Item 1))
1шт.
37
S5633
O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro
"O" RING - 2.864" ID x 3.000" OD
1шт.
Выбрано товаров: 42
