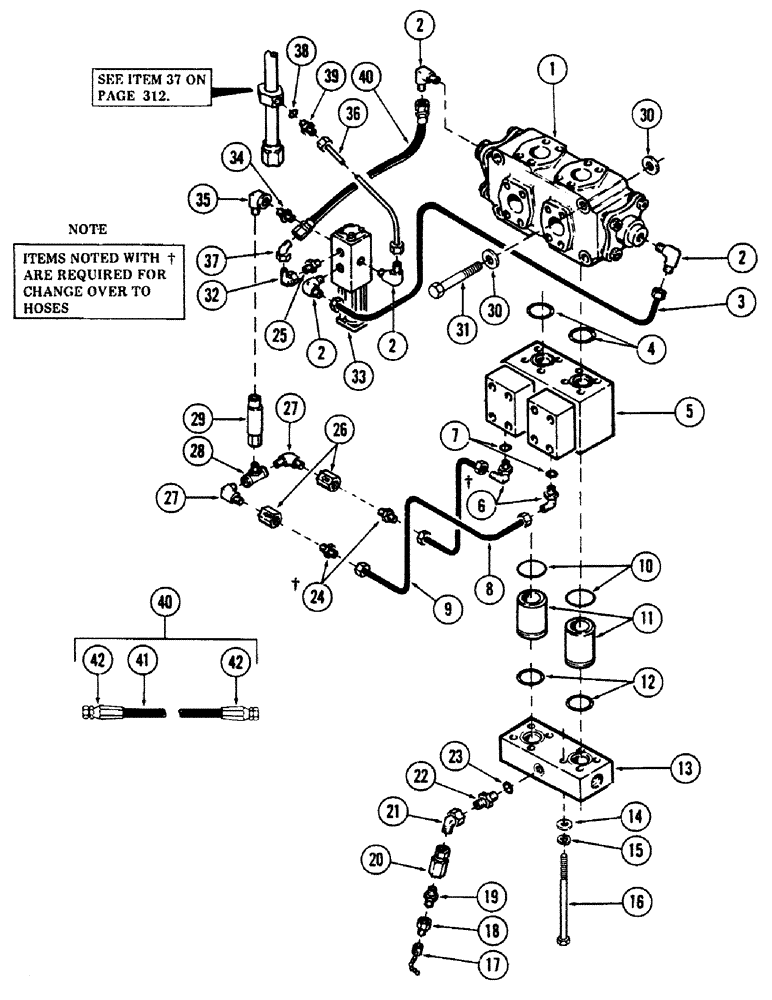

Запчасти Case 40BLC (328) - ROTARY CUTTER HYDRAULICS, (USED WITH ROTARY CUTTER) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE, diverting - (For breakdown, see page 352)

1шт.

2

S63422

ELBOW

90 degree adapter - (1/4" tube) - 7/16" - 20 male x 1/4" NPT male - 37 degree flared

4шт.

3

S73640

HOSE

high pressure - 3/16" ID x 29" long - (With 7/16" - 20 female pressed on couplings)

1шт.

4

S6315

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

"O" RING - 1.859" ID x 2.125" OD

2шт.

5

S511380

ADAPTER

1шт.

6

S64375

FITTING

ELBOW, 90 degree adjustable - (3/8" tube) - 7/16" - 20 male x 9/16" - 18 male - 37 degree flared

2шт.

7

S6057

O-RING

"O" RING - .351" ID x .495" OD

2шт.

8

S77121

HOSE

high pressure - 1/4" ID x 20" long - (With 9/16" - 18 female pressed on couplings)

1шт.

9

S77121

HOSE

high pressure - 1/4" ID x 20" long - (With 9/16" - 18 female pressed on couplings)

1шт.

10

S18138

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

"O" RING - 2.122" ID x 2.312" OD

2шт.

11

S108792

VALVE, check

2шт.

12

S6313

O-RING

"O" RING - 1.609" ID x 1.875" OD

2шт.

13

S511381

ADAPTER

1шт.

14

S86132

WASHER

flat - 1/2"

8шт.

15

S4399

WASHER

lock - 1/2"

8шт.

16

S88711

CPSW - 1/2" NC x 8" gr 5

8шт.

17

S206608

CAP

dust

1шт.

18

S206607

DISC

ONNECT, quick

1шт.

19

S62655

NIPPLE, LUBE

ADAPTER - 1/4" NPT male x 1/4" NPT male

1шт.

20

S108815

ADAPTER

- 1/4" NPT female x 9/16" - 18 female - 37 degree flared

1шт.

21

S9489

ELBOW

45 degree swivel - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 - 37 degree flared

1шт.

22

S7961

CONNECTOR, ELEC

ADAPTER - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male - 37 degree flared

1шт.

23

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .468" ID x .624" OD

1шт.

24

S60835

ADAPTER

- (3/8" tube) - 1/4" NPT male x 9/16" - 18 male - 37 degree flared

2шт.

25

S101303

ADAPTER

- (1/4" tube) - 7/16" - 20 male x 1/4" NPT

1шт.

26

S110789

VALVE

check - (Supersedes S229044)

2шт.

27

S106661

ELBOW

90 degree - 1/4" NPT male x 1/4" NPT male

2шт.

28

S62673

TEE

- 1/4" NPT male x 1/4" NPT female x 1/4" NPT female

1шт.

29

S229047

VALVE

check

1шт.

30

S7401

WASHER, flat - 5/8"

6шт.

31

S2515

BOLT (MACHINE)

CPSW - 5/8" NC x 4-3/4" gr 5

3шт.

32

S10354

ELBOW

90 degree swivel - (1/4" tube) - 7/16" - 20 male x 7/16" - 20 female - 37 degree flared

1шт.

33

S509949

VALVE, solenoid

1шт.

Change in listing

1шт.

34

S62655

NIPPLE, LUBE

ADAPTER - 1/4" NPT male x 1/4" NPT male

1шт.

35

S17524

ELBOW

90 degree - 1/4" NPT male x 1/4" NPT female

1шт.

36

S232136

TUBE ASSY.,0.25" OD x 7.18, 1.78" L

LINE, hydraulic

1шт.

37

700711969

ELBOW,45 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

45 degree swivel - (1/4" tube) - 7/16" - 20 male x 7/16" - 20 female - 37 degree flared

1шт.

38

S7957

FITTING

ADAPTER - (1/4" tube) - 7/16" - 20 male x 7/16" - 20 male - 37 degree flared

1шт.

39

S6057

O-RING

"O" RING - .351" ID x .495" OD

1шт.

40

S73640

HOSE

high pressure - 3/16" ID x 29" long

1шт.

41

S65974

HOSE, high pressure - 1 piece - 3/16" x 26" long

1шт.

42

S9458

COUPLING, reusable - 7/16" - 20 female - 37 degree flared

2шт.
