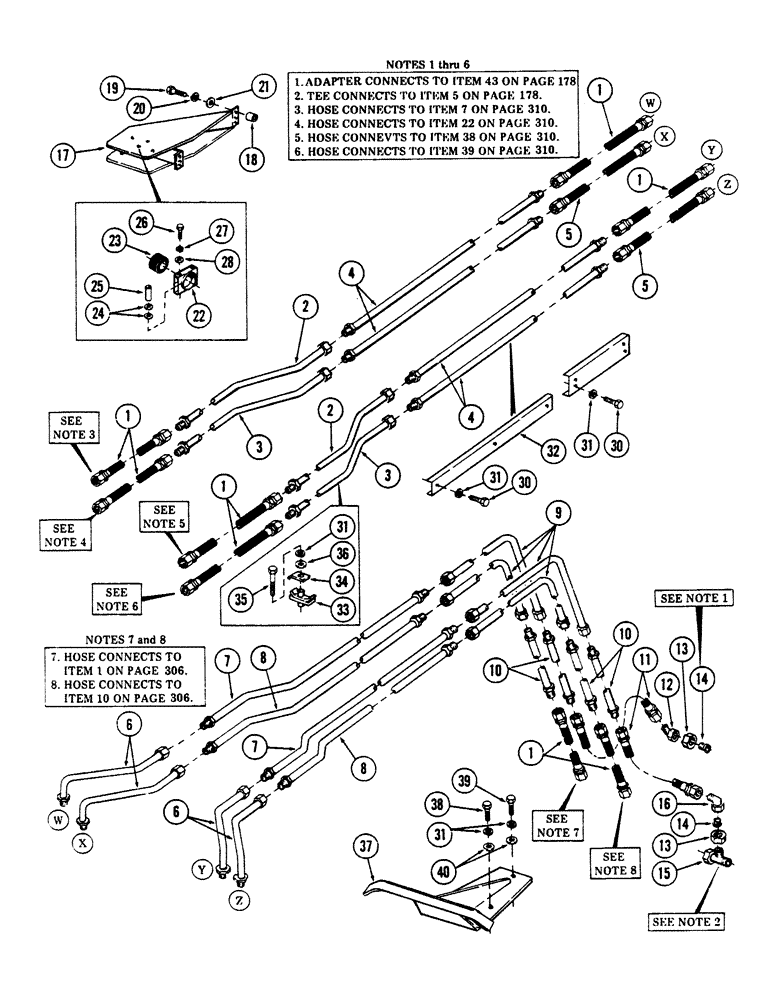

Запчасти Case 40BLC (308) - AUXILIARY HYDRAULICS FROM BOOM TO ROTARY CUTTER, (USED WITH ROTARY CUTTER) (07) - HYDRAULIC SYSTEM

1

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

8шт.

2

S229654

LINE, hydraulic 1.25" OD x 30.5, 5.69" L

2шт.

3

S229655

LINE, hydraulic 1.25" OD

2шт.

4

S229653

LINE, hydraulic 1.25" OD x 82" L

4шт.

5

S78472

HOSE, high pressure - 1" ID x 46" long - (With 1-5/16" - 12 female pressed on couplings)

2шт.

6

S211907

TUBE ASSY.,1.25" OD x 20, 5.75" L

LINE, hydraulic

4шт.

7

S510368

TUBE ASSY.,1.25" OD x 61.5, 3.88" L

LINE, hydraulic

2шт.

8

S502566

TUBE,1.25" OD x 58, 3.26" L

LINE, hydraulic

2шт.

9

S501696

TUBE ASSY.,1.25" OD x 13.92, 7.55" L

LINE, hydraulic

4шт.

10

S211941

TUBE ASSY.,1.25" OD x 63" L

LINE, hydraulic

4шт.

11

S8626

HOSE ASSY.

HOSE, high pressure - 1" ID x 60" long - (With 1-5/16" - 12 female pressed on couplings)

2шт.

12

S9494

ELBOW

45 degrees swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degrees flared

1шт.

13

S6280

NUT

reducing - (1-1/4" tube) - 1-5/8" - 12 female - 37 degrees flared

2шт.

14

S101837

REDUCER

ADAPTER, reducing - (1-1/4" to 1" reduction) - 1-5/16" - 12 male - 37 degrees flared

2шт.

15

S60466

TEE

- (1-1/4" tube) - 1-5/8" - 12 female x 1-5/8" - 12 male x 1-5/8" - 12 male - 37 degrees flared

2шт.

16

S10361

ELBOW

90 degrees swivel - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degrees flared

1шт.

17

S510365

BRACKET

2шт.

18

S89102

SPACER

4шт.

19

S2466

BOLT

CPSW - 1/2" NC x 1-1/4" gr. 5

6шт.

S2471

BOLT

CPSW - 1/2" NC x 2-1/2" gr. 5

6шт.

20

S4399

WASHER

lock - 1/2"

12шт.

21

S7392

WASHER

flat - 1/2"

12шт.

22

S106643

CLAMP

4шт.

23

S106646

BUSHING

split

4шт.

24

S108511

SPACER

4шт.

25

S106647

TUBE NUT

NUT

8шт.

26

S2404

BOLT (MACHINE)

CPSW - 3/8" NC x 1-3/4" gr. 5

16шт.

27

S4397

WASHER

lock - 3/8"

16шт.

28

S2385

BOLT

WASHER, flat - 3/8"

16шт.

29

S229657

CHANNEL

BRACKET

2шт.

30

S2469

BOLT

CPSW - 1/2" NC x 2" gr. 5

14шт.

31

S4399

WASHER

lock - 1/2"

19шт.

32

S229656

CHANNEL

BRACKET

2шт.

33

S232081

CLAMP

BRACKET

2шт.

34

S106387

CLAMP

2шт.

35

S2480

CPSW - 1/2" NC x 2-1/4" gr. 5

2шт.

36

S7392

WASHER

flat - 1/2"

2шт.

37

S510366

BRACKET

1шт.

38

S4136

BOLT

CPSW - 1/2" NC x 1-3/8" gr. 5

2шт.

39

S2469

BOLT

CPSW - 1/2" NC x 2" gr. 5

1шт.

40

S86132

WASHER

hardened flat - 1/2"

3шт.
