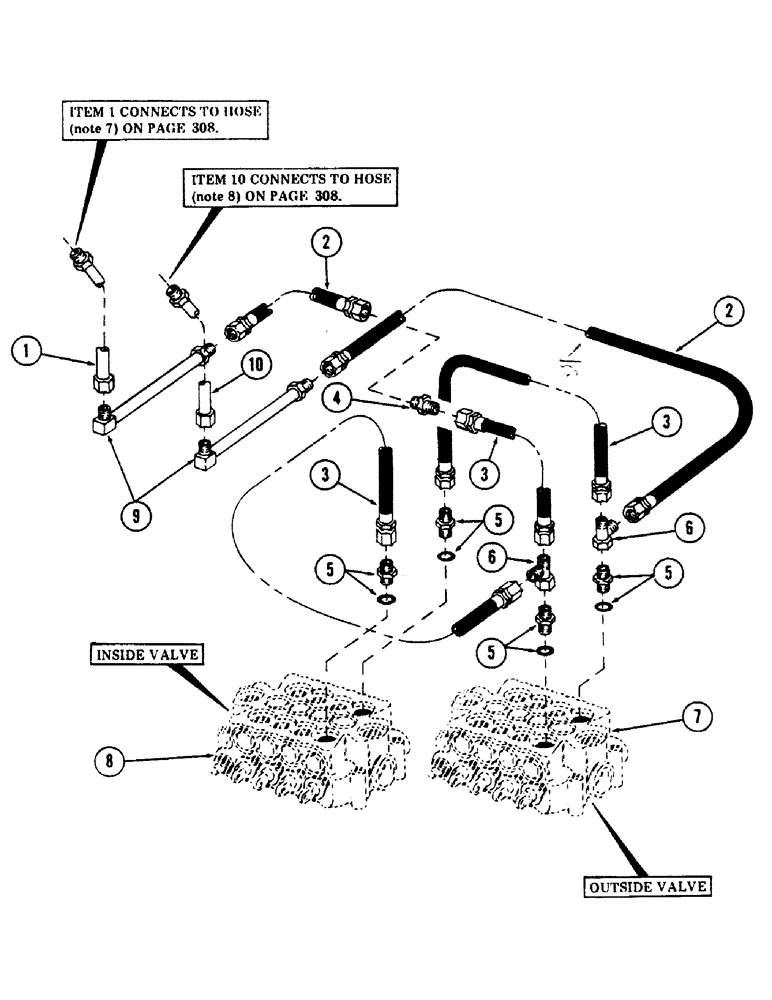

Запчасти Case 40BLC (306) - AUXILIARY HYDRAULICS FROM MAIN CONTROL VALVES TO BOOM, (USED WITH ROTARY CUTTER) (07) - HYDRAULIC SYSTEM

1

S211849

LINE,1.25" OD

hydraulic

1шт.

2

S87253

HOSE

high pressure - 1" ID x 58" long - (With 1-5/16" - 12 female pressed on couplings)

2шт.

3

S8628

HOSE

high pressure - 1" ID x 36" long - (1-5/16" - 12 female pressed on couplings)

3шт.

4

S101338

UNION

- (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degree flared

1шт.

5

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degree flared

4шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

4шт.

6

S60464

TEE

- (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degree flared

2шт.

7

VALVE, 4-spool main control - (For breakdown, see page 260)

1шт.

8

VALVE, 4-spool main control - (For breakdown, see page 258)

1шт.

9

S217642

LINE, hydraulic 1.25" OD x 5.62" L

2шт.

10

S211849

LINE,1.25" OD

hydraulic

1шт.
