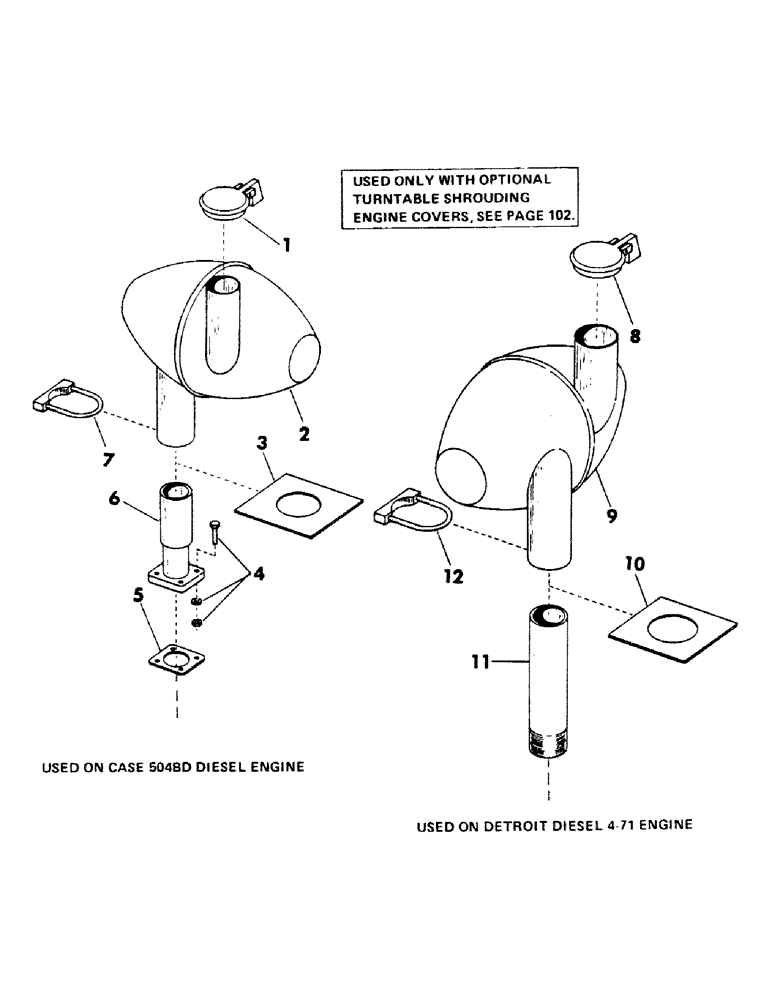

Запчасти Case 40BLC (046) - OPTIONAL MUFFLER AND SPARK ARRESTOR, (USED ON UNITS WITH SN. 450 THRU 759) (01) - ENGINE

1

A19795

CAP

pipe

1шт.

2

S221465

MUFFLER - (With spark arrestor)

1шт.

3

S94859

INSULATOR, muffler - (Supersedes S94860)

1шт.

4

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

5

S87740

GASKET

1шт.

6

S221467

FLANGE, exhaust assembly

1шт.

7

L12413

CLAMP

muffler

1шт.

8

S93398

CAP

pipe

1шт.

9

S221466

MUFFLER

- (With spark arrestor)

1шт.

10

S94859

INSULATOR, muffler

1шт.

11

S221468

ADAPTER, muffler

1шт.

12

S92543

CLAMP, muffler

1шт.
