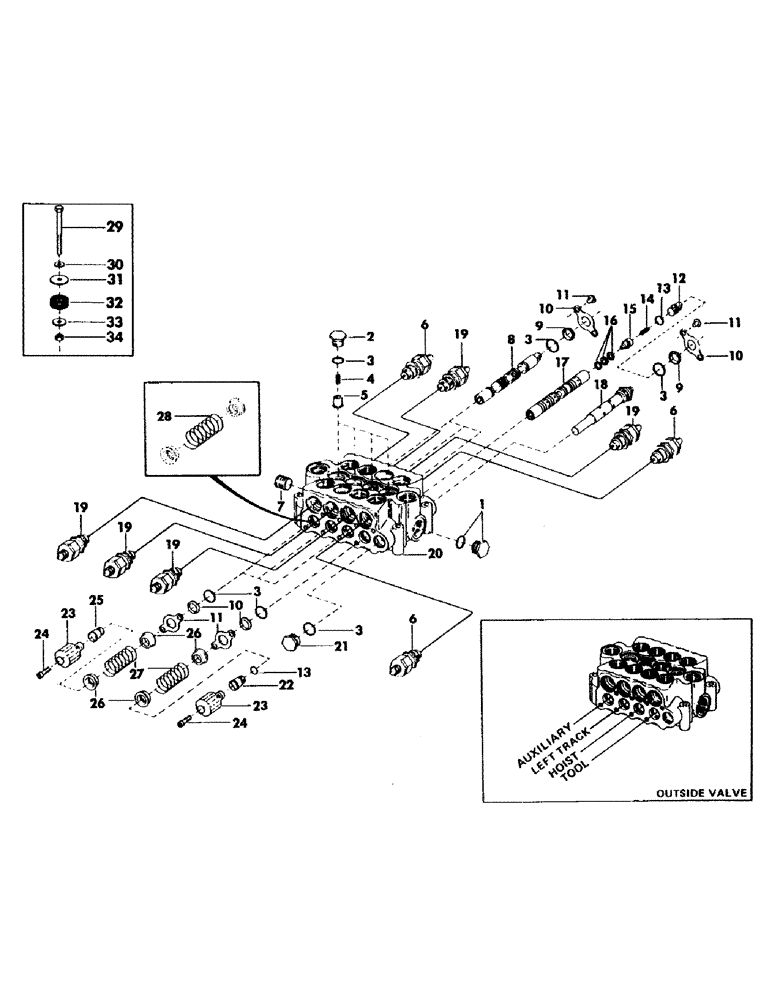

Запчасти Case 40BLC (260) - 4-SPOOL MAIN CONTROL VALVE, (USED WITH TOOL, HOIST, LEFT TRACK AND AUXILIARY CIRCUITS) (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
S509864
VALVE, 4-spool main control - complete (Consists of items 1 thru 28) - (Supersedes S506380)
1шт.
1
S62190
PLUG
includes "O" ring
1шт.
S6069
O-RING,1.171" ID x 0.116" Width
"O" RING - 1.171" ID x 1.403" OD
1шт.
2
S13714
PLUG
4шт.
3
S5807
O-RING,0.984" ID x 1.262" OD x 0.139"
"O" RING - .984" ID x 1.250" OD
13шт.
4
S13715
SPRING
4шт.
5
S13716
VALVE POPPET
POPPET
4шт.
6
S81689
VALVE
CARTRIDGE, relief valve - set at 3000 PSI - (For breakdown, see page 263)
1шт.
7
221-845
PLUG,Hex Soc, 3/4"-14
pipe - 3/4" NPT
1шт.
8
NSS
NOT SOLD SEPARAT
PLUNGER
3шт.
9
S62092
WIPER
8шт.
10
S13829
PLATE
SEAL
8шт.
11
166-25
12 PT SCREW,Flg, 5/16" - 18 x 7/8", Gr 8
SCREW, machine - 3/8" NC x 1/2"
8шт.
12
S62289
END
plunger
1шт.
13
S6061
O-RING,0.639" ID x 0.09" Width
"O" RING - .644" ID x .818" OD
2шт.
14
S62189
SPRING
1шт.
15
S62291
VALVE POPPET
POPPET
1шт.
16
S7886
BACK-UP RING
RING, back up
3шт.
17
NSS
NOT SOLD SEPARAT
PLUNGER
1шт.
18
CARTRIDGE, main relief - set at 2500 PSI - (For breakdown, see page 262)
1шт.
19
CARTRIDGE, port relief - set at 2500 PSI - (For breakdown, see page 263)
5шт.
20
NSS
NOT SOLD SEPARAT
HOUSING
1шт.
21
S13707
PLUG
1шт.
22
S62290
BOLT
CPSW, special
1шт.
23
S62278
CAP
plunger
4шт.
24
61-616
HEX SOC SCREW,3/8"-16 x 1"
CPSW, socket head - 3/8" NC x 1" gr 8
8шт.
25
S62292
BOLT
CPSW, special
3шт.
26
S62288
SEAT
spring
8шт.
27
S104822
SPRING
- (Supersedes S62269)
3шт.
Change in listing
1шт.
28
S81915
VALVE SPRING
SPRING
1шт.
29
BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5
Mounts valve to turntable Hex, 1/2"-13 x 4 3/4", G5
4шт.
30
195-105
WASHER,7/16"
flat - 1/2"
4шт.
31
195-105
WASHER,7/16"
flat - 1/2"
4шт.
32
S49527
MOUNTING PARTS
MOUNT, lord
4шт.
33
95-8
WASHER,1/2"
flat (9/16") 1/2"
4шт.
34
131-70
NUT,1/2"-13, GB
NUT, self locking - 1/2" NC
4шт.
Выбрано товаров: 37
